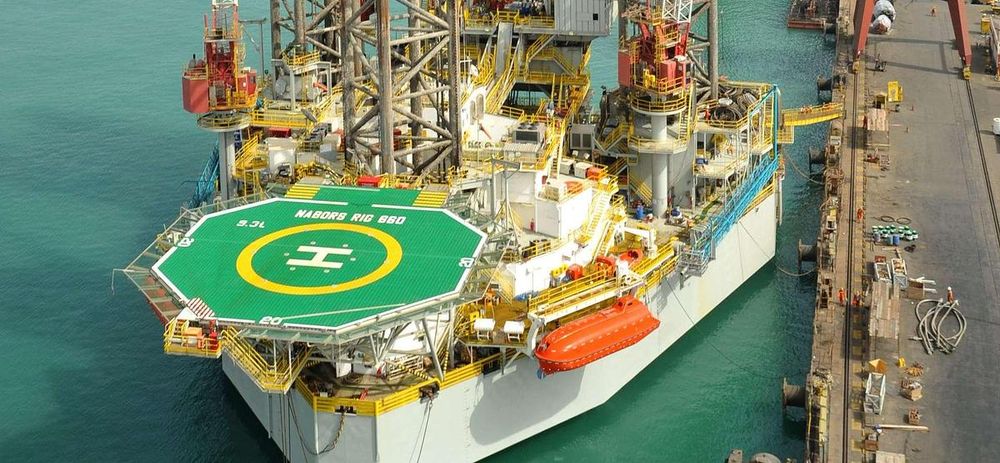

3000 HP AC Electric Jack up Rig Jack up Refurbished in 2008

3000 HP AC Electric Jack up Rig
Refurbished in 2008
Manufactured in 1971

Rig Type: Jack up
Class: Levingston 111-S
Rating: 3000 HP

Hook load: 1,500,000 lbs w / 16 lines
Drilling Depth: 25,0000 ft w /5.5 in DP
Drive System: AC Electric

Refurbished in: 2008
Mast Model: Loadmaster
Type: Offset Rotary derrick
Height: 160 Ft
Drawworks: Academy Commander 3000
Drilling line: 1 5/8 in
Auxiliary Brake: Eaton WCSB
Rotary table: Contienetal Emsco T-4950

POWER GENERATION
Engine Type Caterpillar 3516B
Horsepower Rating Five (5) x 1855 HP
Generators Five (5) x 1365 KW Kato
VFD System OMRON VFD system

MUD PUMPS
Model/Quantity Three (3) x National 12-P-160
Horsepower Rating 1600 HP
Working Pressure 7500 Psi

STORAGE CAPACITIES / SOLIDS CONTROL
Mud system volume 4125 bbl.
Drill water storage 5836 bbl.
Potable water storage 3219 bbl.
Bulk storage tanks 4500 ft3
Cement tanks 4500 ft3
Shale Shakers Four (4) x Derrick FLC-514
Mud Cleaner One (1) x Derrick FLC-504

WELL CONTROL
Annular Preventer As required
Ram Preventer As required
Choke manifold 3 1/16” – 15000 psi

CRANES
Two (2) SeaTrax Series 60, capacity: 55 tons @25ft radius
One (1) American Aero OM-900 capacity: 29.5 ton @25ft radius

ADDITIONAL EQUIPMENT
Auto Driller – Canrig®
Living Quarters for 110 POB
