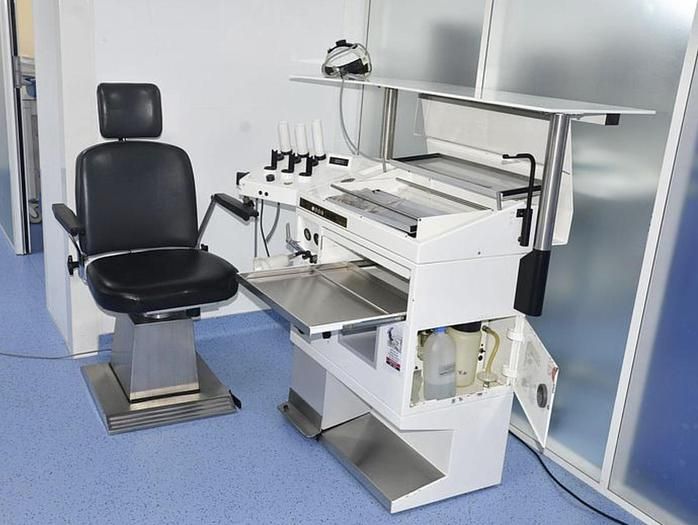

3003 Essen

Manufacturer OTOPRONT
• Construction 2.5 mm steel housing, 8 –20 mm PUR top
• Overall dimensions: 1090 x 510 x 920 mm (Lx W xH)
• Weight: 110 kg
• Light source 2 outlets, : 150 W
• Suction motor 32 l. /min., 90% max. vacuum
• Compressor: 0.1 to 4 bar
• Liquid bottle 1.5 ltr. disposable or reusable
• Separate drainage pump for discharging liquid bottles
Cold light source
The light intensity is adjustable from 50 to 150 Watt and
always ensures a low light temperature and long lamp life.
Each socket uses a bulb so that independent use of the outlets is possible.
The endoscopy chimes The warming shells and the disinfection shells
are placed in the extension arm so that ergonomic access to
the scopes is guaranteed.
The compressed air unit includes 3 spray bottles in different colors.
The bottles are housed in black quivers to protect the liquid from
light and thus crystallization. Under the spray bottles,
the low-voltage connectors for electrocautery, diaphanoscope,
Frenzel glasses or electro head light are located.
The voltage connectors with the rheostat allow 0-6 V, 6-17 V, 2 A and
0-6 V, 10 A.
The large instrument surface, drawers and desk surface are equipped with
a shelf, which can be easily removed for cleaning or exchange.
In addition, the shelves are organized with a set of
stainless steel dividers with a brushed surface for
the instrument compartment. A specially designed drawer allows
the integration of the high-frequency coagulation device into the ORL 3003.
A plastic shelf next to the coagulation device provides space for the
knife and forceps, so that easy access is guaranteed.
Water filtration system The water filter is under the extension.
It is integrated into a second heating system (to heat the water in
the filter), and it is easy to connect or disconnect via a click.
All parts, filter cartridge, are made of stainless steel, water tube and
handle and are autoclavable to guarantee quality water without
contamination (eggionelosis and pseudomonas.)
The filter cartridge can be reused and autoclaved several times.
Pipe aspirator A must for every ENT unit.
Protects the suction tube from clogging and disinfects the
suction between examinations.
The cone-shaped adapters allow the cleaning of tubes and
pipes of different diameters.
Due to their steel structure and chrome-plated surface,
the adapters are easy to clean and autoclave.
Waste container and drawer made of melamine
The 3003 L allows easy access to the waste container and melamine foot,
drawer for used instruments.
Compressed air unit, continuously adjustable from
0.1 to 4.0 bar (spray / politzer), fine regulation handpiece,
pressure limiter,3 spray bottles in different colors,
front nozzles in two different diameters.
This system contains a 1.5 ltr. tank for compressed air,
so that the compressor is only refilled 4 to 5 times a day.
The compressor is completely separate from the suction unit,
silently motorized and maintenance-free.
The chrome-plated steel handle is adjustable Hot water flushing device
This unit is equipped with a sophisticated water filter
The water is heated in a 1.5 ltr. stainless steel tank to prevent mineral build-
up Two thermostat controls allow precise temperature adjustment
(normally 38 °C). The water handle itself is made of chrome-plated metal
and therefore autoclavable.
Cold water irrigation By pressing a button on the front panel,
the water changes its temperature to cold Motor suction unit
A powerful but quiet suction unit: 90% max. vacuum with 32 ltr. /min.
is connected to the suction tube with on/off switch
and retraction mechanism inside the unit, when not in use.
The system is equipped with a bacterial filter, double fuse overflow
control Mirror preheater The mirror preheater is inside the large surface of
the instrument under a plexiglass with dust cover. It offers space for
more than 50 mirrors of different sizes. A thermostat controls the heating of
the mirrors to the body temperature and thus protects the mirrors from
fogging. Dust removal mirrorIt offers space for more than 50 mirrors of
different sizes. A thermostat controls the heating of the mirrors to
the body temperature and thus protects the mirrors from fogging.
Dust removal mirrorIt offers space for more than 50 mirrors of
different sizes. A thermostat controls the heating of the mirrors to
the body temperature and thus protects the mirrors from fogging.
Dust removal mirror
