30m Tugboat with 40 TBP Gross Tonnage 338

Length 29.95 m
Breadth 9.75 m
Draft 3.35 m
Depth 4.70 m
Net Tonnage 102
Crew Complement 10
Total Power Output 3200 HP
Main Engines 2 x Cummins KTA 50M2 – 1600 BHP @ 1800 RPM
Generators 2 x Cummins 6BT5-9-D(M) 78 kW @ 1500 RPM
Gearboxes 2 x Reintjes WAF 665, ratio 5.95:1
Bow Thrusters 2 x hydraulic tunnel thruster
Bollard Pull 40 tonnes
Speed 11 knots
Propulsion 2 x 4-bladed propeller
Shafts 2 x sea water lubricated shaft
Rudders 2 x Becker Flap Rudder
Fuel Oil Capacity 216 m³
Ballast Tank Capacity 70 m³ (fresh water)
Fresh Water Capacity 32 m³
Windlass 1 x 3 tonne hydraulic anchor windlass
Anchors 2 x 660 kg each
Chain Cable 22 mm diameter, 11 shot, 302.5 m length
Towing Winch 1 x 30 tonne hydraulic winch
Towing Hook 1 x 40 tonne

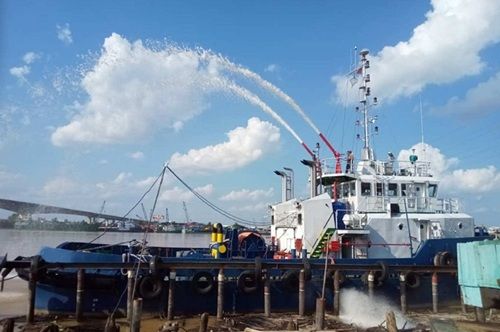

FiFi System 2 x fire monitor x 600 m³ per hour at 140 m
Oil Dispersant 2 x 5 m spray boom with 6-piece nozzle, 42 m³ per hour
