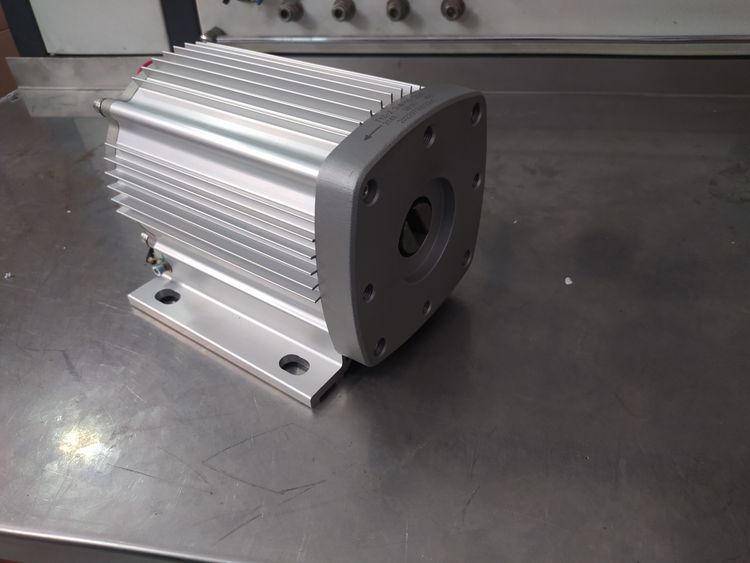

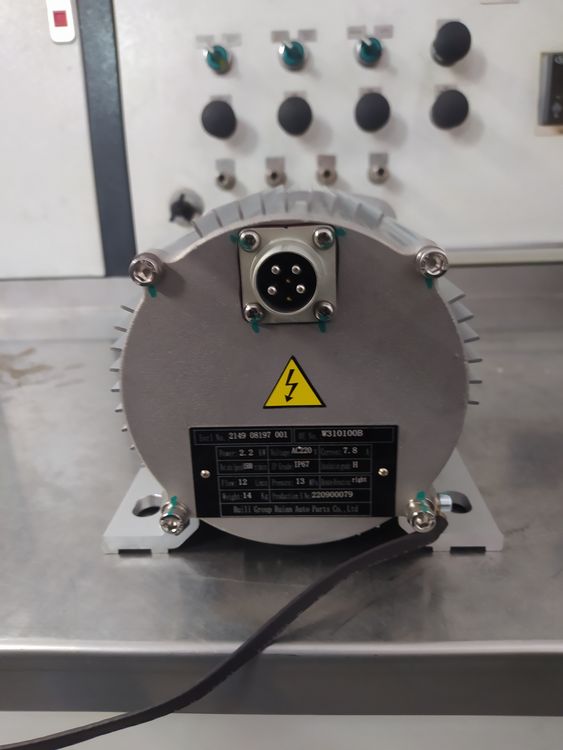

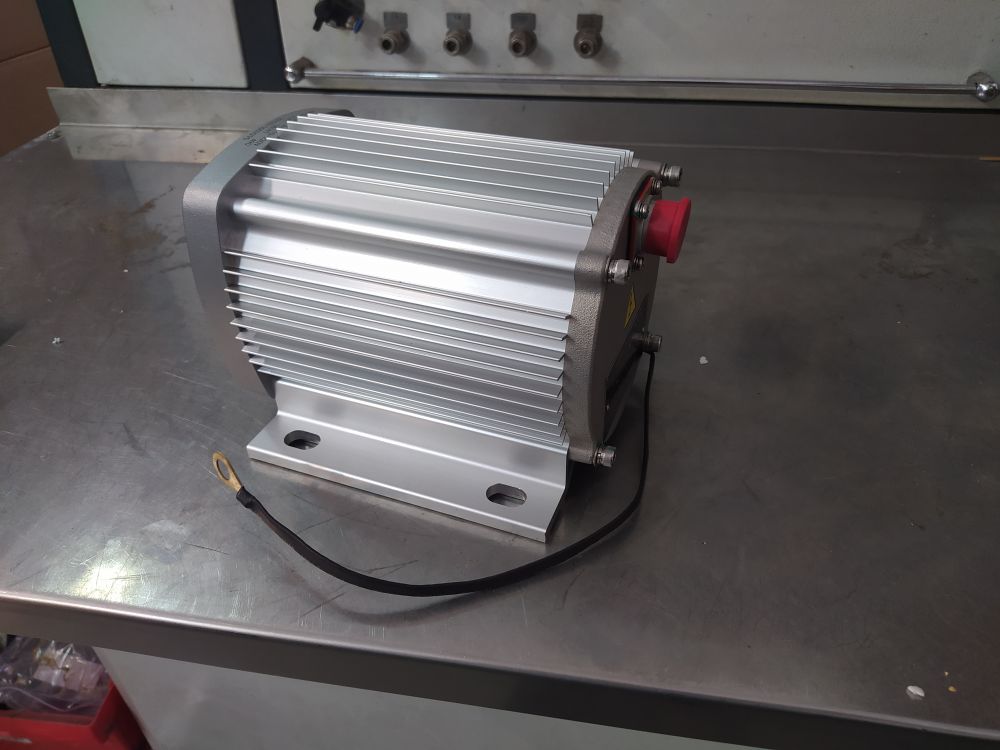

330 Sorl Electric Motor 2.2 KW

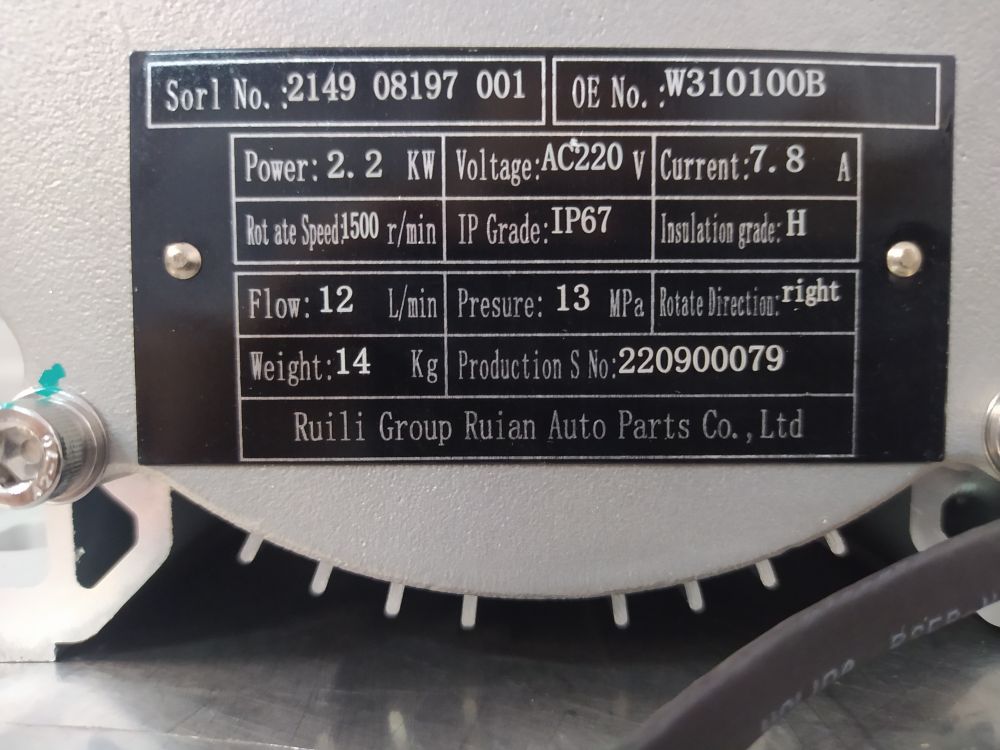

Technical details

Input voltage: 220 V
Input frequency: 125 Hz
Input current: 8 A
Noise level: 65 dB
Protection type (IP code): IP67
Power take-off speed (max.): 1,500 rpm

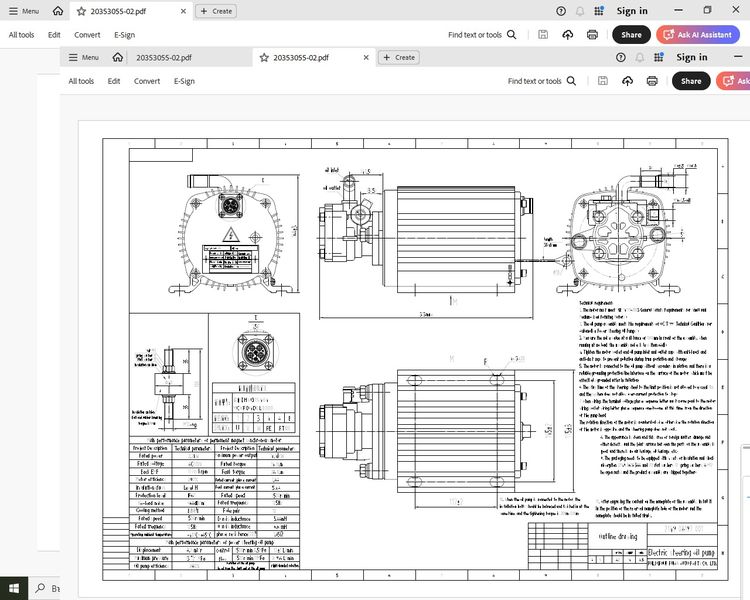

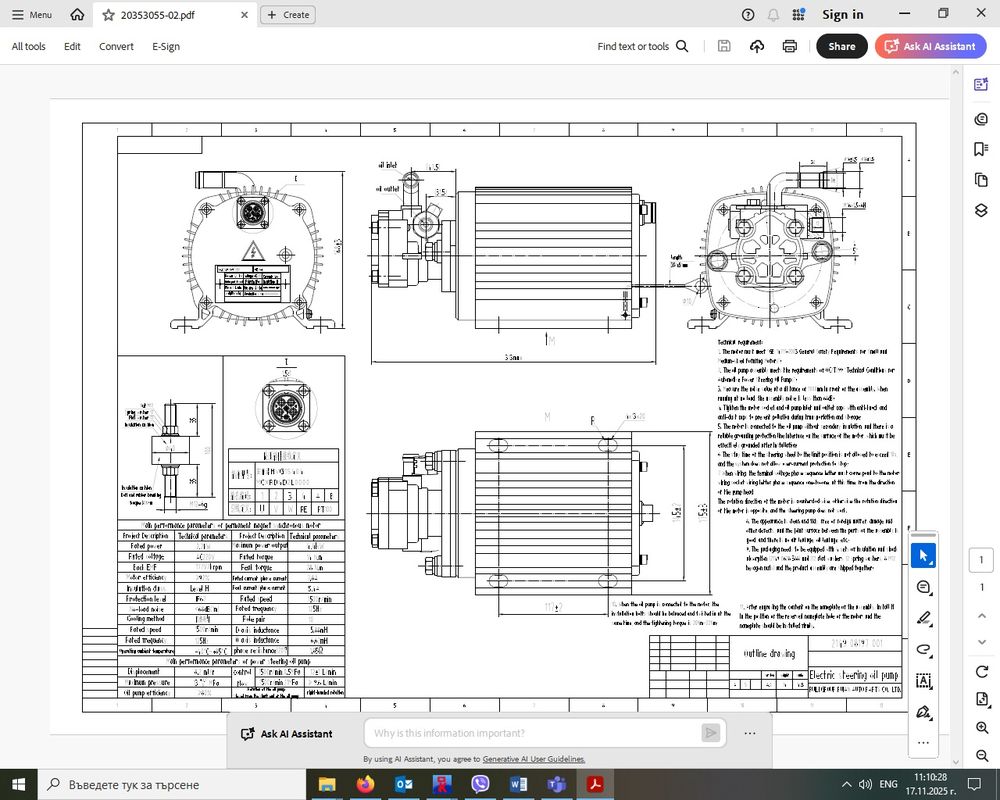

(The electric motor has been used for retrofitting diesel-powered trucks to electric or hydrogen-powered ones. A hydraulic pump can also be added to it. A drawing of the electric motor with an attached pump is provided.)


The Permanent Magnet Synchronous Motor (PMSM) is an AC electric motor that uses permanent magnets in the rotor instead of electromagnetic windings, resulting in high efficiency, power density, and a high torque-to-inertia ratio. These motors require complex, digitally controlled inverters for operation and are used in high-performance applications such as robotics, electric vehicles, and high-efficiency appliances like washing machines.

Rotor:
Unlike induction motors, the rotor is equipped with permanent magnets (often neodymium), not wound coils, which eliminates rotor current and associated losses.

Stator:
Similar to a conventional AC motor, the stator has windings that, when supplied with alternating current, create a rotating magnetic field.

Synchronous Speed:
The magnetic field of the rotor locks to the stator’s rotating magnetic field, causing the rotor to turn at exactly the same speed (synchronous speed).

Control:
PMSMs require a Variable Frequency Drive (VFD) or digital controller, often implementing advanced algorithms such as Field-Oriented Control (FOC), to properly energize the stator windings and manage speed and torque.

Brushless Design:
The absence of brushes contributes to high reliability, low maintenance, and quiet operation.

Advantages:

High Efficiency:
Permanent magnets in the rotor eliminate energy losses in the rotor, and their higher power density means they can operate more efficiently than asynchronous (induction) motors.

High Power Density:
They provide a high power-to-volume and torque-to-inertia ratio, allowing for more compact and lighter designs with greater torque.

Precise Control:
They deliver accurate and smooth speed and torque control across the entire speed range, including at zero speed.

Hnsbr Doxqfa Ue A Avxsw
High Torque:
They can generate high torque even at low speeds.

Applications:

- Industrial automation and robotics
- Electric and hybrid vehicles
- Household appliances (e.g., washing machines)
- HVAC systems
- Aerospace and defense industries
