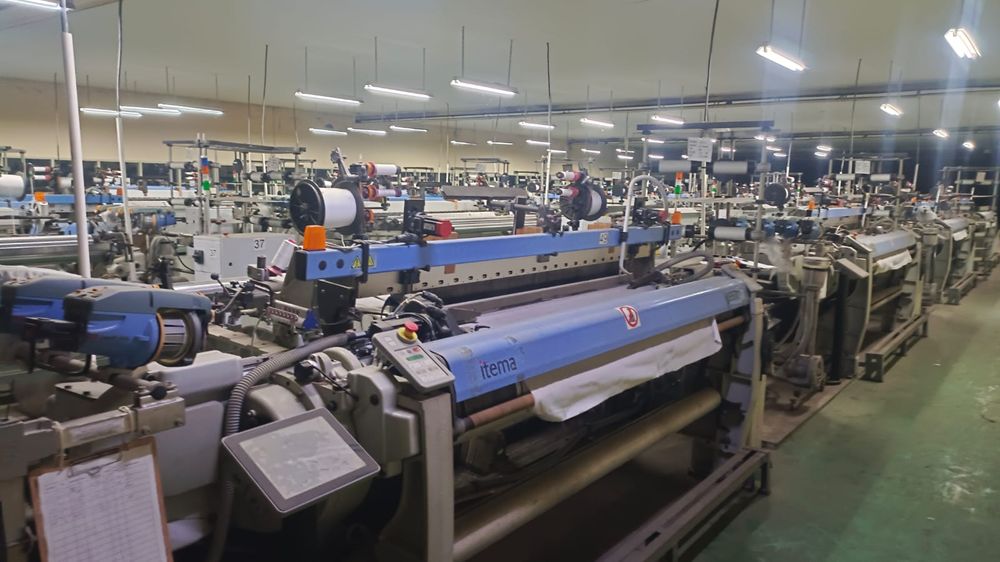

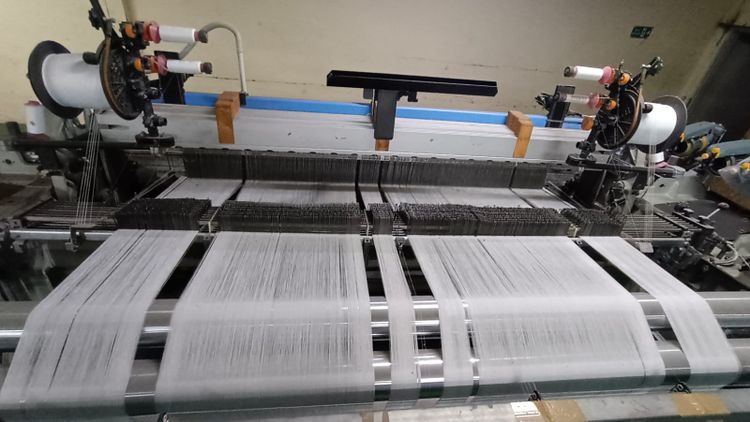

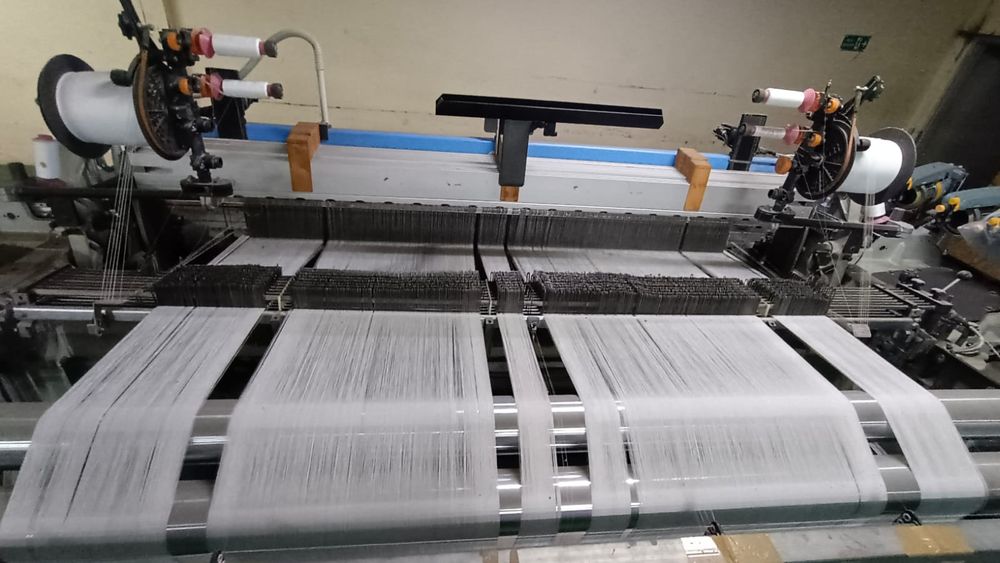

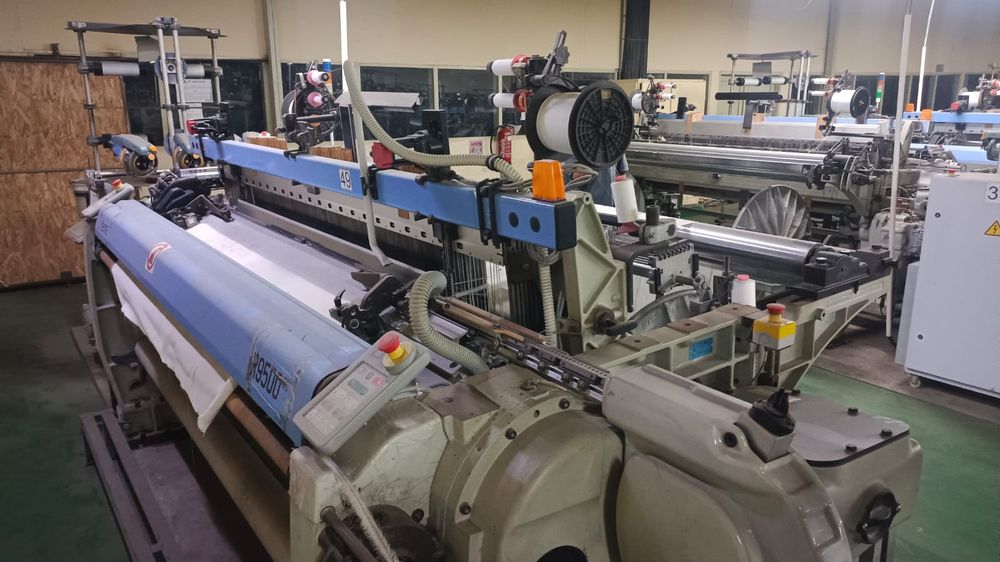

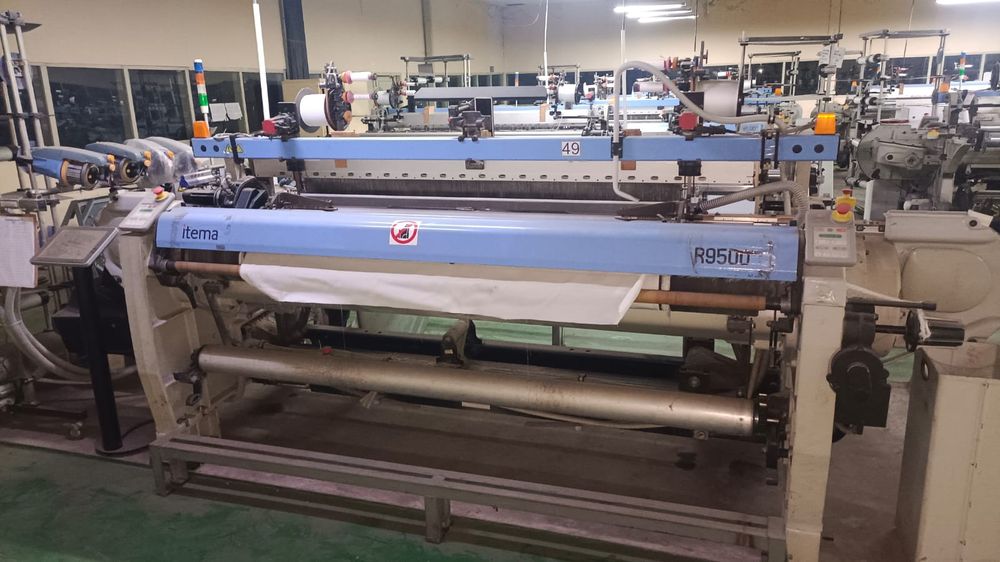

36 Itema R9500 210cm Staubli dobby 3020
Ref :
2723150-1-GO
Condition :
Used
Manufacturer :
Itema
Model :
R9500
Width :
210cm
Motion (dobby, Cam, Taffetas) :
Staubli dobby 3020
Year(s) :
2017
Quantity :
36
Location :
Seller or machines location:
ASIA (South East)
ASIA (South East)
Staubli dobby 3020 ( 20 hooks- 16 levers- 16 rods).
Warp stop motion Itema , 6 rows 30 mm gauge.
Electronic motorized weft selector for 4 weft colors.
Positive weft cutter.
4 position weft detector.
Motorized leno devices.
Electronic power supply for 8 weft feeders.
4 weft feeders ROJ Luna X3 , with FAF brake, E-flex brake and optical sensors.
Bobbin creel for 4 bobbins & 1 flanged spool for waste selvedge.
Pair of Hunziker temples.
Motorized selvedge cutter.
On loom take-up.1.5 cloth rolls per machine.
12 heald frames Groz Beckert.
1.5 single warpbeam ( Q3 class) Flange diameter 1.000 mm.
