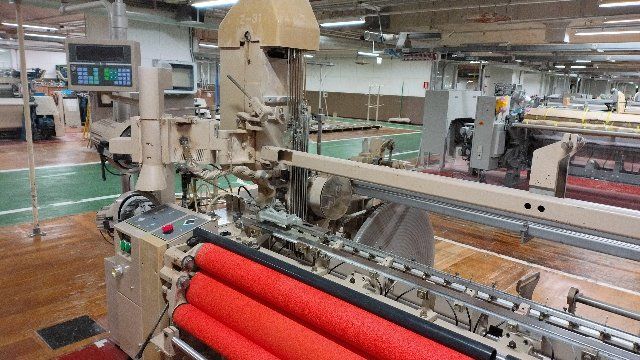

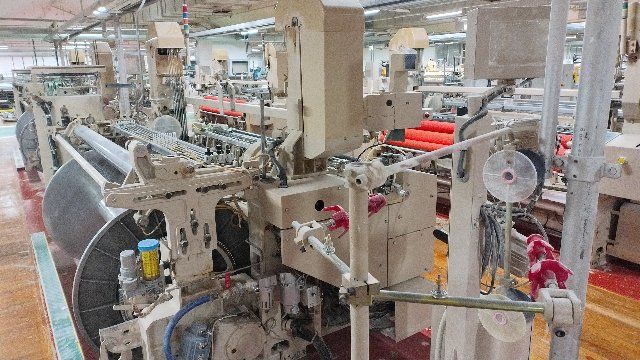

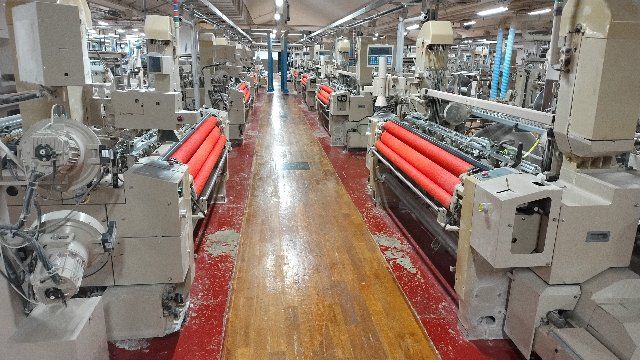

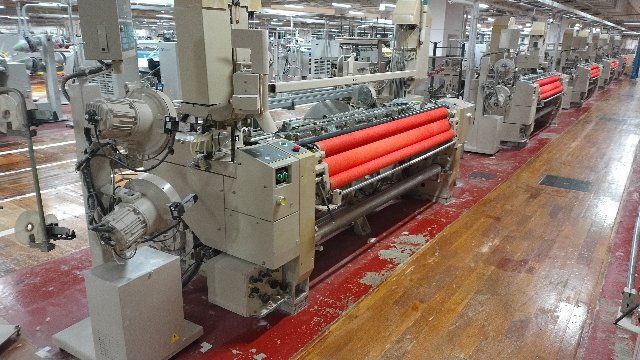

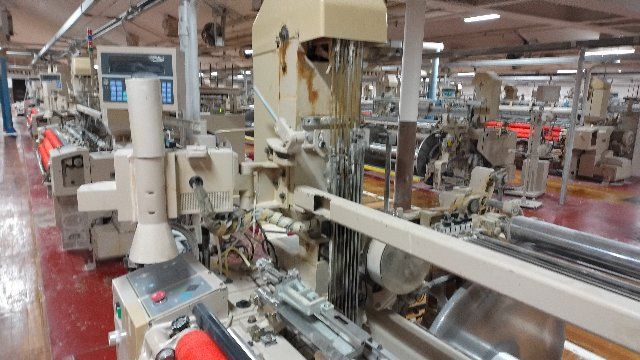

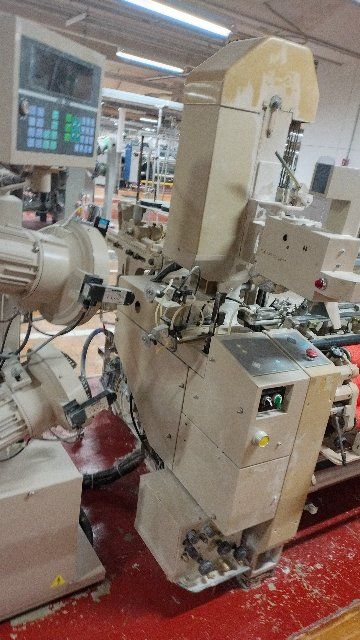

36 Tsudakoma ZAX 190 Cm Negative Cam

Year 1995 x 30, 2000 x 2, 2001 x 4
2-Color
790rpm depending on type of fabrics woven

Driving :
Programmed and direct drive/stop mechanism by electromagnetic brake
Push button operation using both hands

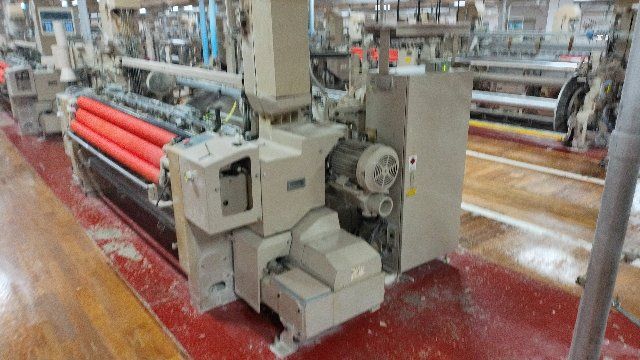

Rush start motor, 3.0kw, 50Hz/440V

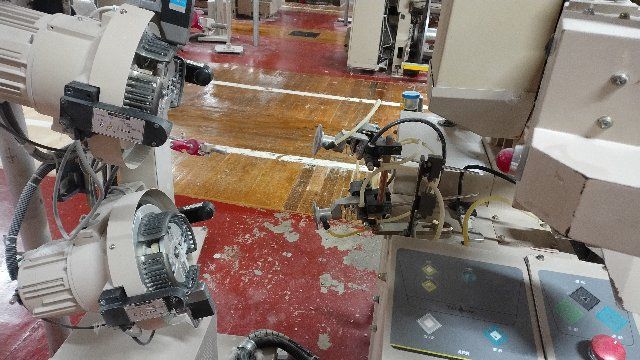

Filling insertion : Main and sub-nozzle combined system with profile reed = S4-type 2.0L main nozzle, 1.5GT Sub-Nozzle, with mist cleaner.
Solenoid valve (SVU) control, auxiliary main nozzle (independant control type)

Shedding : Tsudakoma Negative Cam Shedding, 8 shafts installed, 6-8pcs Riderless J type heald frames 331mm flat heald length

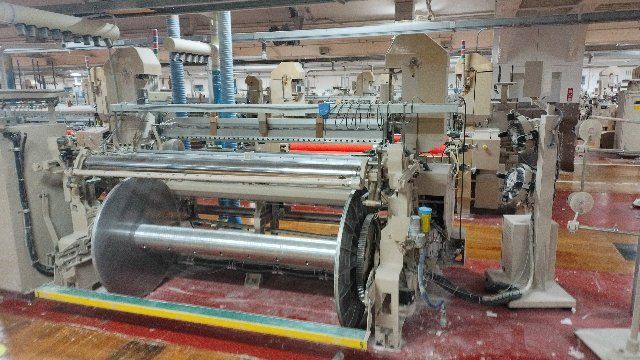

Let-Off : Continuous and fully automatic positive electronic let-off (ELO) with programmable kick-back mechanism, 930mm beam flange dia.

Take-Up : Mechanical take-up system (MTU)
Max. cloth wind-up dia. 600mm
Pick Density 25 - 130 picks/inch
Woven length counter, display on Graphic i-board (meter/yard/pick)
with pre-sent counter function. (12 sets with Batching Device)

1.5pcs warp beam and 1.5pcs cloth roller per machine,

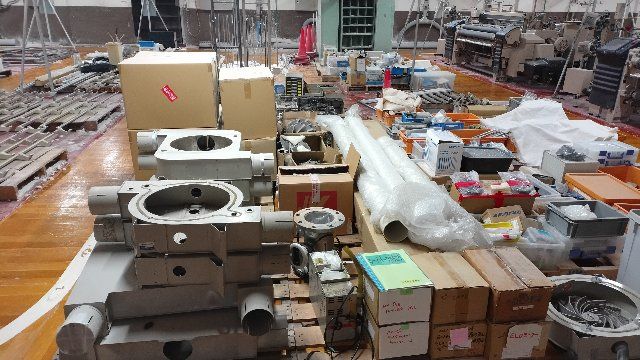

6-8 heald frames, heald wires, droppers, 1 reed, etc. etc.
