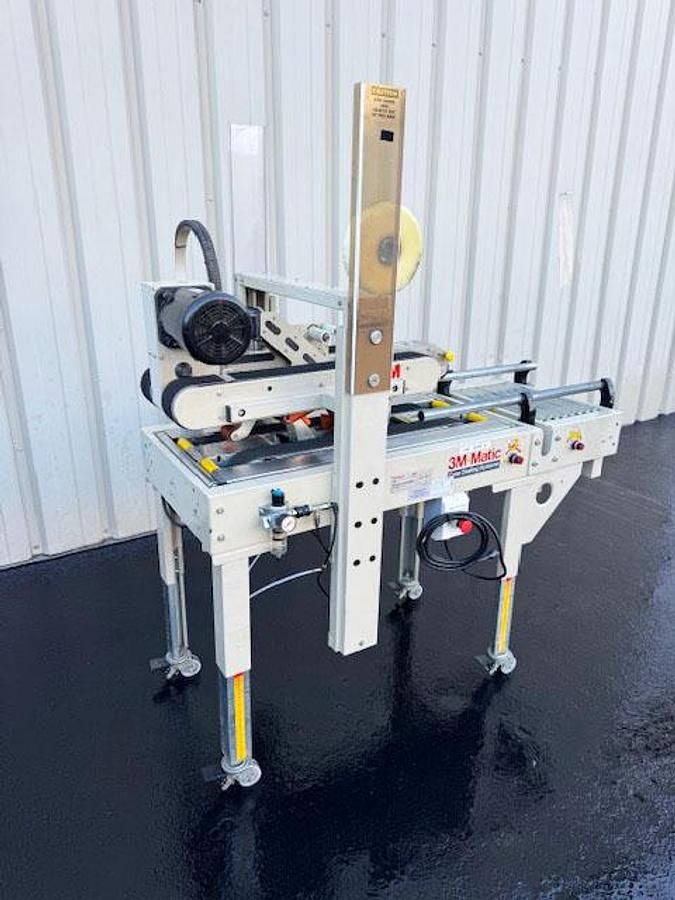

3M 77R Case Sealer

Dual Top & Bottom Case Gripper Belts
(2) 2-Inch Case Tape Heads for Top & Bottom Case Sealing
3M-AccuGlide Taping Heads
Tape Roll Diameter up to 15.5” maximum
Factory Rated Speeds up to 12 boxes per minute (depending on box size, weight)
Box Capacities;
Box Weight 5 lbs minimum, 85 lbs maximum
Height: Min 4.75” – Max 20”
Length: Min 6” – Unlimited
Width: Min 6” – Max 20.5”
Conveyor Elevation 36” (adjustable)
E- Stop
Electrical 115 Volt, 1 Ph, 60 Hz, 8.0 Amps, 470 Watts
(4) Locking Casters
Includes Operation & Parts Manual
Overall Dimensions 60” L x 29” W x 69” H @ 360 lbs.
