4 Komori GL429C 20.9 × 29.5 inch (530 x 750 mm)

KOMORI GL429C year 2023

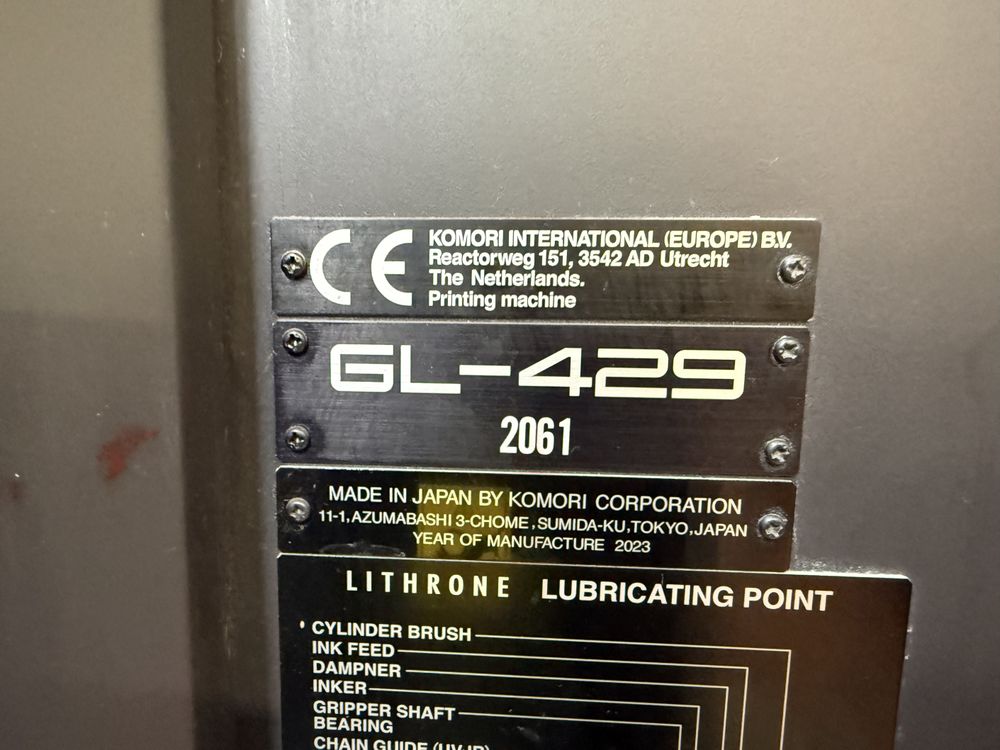

Machine no. 2061

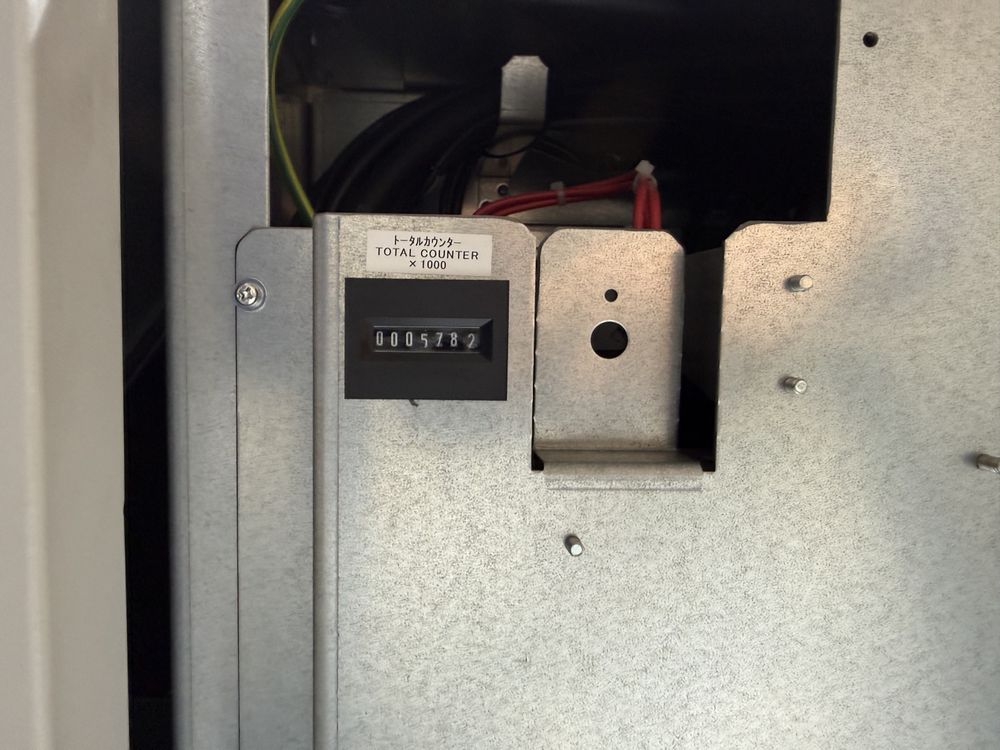

Approx. 5 mill. impressions

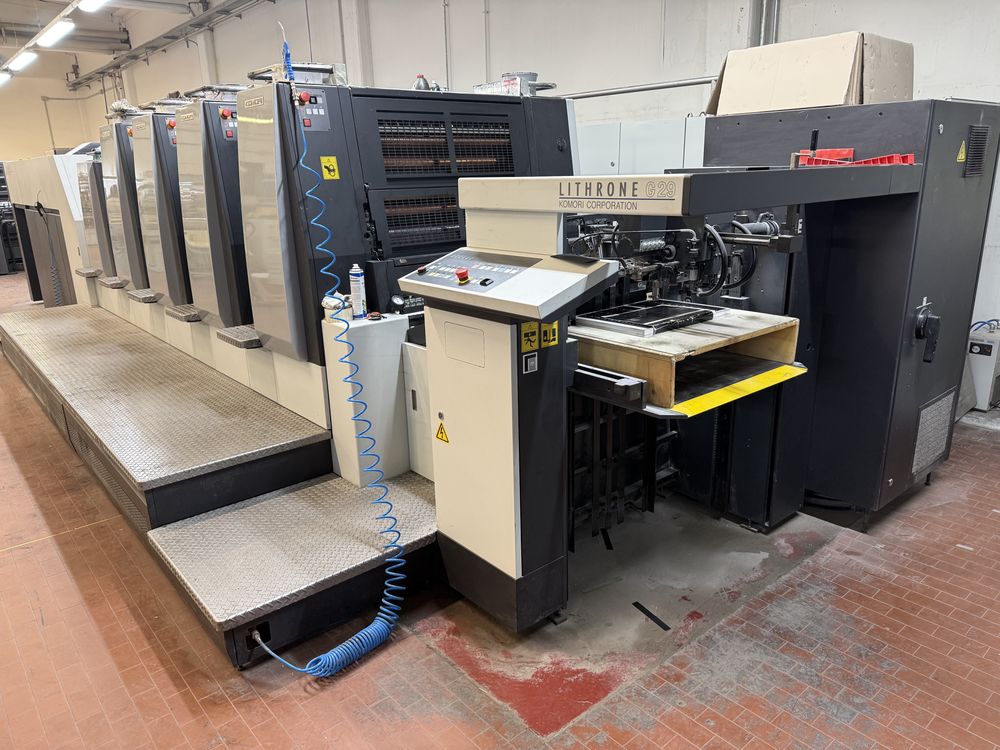

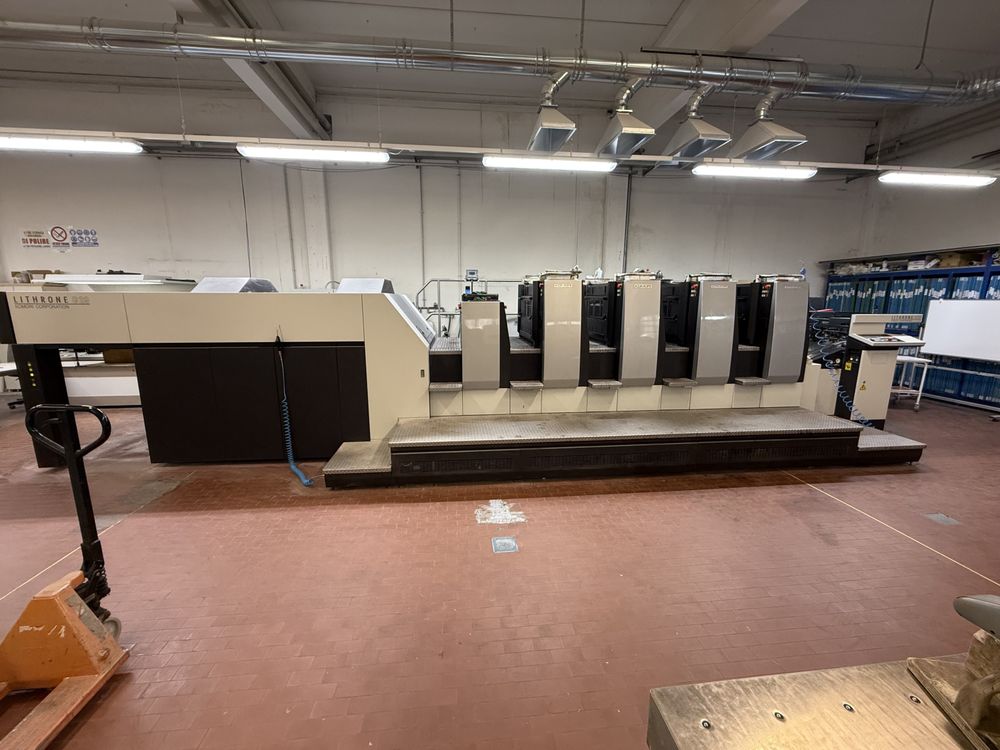

Sheet-fed offset press - Printing units: 4 + extended delivery with inline coater TRESU chamber doctor blade system
High pile delivery
Size: 20.9 × 29.5 inch (530 x 750 mm)
Technical features:
Speed: 16.500 sheet/h
Max paper size: 530 x 750 mm
Min paper size: 200 x 360 mm
Thickness: 0,06-0,8 mm
Print area size: 520 x 736 mm
Plate size: 605 x 745 mm thickness: 0,30 mm
Blancket size: 670 x 770 mm thickness: 1,90 mm
Dimensions:
L. 9,70 mt.
W. 3,20 mt.
H. 2,50 mt.
Power requirement: Kw 00 approx.
Weight: 00.000 Kg. approx.
Accessories included:
-Steel plate on feeder and delivery
-Electronic double sheet control
-AMR - Automatic Make Ready
-KOMORIMATIC continuous dampening system Technotrans Alpha. c
-Ink Temperature Control

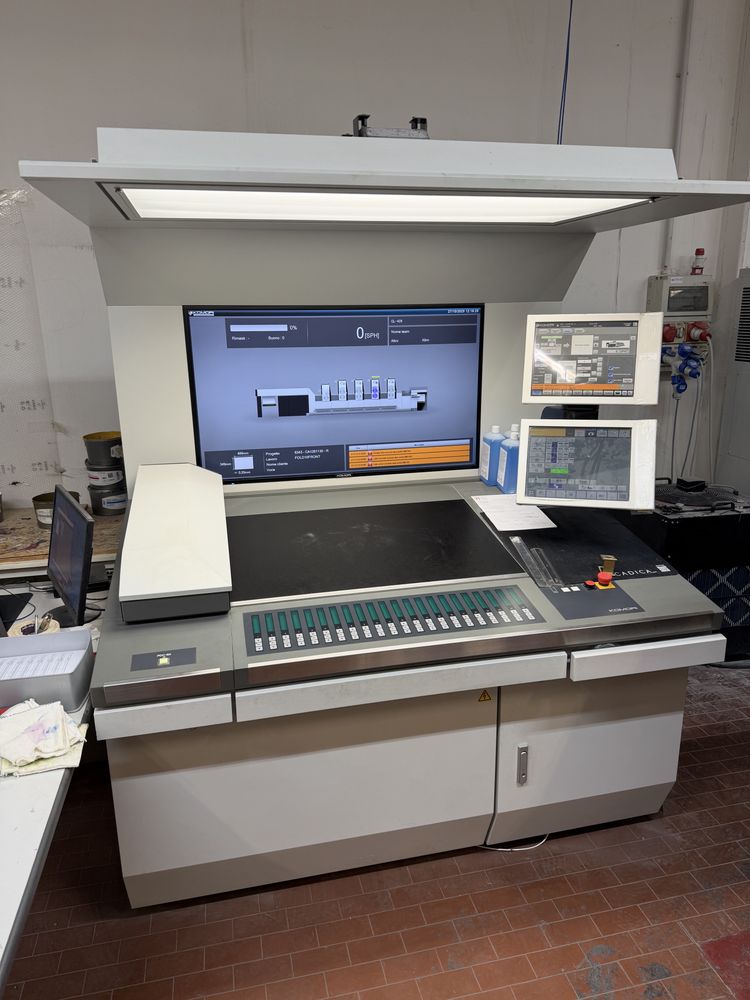

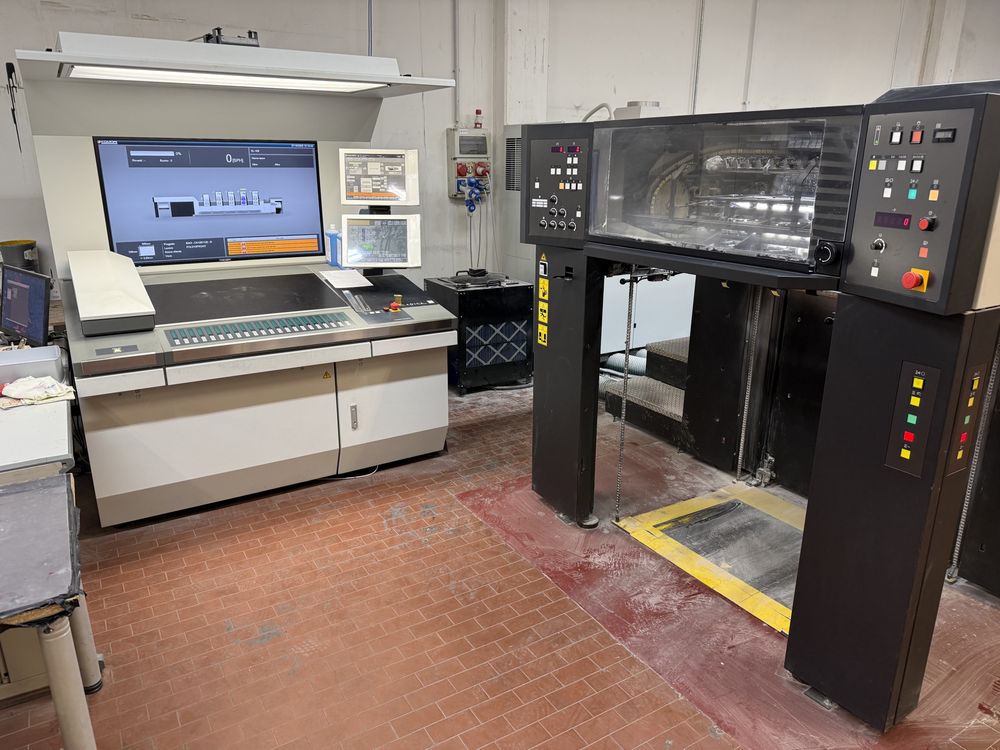

-PQC-S ink and register control with remote control console
-PDC-SX print quality - spectrophotometric control
-PCC 2.3x prepress interface CIP3 compatible
-KHS-AI intelligent ink preset system
-KMS4 Monitoring System
-F-APC Full-automatic plate change
-COOKING Plate Cylinder Cocking from PQC
-AIRC Automatic Ink Roller Cleaning
-ABW Automatic Blanket Wash up
-ICC Automatic impression cylinder Wash up
-Ink/Dampening declutch for all printing units
-Chrome Plated Cylinders
-Double diameter impression cylinders
-Skeleton Transfer Cylinders
-Weko powder sprayer
-High pile delivery

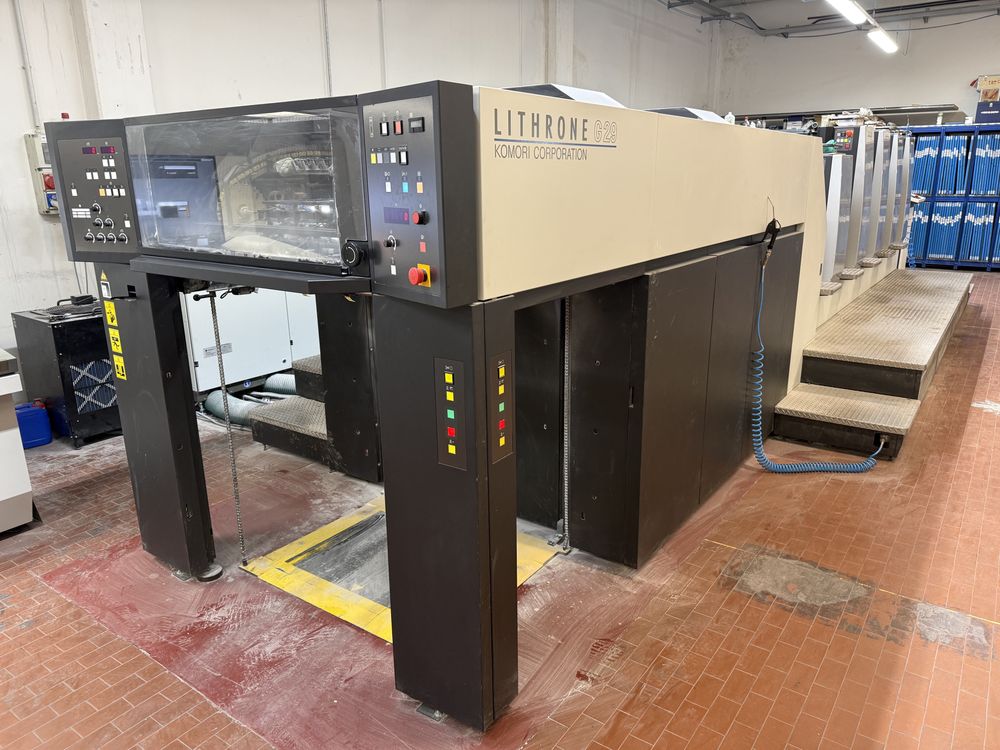

-Extended Delivery
-Coater unit with TRESU chamber doctor blade system (2 anilox rollers) + circulator Aqua L10i G3
-IR Dryer With Air Knife
-Standard equipment
-Oil drip pan, Tools, Documentations
-Complete with all standard parts and accessories

Conditions: Good conditions
Availability: immediately
Visible: Machine can be inspected in production, nearest airport Milan. North Italy

All machines are offered in Euros and are subject remaining unsold.
For further information don’t hesitate to contact us
