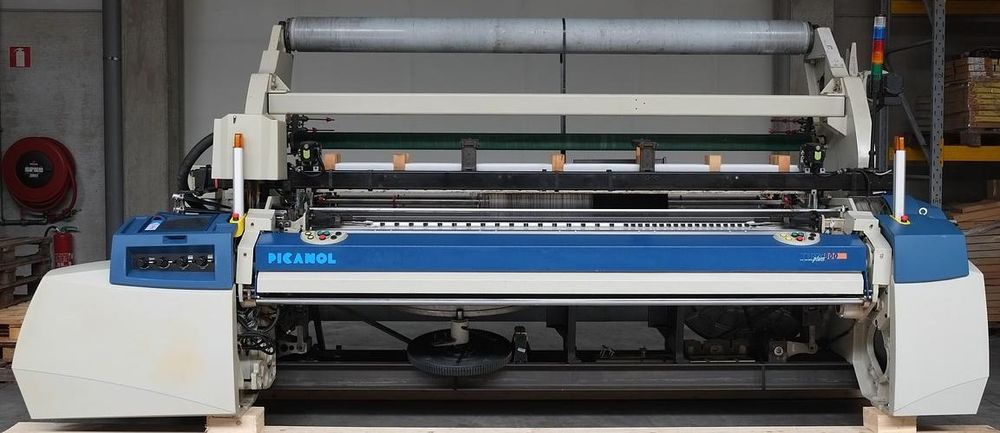

4 Picanol TER-800-8-R 260 Cm Staubli Dobby 2881
EUROPE (Western and Northern)
year 05/2007 (3x) + 10/2010 (1x),
working width 2600mm,
8 colours
upper beam construction
electronic STAUBLI dobby 2881, 14 levers stalled
equipment :
SUMO, ground - and pile ELO, ETU, 8 weft colours
6 weft feeders Picanol 1131X2 / 2231X2 with PFL and balloon breaker
feeder stand, 2 bobbin creels, 2 tension rolls Ø 120mm

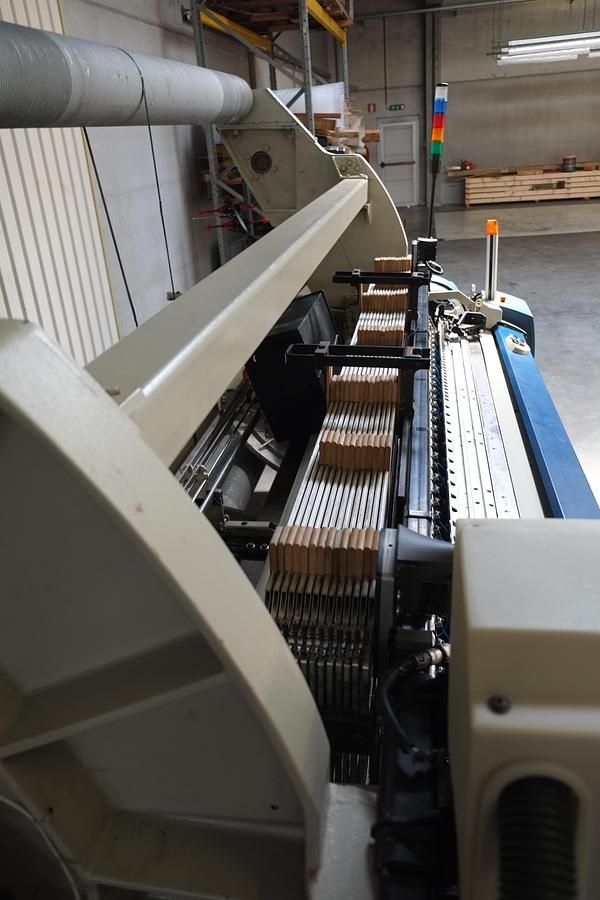

take-up roll with pins, 14 heald frames DRC30 GTP XLF Xtra Light 152 13”
2 warp detection GROB (each 2 detection bars)
heddles & droppers as on loom installed
1 1⁄2 ground beam Ø 800mm, 1 1⁄2 pile beam Ø 1250mm

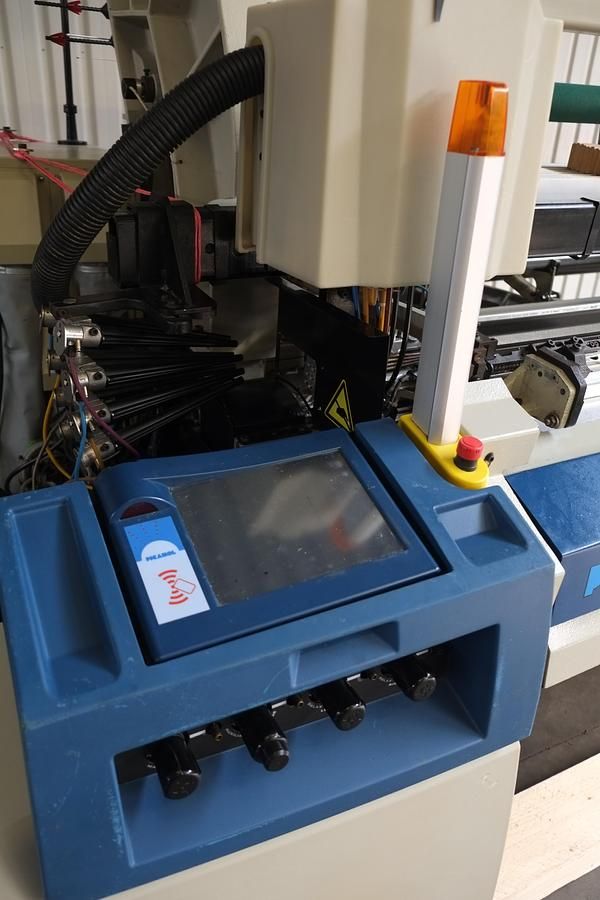

touchscreen with USB, electrical cutter R-side, Elsy RHS+LHS
waste system with dustbin
external batching motion NEUENHAUSER (3 x Type DW1215 year 2007 / 1 x type DW1415L year 2013)
walking floor, loom 302112 with ELDEC, max. speed 700RPM.
