5 hl Brewery Equipment

COMPLETE 5-HOUR BREWERY IN EXCELLENT CONDITION,
UPGRADE TO 20 HOURS

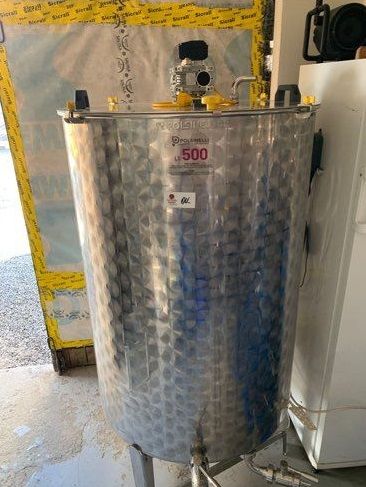

1 500-LITRE MOTORIZED BREWING TANK WITH FILTER AND ROUND HATCH FOR DRIED GRAIN DRAINAGE,
930 mm diameter – 800 mm height
Stainless steel filter for dredged grain,
reinforced double bottom model
Round stainless steel hatch for dredged grain drainage,
300 mm diameter
Stainless steel ball for fly sparge
DIN25 connection with stainless steel ball valve + 3/4" x 20 stainless steel nut with grooved end
1/2" welded stainless steel socket + stainless steel probe holder + analog thermometer + stainless steel protection
1/2" stainless steel socket Welded for the optional addition of a probe holder sleeve
Stirrer for stirring equipped with a geared motor mounted directly
on the thick, reinforced lid, held in place by four handles
and equipped with an inspection hatch
Full, adjustable drain with a DIN 25 ball valve + 20 mm grooved end

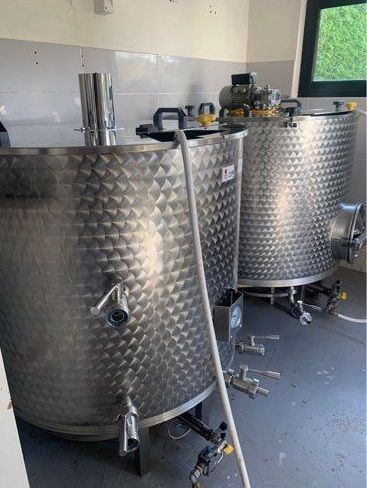

1 500-LITRE BOILING TANK, diameter 930 mm – height 800 mm
Flat bottom with rounded edges for easy cleaning
DIN 25 connection with stainless steel ball valve + grooved end with 3/4" x 20 stainless steel nut
Welded 1/2" stainless steel socket + stainless steel probe holder + analog thermometer + stainless steel protection
Welded 1/2" stainless steel socket for the optional addition of a probe holder sleeve
Stainless steel lid equipped with a connection for the fume exhaust pipe
Tangential connections for Whirlpool Stainless steel ball valve DIN25 x PG30
Full swivel drain with DIN 25 ball valve + 20 mm barbed end
1 300-LITER SPARGE WATER TANK, diameter 720 mm – height 800 mm
• DIN25 connection with stainless steel ball valve + barbed end with 3/4" x 20 stainless steel nut
• 1/2" welded stainless steel socket + stainless steel probe holder + analog thermometer + stainless steel protection
• 1/2" welded stainless steel socket for the possible addition of a probe holder pocket
Full swivel drain with DIN 25 ball valve + 20 mm barbed end
1 26 kW stainless steel gas stove (high power) diameter 560 mm
2 35 kW stainless steel gas stove (high power) diameter 7200 mm
• Safety valve (allows the gas supply to be cut off if there is no flame)
• Pilot flame (useful during the various stages and for remote temperature monitoring)
• Piezoelectric ignition

Accessories:
3 stainless steel support structures for tank
1 stainless steel 500 beer level gauge
1 stainless steel MAXI 80 heat exchanger with 22 removable and sanitizable plates
1 EP MINI 20 B electric pump for sparge and transfers, equipped with a potentiometer to adjust the flow
1 EP MIDEX 30 B electric pump for Whirlpool and transfers
3 625 L Speidel fermenters
1 wash cover

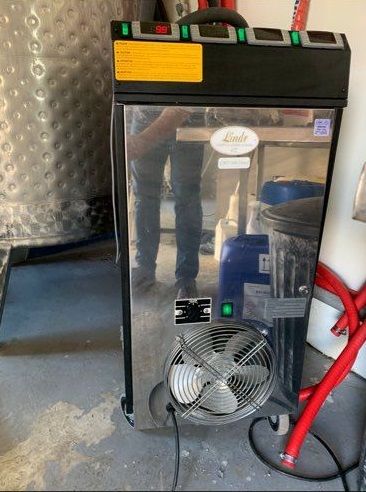

1 Lindr CWP 300 green line mobile regulated refrigeration unit, 4 lines on 4 pumps and with 4 independent thermostats 2300W. For cooling 4 fermenters.
1 CAD stainless steel filler with 4 spouts and electric float and pump, on casters
• Flow rate: 480 liters/hour
1 stainless steel 3-roller mill
1 Ulysse Polsinelli manual capper
John Guest tubing for cooler
Various small equipment (pH meter, etc.)
