5 Stainless Steel Plant 12,000 Litre Stainless Steel Reactor Vessel
EUROPE (Western and Northern)

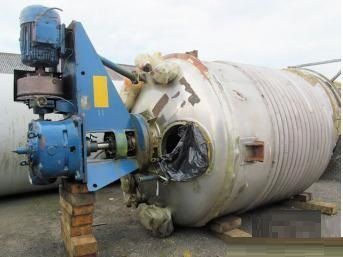

”Used 12,000 Litre Stainless Steel Plant Reactor Vessel”
• 321 Stainless Steel Reactor Vessel
• Orientation: vertical, cylindrical, dished top and bottom with side supports.
• Dimensions: 2440mm diameter, 2340mm on the straight, 520mm dished ends.
• Vessel is jacketed with (15) wraps of limpet coil on the side wall and
(7) wraps of limpet coil on the bottom dish.
• Design data: 2.4bar/FV vessel design pressure, 5.2bar coil design pressure,
• 3.6bar vessel test pressure, 9.3 bar coil test pressure.
• Vessel is complete with a Transkem top centre mounted twin flighted
(4) blade turbine agitator,
• Type GDTE MT variable speed drive 30/145 rpm.
