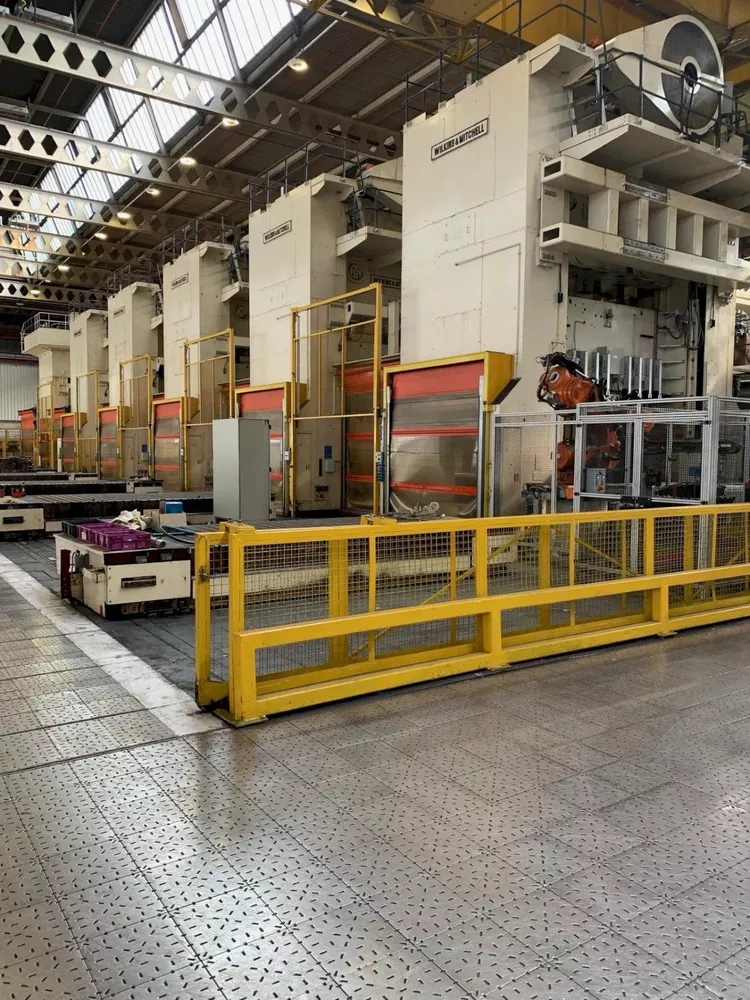

5 Wilkins Mitchell S4-800-144-84 4 Point 800 Ton

Complete Press Line
Two Moving Bolsters Each Press Lateral Moving
De-Stacker System-Two
Loading Tables
Robot At The Head Of The Line
Pick & Place Units
Robot At The End of Line & Main Parts Conveyor
Siemens S7 Control System

Stacking Unit: 2 Stacks
Stacking Unit Dimension: 2000 x 3500 mm
Stacking Unit Turnable: ± 180°
Maximum Stack Height: Adjustable
Stacking Unit Speed: Adjustable (same drive as telescopic conveyor)
Stacking Unit Width: Adjustable 400 mm

Telescopic Conveyor Adjustable Length: 100 - 2000 mm
Telescopic Conveyor Speed: 40 - 140 m/min
Telescopic Conveyor Number of Belts: 4
Telescopic Conveyor Width: Adjustable

Swinging Shear Coil Width: 500 - 2000 mm
Swinging Shear Material Thickness: 0.6 - 1.2 mm
Swinging Shear Feed Pitch: 150 - 3500 mm
Swinging Shear Turn Angle: Continuously adjustable 0 - 30°
Swinging Shear Max Turn Angle Material Width 500 - 1800 mm: ± 30°
Swinging Shear Max Turn Angle Material Width > 1800 - 2000 mm: ± 15°
