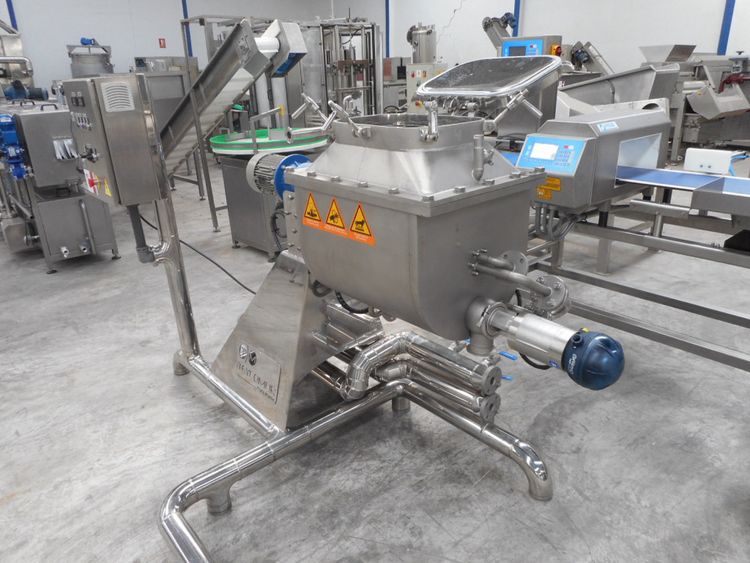

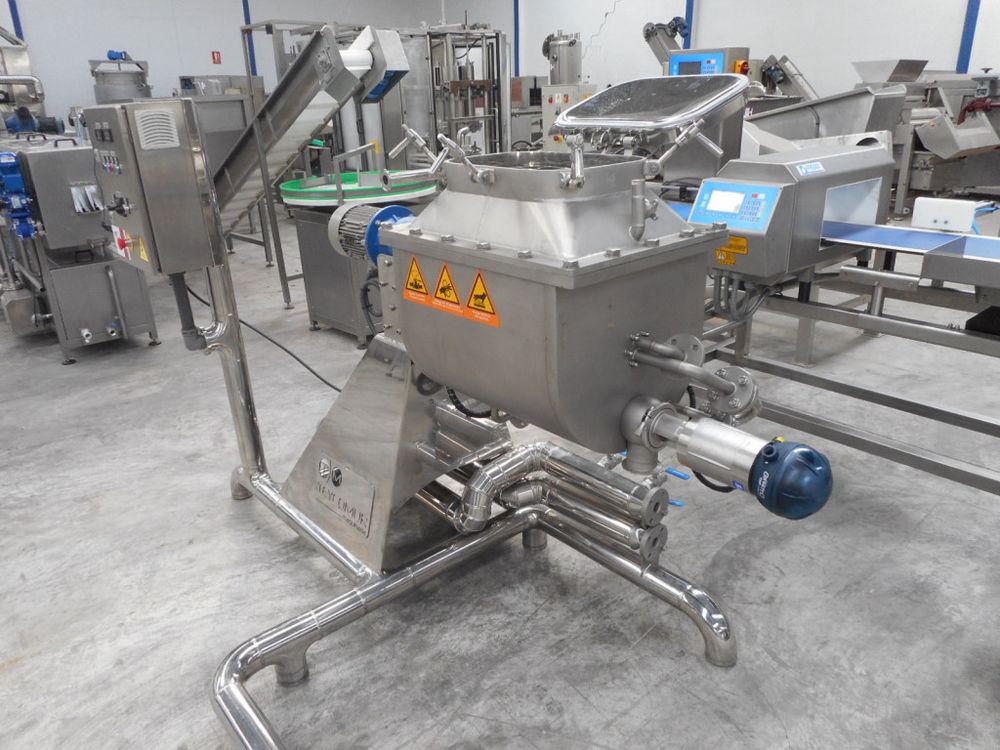

50 Lts Reactor cooking unit

Production capacity 150 a 200 Kgs per hour

• Model : Reactor 50 liters
• Useful capacity : 50 litres
• Operation : Per load
• number of plates : 5
• Plate diameter : 300 mm
• Transfer area : 1.19 m2
• Separation between plates : 55 mm
• Plate material : Polished Stainless Steel
• Design temperature : 165 oC
• Product Design Pressure : 2 bar (g)
• Service Pressure design : 6 bar (g) (plates)
• Material product side : Stainless steel AISI 316L
• Material Supports : AISI 304
• Scraper material : Peek
• Scraper speed : 60 rpm.
• Electric motor : Siemens 1.5 kW (2 HP)-Includes frequency changer
• Product Input : Access Lid
• Product output : Automatic valve
• Design : PED
• Support frame made of stainless steel AISI 304 with adjustable legs
• Glass wool thermal insulation with welded stainless steel sheet included
• Production capacity 150 to 200 Kilograms per hour

ENERGY CONSUMPTION
Steam boiler 150 kg/h 3/4 bar(g)
Electricity 3 kW.
Compressed air 50 Nl/min at 5-6 Bar (g)
Cooling water 5 m3/h (rinsing and cleaning) point consumption
The equipment includes a PLC and touch screen to control the basic processes. The equipment
can work with recipes based on time, temperatures and/or quantity of product
evaporated (the latter mode depends on whether the vacuum evaporation system is included).
