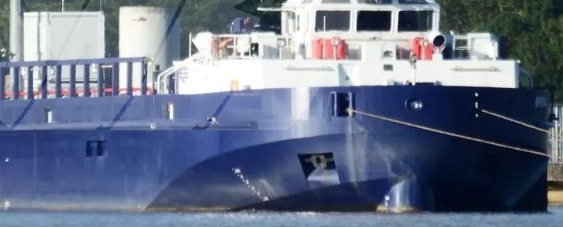

75m INLAND WATERWAYS VESSEL Deadweight (DWT): 1300 t

Class: Bureau Veritas
Shipyard: DE HOOP LOBITH
Flag: Liberia

Length Overall (LOA): 75 m
Beam: 13.8 m
Draft: 2.6 m
Minimum Sailing Draft: 1.3 m
Air Draft: 7.75 m

Gross Tonnage: 1285
Net Tonnage: 385

Speed: 11 knots

Main Engines: 3 x Caterpillar
Total Engine Power: 2400 kW
Engine RPM: 1500 rpm

Propulsion: 1 directional port + 1 directional starboard propeller

Azimuth Thrusters: 2 x 400 kW
Bow Thruster: 1 x 400 kW tunnel thruster
Stern Thruster: None

Cargo Deck: 2 lifting platforms
Platform Size: 25.10 m x 8.40 m (each)
Max Static Load: 220 t per platform
Uniform Load: 3 t/m²

Cargo Deck Positions:
Sea Position: 3.55 m / BL
Upper Position: 4.80 m / BL
Lower Position: 1.20 m / BL

Aft Ramp Width: 8.40 m
Aft Ramp Length: 2.50 m + 1.50 m flap
