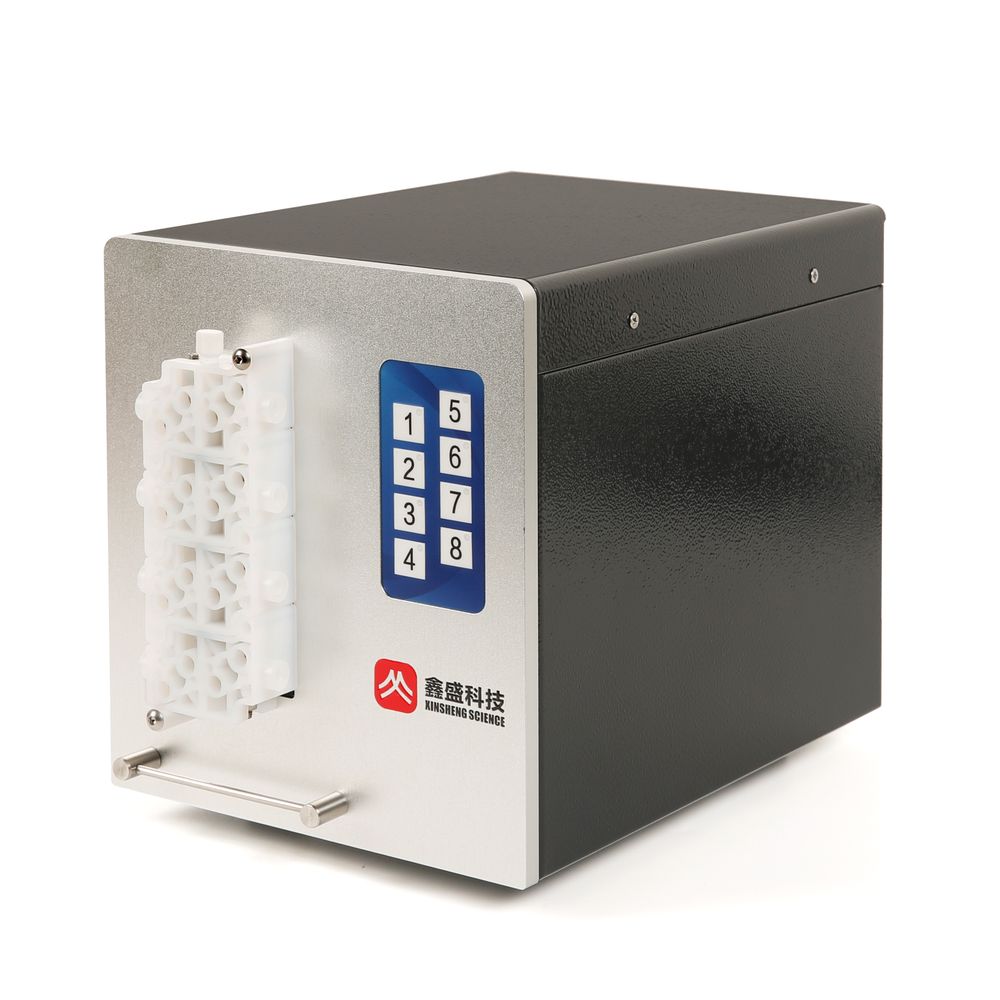

8-Channel Fraction Collector

FC200 is Xinsheng new fraction collector. it is configured with our touch screen Prep HPLC system. The valve-based preparative fraction collector is a compact, full-featured fraction collector for routine liquid chromatography separation and
purification of compounds. The collector is optimized to collect up to 11 bulk fractions, and its versatile design allows it to be used in routine sample purification workflows and recycling applications.

The fraction collector can be used as a trigger source for multiple detectors and includes all standard collection modes, such as time-based, peak-based, or slope-based collection. it is small and takes up almost no other space on the instrument.


FC200 Fraction Collector Features
Quick start and stop.
Compatible with normal and reverse phase solvents.
Automatic or manual collection devices can be configured according to user requirements.
Independent control mode: Control the valve switch through the panel key.
Software control mode: Automatic control can be carried out by software.


Article Number: FC21109
Model: FC200
Flow Rate Range: 0-3000 ml/min
Acquisition Channel: 8, Max Expansion 16
Collection Method: Time/Peak/ Slope
Control Model: RS232 or LAN, Computer Controlled
Power Supply: AC 100-240V, 50/60Hz
Power: 75W
Weight: 4.0kg
Size: 170*200*260 (W*H*D)
Collection tube: 8+1 (Standard)
Customized Available: Contact us for Contract Manufacturing
