Used Looms (rapier)
477 resultsYear(s) : 2002 Location : EUROPE (Western and Northern)
Price : On request
More details6 x 190 cm year 2003 with staubli dobby 20 shafts 6 x 200 cm year 1999 with staubli dobby 20 shafts For Year(s) : 1999, 2003 Location : MIDDLE EAST
Price : On request
More details2 looms Thema 11 Excel year 1995/1996 4 looms Super Excel year 1997 Staubli dobby 2670 with 12 shafts install Year(s) : 1997 Location : EUROPE (Western and Northern)
Price : On request
More details8 colors 14-16 shafts installed Accessories: 10 frames 4 weft feeders 1.5 beam & Cloth roll 6000 healds & dro Year(s) : 2010, 2011 Location : EUROPE (Western and Northern)
Price : On request
More detailsStaubli dobby 3020 ( 20 hooks- 16 levers- 16 rods). Warp stop motion Itema , 6 rows 30 mm gauge. Electronic mo Year(s) : 2017 Location : ASIA (South East)
Price : On request
More details2Pc. Smit GS940 230cm 2011 Year With Staubli Dobby. 20/16 Given accs for each; 4 Feeder 14 Frame 1.5 warp be Year(s) : 2011 Location : MIDDLE EAST
Price : On request
More details8 COLORS SELECTOR FREE FLIGHT EQUIPPED WITH STAUBLI DOBBY 2670B 20 LEVERS INSTALLED. ACCESSORIES : 4 WEFT FEE Year(s) : 2013 Location : EUROPE (Western and Northern)
Price : On request
More details17 sets x N.P Fast R Electronic let off Electronic take up <14 sets> Mechanical take up <3 sets> Year 1995/1 Year(s) : 1994, 1995 Location : ASIA (North East)
Price : On request
More details3 DORNIER RAPIER LOOMS Model HTV4/SD Year 1992 Year(s) : 1992, 1993, 1995 Location : AMERICA North (USA-Canada-Mexico)
Price : On request
More details2 looms PTV of year 2004 6 looms PTS of year 2007 Staubli dobby 2861/2 with 20 shafts AT2 dialog panel Staub Year(s) : 2004, 2007 Location : EUROPE (Western and Northern)
Price : On request
More detailsYEAR (8x)1998 (2x)1997 8 COLORS SELECTOR WITH STAUBLI DOBBY 2670 20 LEVERS CAPACITY, 16 INSTALLED. ACCESSORIE Year(s) : 1997, 1998 Location : EUROPE (Western and Northern)
Price : On request

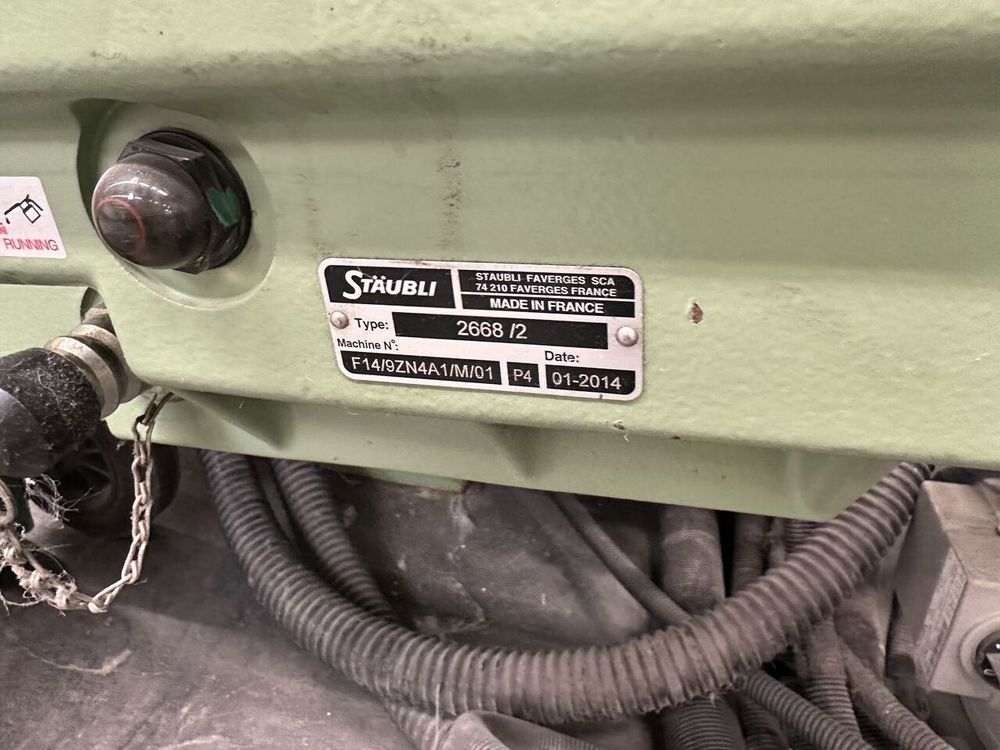

More detailsYear 2001 (x6) and 2003 (x2) 8 colors selector Staubli dobby 2668 with 20 levers (16 installed) Each loom equ Year(s) : 2001, 2003 Location : EUROPE (Western and Northern)
Price : On request
More detailsSulzer rapier machine width 220cm 41unit width 220cm 7unit year 1995 Staubli 1600 Cam 4 heald frames 1beam 1 Year(s) : 1995 Location : ASIA (China - Taiwan - HKG)
Price : On request
More detailsKaiser dobby 6028 - capacity for 20 shafts (8 installed) Color control via dobby (for 8 colors) 3-4 heald fram Year(s) : 1982 Location : EUROPE (Western and Northern)
Price : On request
More detailsstaubli dobby (S3020) 20 shafts all installed with upper beam systems For each looms: -4 pcs accumulator Year(s) : 2014 Location : MIDDLE EAST
Price : On request
More detailsYear: 2011 (x2) and 2012 (x2) 6 colours Staubli dobby 2670B with 20 shafts (16 installed) Weft Tensioner: P.F. Year(s) : 2011, 2012 Location : MIDDLE EAST
Price : On request
More detailsWeft Colours: 8 Shafts: 20 (16 installed) Included Equipment: Weft Feeders: 4 Wires: 6000 Droppers: 6000 Clot Year(s) : 2016 Location : MIDDLE EAST
Price : On request
More details8 colours with STÄUBLI dobby 2670B/2, 16 levers including 3 weft accumulators, 12 frames 1.5 warp beams, 1.5 r Year(s) : 2011 Location : EUROPE (Western and Northern)
Price : On request
More details8 COLORS SELECTOR PREDISPOSED FOR BEAMS FLANGE 1000 mm FREE FLIGHT WITH CARRIERS, TOUCHSCREEN WITH STAUBLI DOB Year(s) : 2004 Location : EUROPE (Western and Northern)
Price : On request
More details4 Colors each loom with: STAUBLI Electronic Dobby - Type: 2670B 16 Shafts Installed 06 Harness Frames 04 Weft Year(s) : 2004, 2005, 2006 Location : EUROPE (Western and Northern)
Price : On request
More detailsPanel: Second generation GC System Colors: 8 Weft feeders: 3 İRO Features: SUMO, ETU, EWL, ELSY Trees: Capacit Year(s) : 2020 Location : EUROPE (Western and Northern)
Price : On request
More detailswith staubli dobby 20 shafts 16 installed For each looms; -3 accumulators -1,5 beam and cloth roller -12 fra Year(s) : 2001 Location : MIDDLE EAST
Price : On request
More details38 x Picanol Gammax – 8- R of year 2006 width 190cm Staubli dobby 2861 with 20 shafts installed 6 looms with u Year(s) : 2003, 2006 Location : EUROPE (Central and Eastern)
Price : On request
More details1 set with STAUBLI DOBBY & 1 set with cam motion Weaving from creel (without creel) with dummy outside the loo Year(s) : 1990 Location : ASIA (South)
Price : On request
More detailsElectronics Take Up Motion Electronic Let-off Motion : 1.5 Warp beam 1.5 Number of Cloth Roller Year(s) : 1998, 1999 Location : ASIA (South)
Price : On request
More detailsYou can find used Looms (rapier) on Wotol
Rapier weaving is one of the technology for weaving with, air jet weaving, water jet weaving, projectile weaving.
There are still few weaving companies using older methods like shuttle looms weaving and even hand weaving.
With rapier looms the weft yarn is carried through the warp with rapiers.
In rapier technology the weft yarn is carried by grippers with flexible tapes or rigid profiles.
The grippers meet in the meedle of the loom and exchange the yard.
There are two types of grippers: negative grippers which is the most common type and positive grippers.
Positive gripper offers the best flexibility because it can catch any type of yarn during the same weaving process.
Rapier weaving is the most commonly used technology. It offers more versality than other technoligy such as air jet and higher productivity than projectile looms as an example.
Rapier weaving is suitable for any type of fabric: clothing, home fursnishing or technical.
The width of the looms varies from 150cm to 540 cm for the widest.
They can be fitted with dobby (also cam) and jacquard.
Main air jet looms producers are Picanol (Belgium), Dornier (germany), Itema (Italy), Sulzer (Swiss), Somet (Italy), Vamatex (Italy), SMIT (Italy), Panter (Italy) and older manufacturers like Nuovo Pignone (Italy) Saurer Diedrich (France) of SACM MAV (France).
Q&A corner - questions and answers received from members
Q: Is Dornier the only loom with positive grippers?
A: There are other looms with positive grippers such as Panter or the Saurer Vamatex 9000+ but Dornier is the most spread and popular brand. Picanol is working on positive grippers too.
Q: What is the benefit of Picanol Sumo motor?
A: Picanol Sumo motor gives you more flexibility. It can manage the slow motion. Also it is more eco friendly because it has lower electric consuption. It also enalbles an easy pick finding.
Q: I have been offered recent G6300 but I thought Sulzer stopped production in before 2004.
A: Seems the G6300 is now produced in China under license by an other brand but we don't have many information about it.
Q: What is the difference between free flight and guided hooks?
A: In guided hook rapier technology the tape that holds the gripper is driven inside a chanel of hooks. IN the case of free flight there is no more hooks. There is less friction with the free flight technology but for some types of fabric this technology is not suitable and guided hood is recommended.
Q: I want to weave very large fabric. What are the widest rapier looms available on the market?
A: You can find Some Dornier and Picanol looms in 540cm. Seems it is difficult to go wider because of the limitation of possible lenght of rapier tapes or rapier profiles. If you want to weave wider fabric you should consider Sulzer projectile looms.
