850 mm trim A4/A3 cut size line, type IGNIS RR90, with on line packaging
MIDDLE EAST
Manufacturer Line-o-Matic
type A4 and A3 IGNIS RR90
with on line packaging
check photos
video in production: https://www.youtube.com/shorts/JPjqAaJWpJ0
Deatils:
Speed m/min 200
Max unwind. 1400
Paper grammage typically 70 - 80 gsm
Max knife load: 400 gsm
Max. 890 mm / Min. 440 mm (can run 2 or 3 or 4 pockets)
Capacity: 20 cycles / minute number of reams to be wrapped
Approx. 25 tons per day (in 3-shift working schedule)
Cutting width max 840 mm
A4 (210 x 297 mm) A3 (297x420 mm only sheeting)

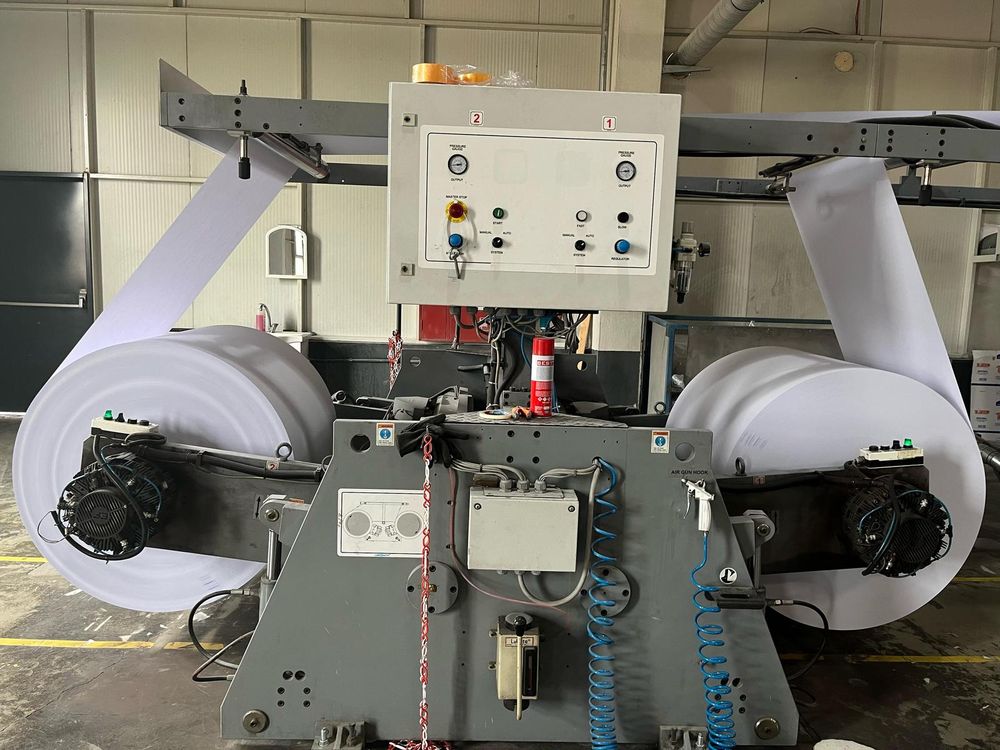

Two unwind stands (twin reel stand lifting from floor) pneumatic brakes
max reel width 890 mm, dia, 1400 mm

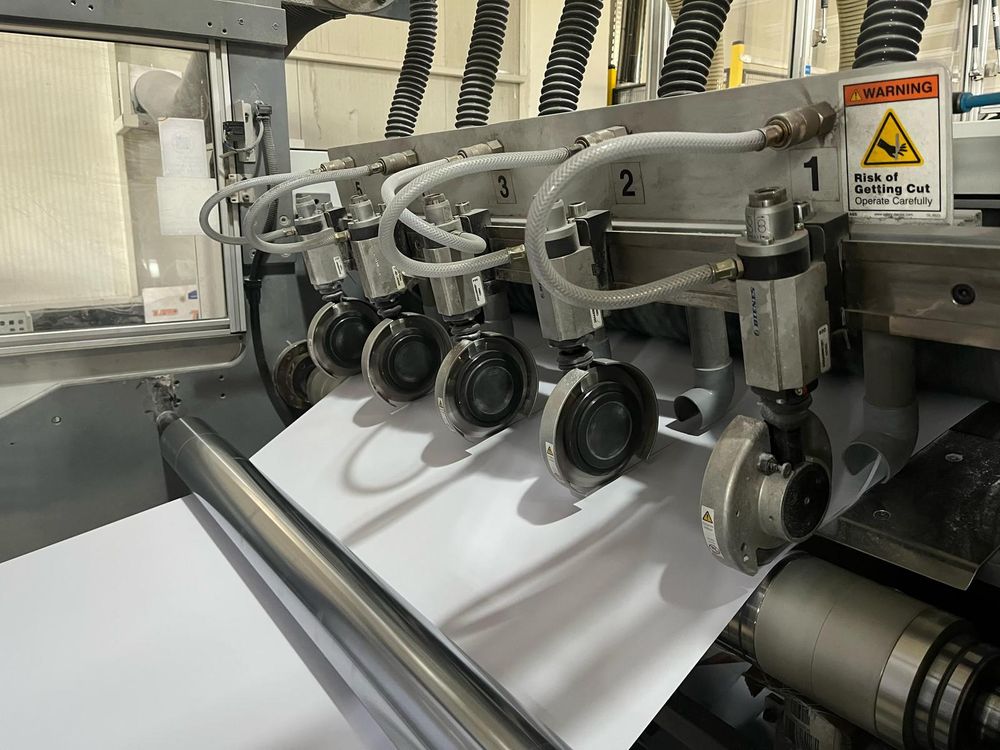

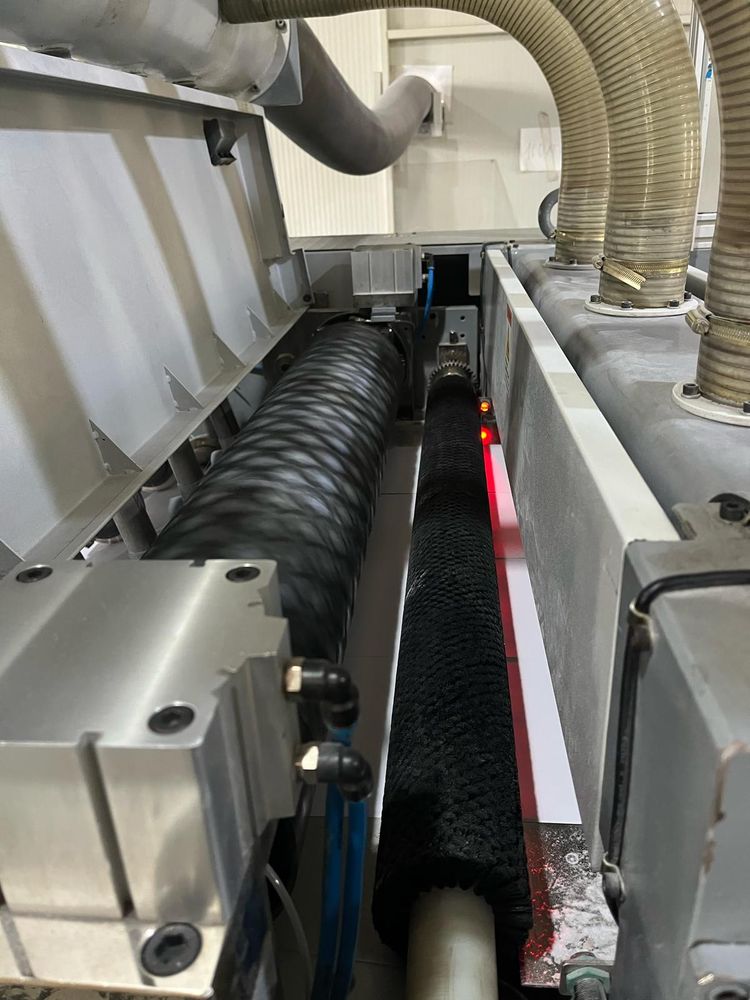

Slitting section with five knifes, Dienes Knife holders, dust extraction
Cross cutting unit, Syncro cutting, dust extraction
Overlapping section
Deliver out 4 pockets

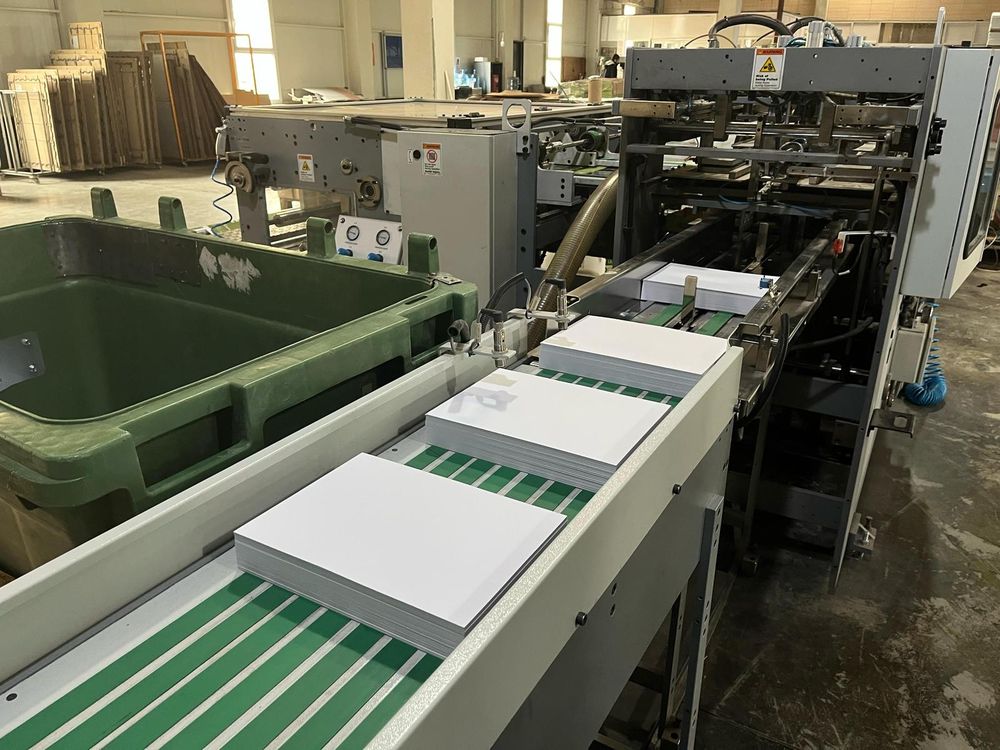

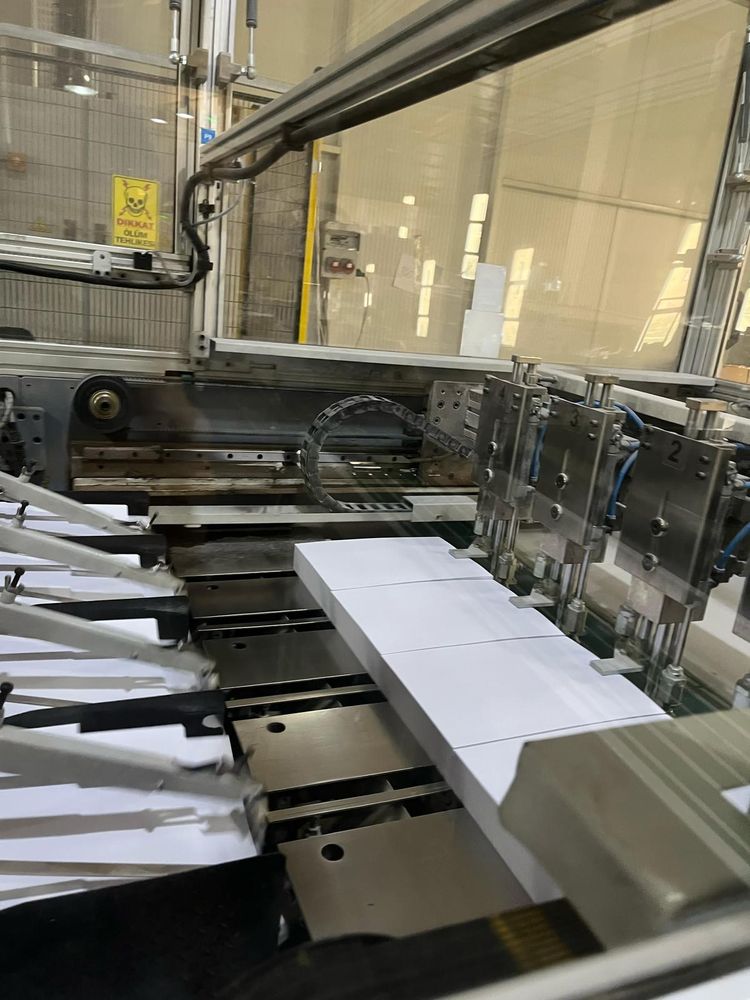

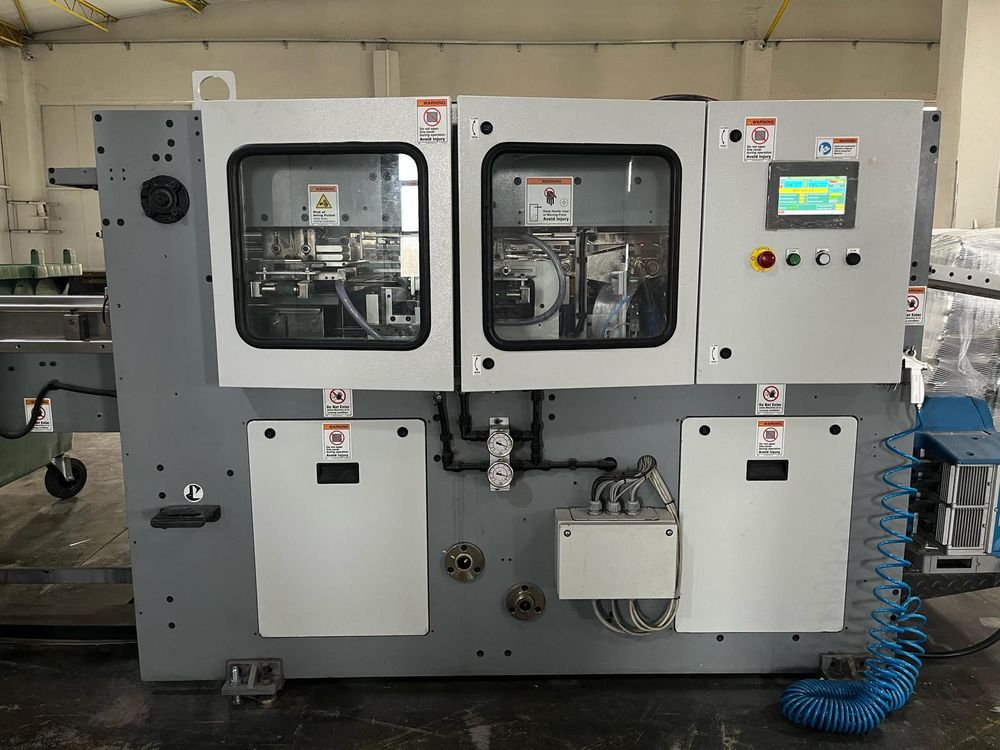

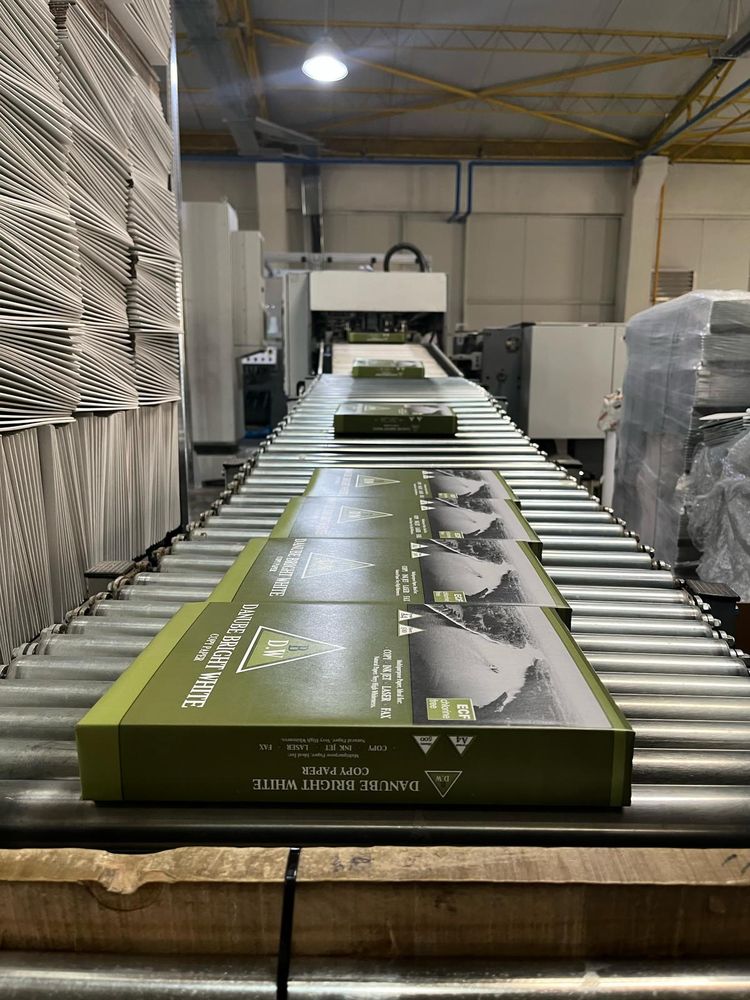

Wrapping machine for A4 reams, wrapping in paper, Nordson Hot Melt Glue

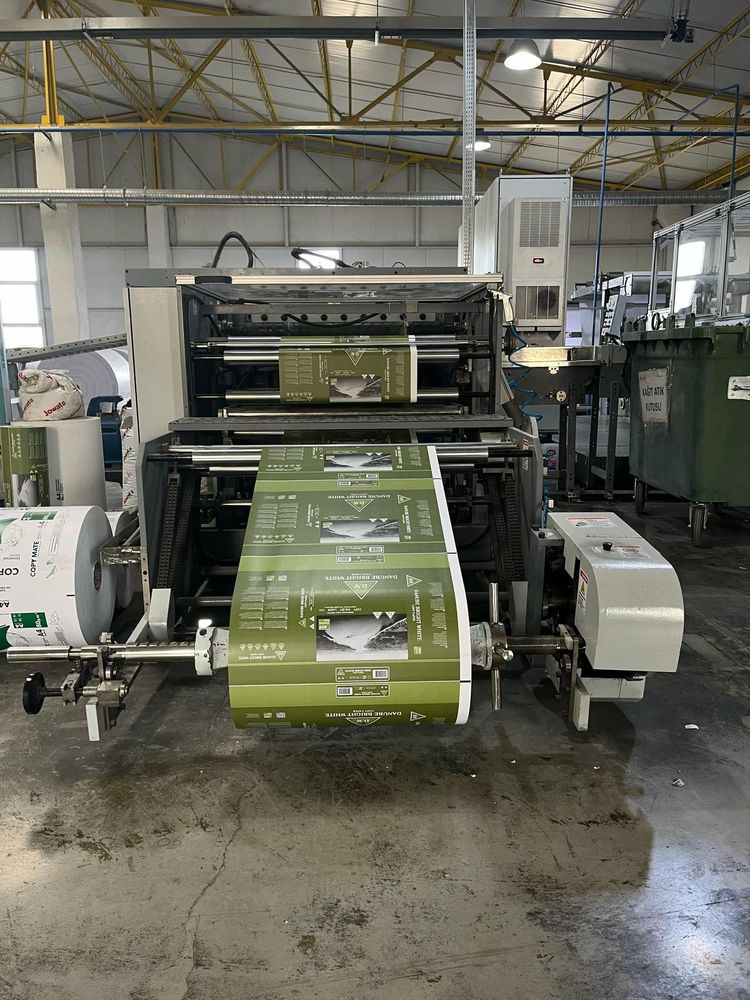

wrapping paper from roll dia. 800 mm, typical 80 - 120 gsm

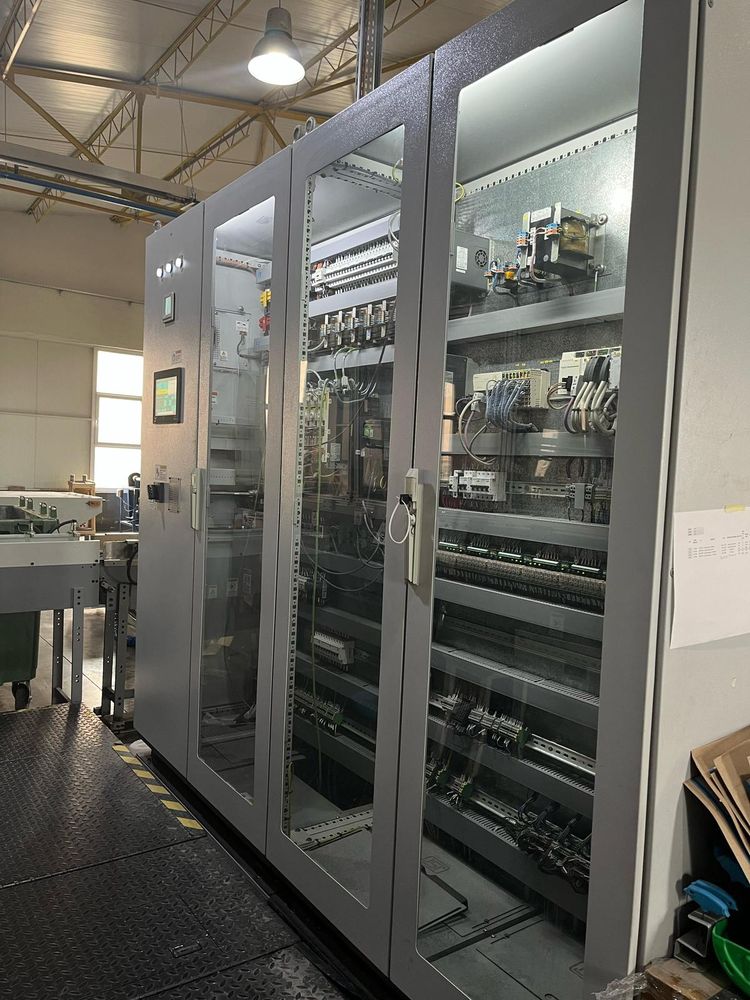

Power specification: 415 v ± 10% 50 Hz, 3 Phase, connected load up to 42 kW
Recommended floor space: 20 x 13 x 5.5 (meters)
