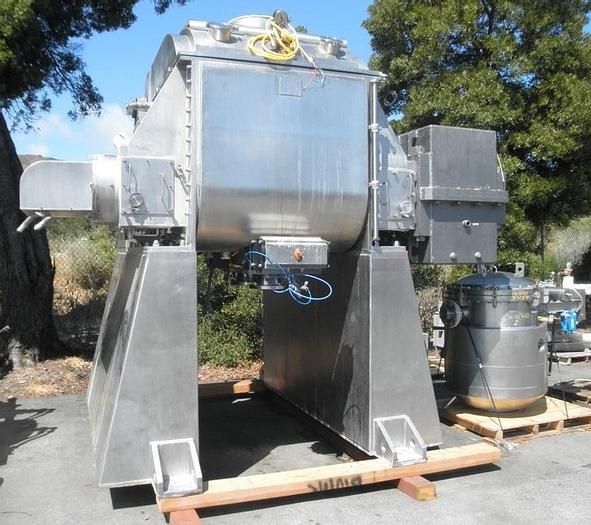

Aaron MBG200-125

200 Gallon Aaron Process Vacuum Drying Sigma Mixer with
Cored Shafts and Jacketed Trough
All stainless steel construction
200 gallon (26.74 cubic feet) capacity
All parts are insulated and sheathed with 304 Stainless steel and
polished to 150 - 180 grit finish.
Mixing/drying chamber includes vacuum cover and is jacketed, rated for 200 PSI at
450 degrees Fahrenheit / negative 20 degrees Fahrenheit, ASME code constructed.
Mixing chamber measures 48" x 40" x 44" deep and includes (2)
6" diameter flanged discharges with ball valves.
Blades are Overlapping Double Nobben/Ribbon Blades and driven by
125 HP motor thru heavy duty gearbox, 160 Amps and 460 volts.
Previously used in clean room type environment.
Control panel and unitized on heavy duty frame.
Includes main control panel, power panel with starters and VFD's,
steam-to-water heat exchanger for heating of jacket and
hydraulic pump/reservoir for opening vessel lid.
Also includes top mounted, stainless steel Mikro
Pulsaire dust collector, Model 10-2-FV TR.
