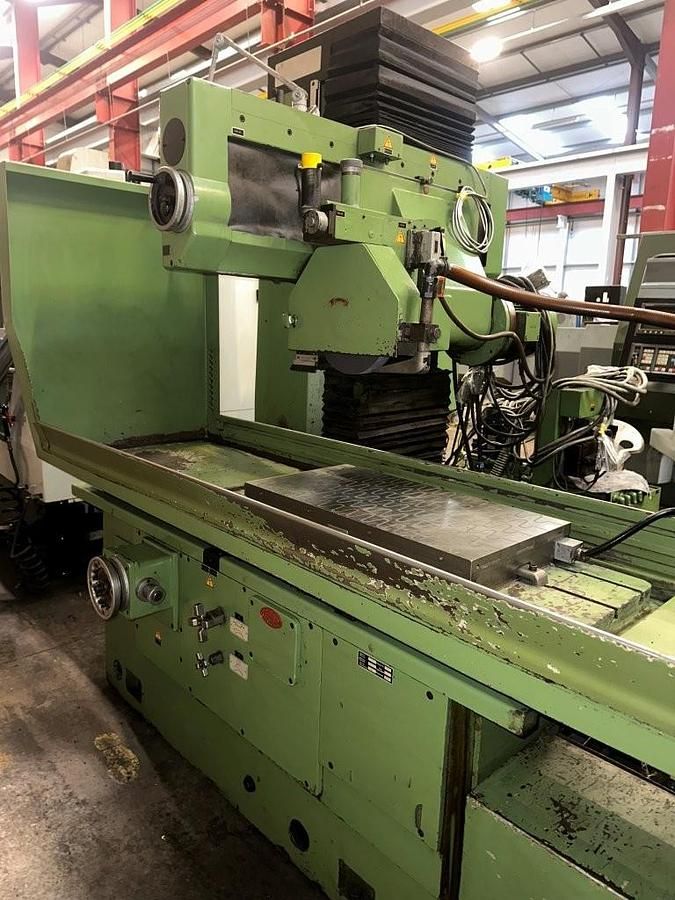

ABA 750/50 FFU

Longitudinal table travel: 800 mm
Cross feed travel (grinding head): 450 mm
Maximum grinding width: 500 mm
Maximum distance spindle center to table: 700 mm
Table size: 400 mm x 900 mm
Electromagnetic chuck size: 400 mm x 750 mm
Grinding wheel size (fitted): 50 mm width x 320 mm diameter
Maximum grinding wheel diameter: 350 mm
Spindle motor power: 7.5 kW
Machine weight: 3,750 kg

Features / equipment
Power rise and fall to grinding head
Automatic downfeed to wheel head
Automatic cross feed to wheel head
Variable table speed
Overhead wheel dresser
Coolant system with tank
Coolant pump
Pendant control station
