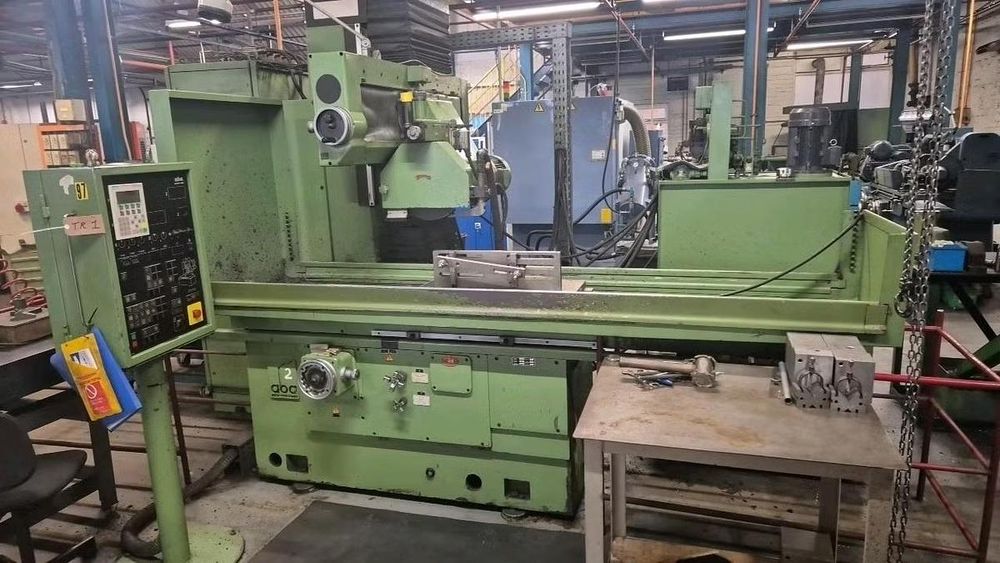

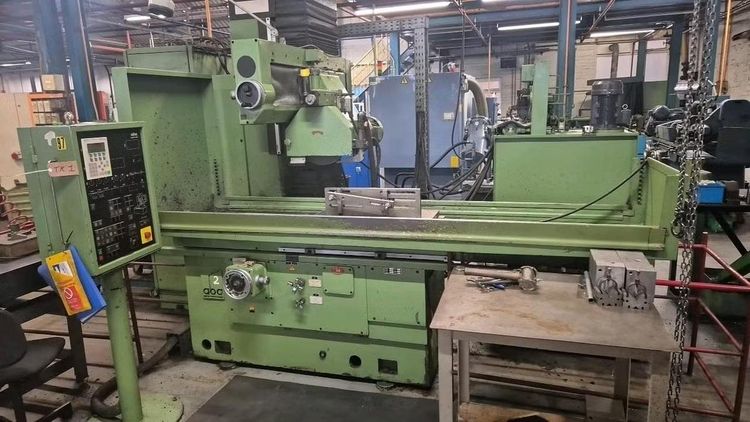

ABA 750/50
Ref :
2733667-3-GO
Condition :
Used
Manufacturer :
ABA
Model :
750/50
Year(s) :
1984
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max grinding length 750mm
Max grinding width 500mm
Transverse slide travel 450mm
Max workpiece height under wheel 500mm
Grinding wheel size Ø400 × 100mm
Grinding wheel speed 300–3000 RPM (infinitely adjustable)
Hydraulic table speed 0–30 m/min
Creep feed table speed 0.02–1000 mm/min
Vertical feed 0.002–0.03 mm per stroke (infinitely variable)
Spindle drive power 32kW
Electrical load approx. 50kW
Voltage 380V, 50Hz
Machine weight approx. 5000kg
High-torque spindle
Infinitely adjustable wheel and table speeds
Creep feed and hydraulic table movement
Heavy cast base for vibration damping
Built for longevity and consistent accuracy
