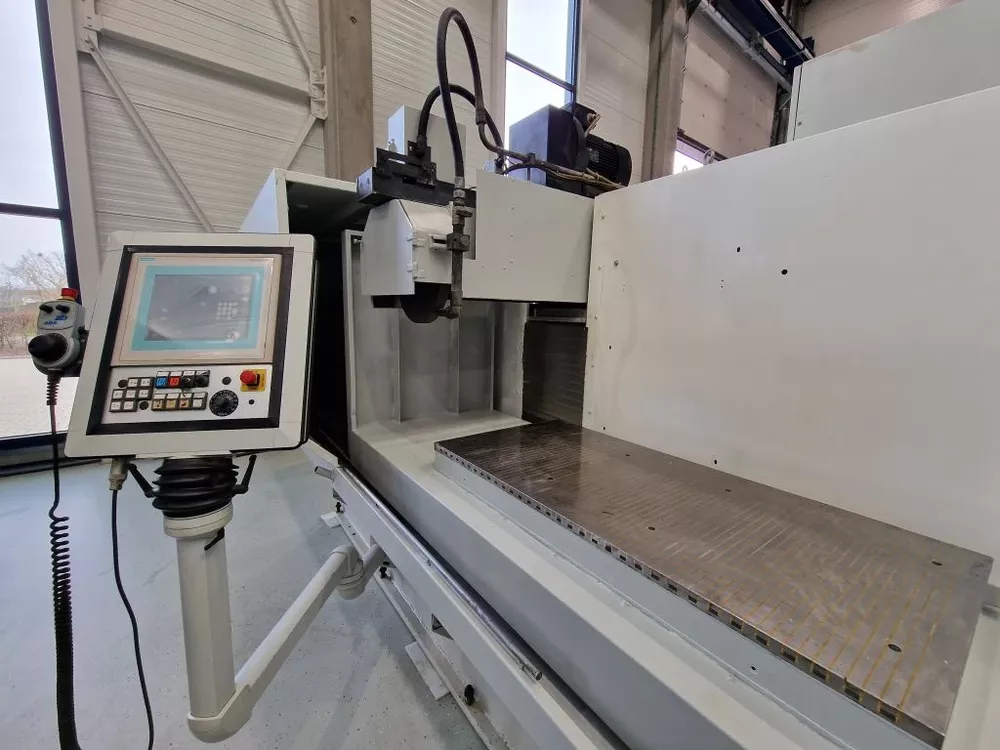

ABA ECOLINE 1206 A

ABA ECOLINE 1206 A
Retrofit 2008

Grinding length: 1250 mm
Grinding width: 600 mm
Maximum table load on magnetic chuck: 1200 kg
X-axis travel: 1400 mm
Y-axis travel: 600 mm
Z-axis travel: 600 mm
Distance between table and spindle center: 700 mm
Grinding wheel diameter: 400 mm
Grinding wheel width: 100 mm
Grinding wheel bore: 127 mm
X-axis drive: hydraulic
Y-axis drive: servo with ball screw
Z-axis drive: servo with ball screw
X-axis position measurement: rotary encoder
Y-axis position measurement: linear scale
Z-axis position measurement: linear scale
Control system: Siemens LC 200/TP 277
Machine weight: approximately 7.7 t
