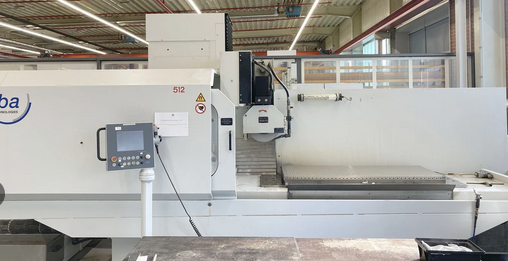

ABA MULTILINE 1507 A

X-axis travel 1500 mm
Z-axis travel 750 mm
Y-axis travel 900 mm
Control XpressCube
Table length 2000 mm
Table width 600 mm
Grinding length 1500 mm
Grinding width 600 mm
Maximum table load 2500 kg
Maximum distance table to spindle centerline 900 mm
Grinding wheel speed range 50–2500 rpm
Grinding wheel diameter 400 mm
Grinding wheel width 60 mm
Grinding wheel bore 127 mm
Grinding spindle motor power 26 kW
Total installed power 35 kW
Automatic longitudinal feed range 2000–35000 mm/min
Automatic cross feed range 5–5000 mm/min
Automatic vertical feed range 1–3000 mm/min
Operating voltage 400 V / 50 Hz / 3-phase
Machine length 6465 mm
Machine width 3770 mm
Machine height 3000 mm
Machine weight approx. 11000 kg
Paper filtration system
Magnetic plate 1500 mm
Magnetic plate 700 mm
Machine lamp
Electrical cabinet air conditioner
