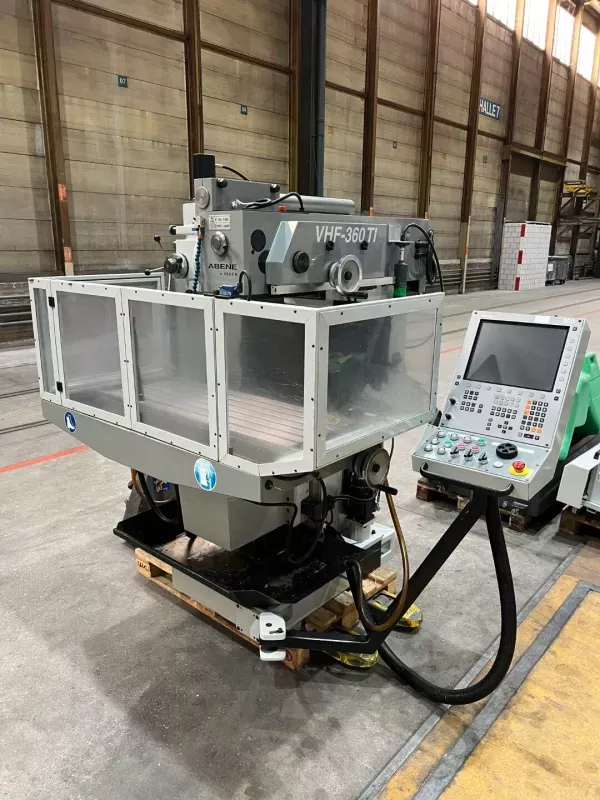

Abene VHF 360 TI Vertical 3000 rpm
Ref :
2751951-3-AW
Condition :
Used
Manufacturer :
Abene
Model :
VHF 360 TI
Type :
Vertical
Spindle Speed :
3000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table size: 1200 × 450 mm
X-axis travel: 650 mm
Y-axis travel: 510 mm
Z-axis travel: 475 mm
T-slots: 6 × 18 H7
Max. table load: 400 kg
Distance between T-slots: 65 mm
Distance spindle center to underside of counterholder: 160 mm
Longitudinal feed: 0–4000 mm/min
Cross feed: 0–4000 mm/min
Vertical feed: 0–1500 mm/min
Rapid traverse longitudinal: 4000 mm/min
Rapid traverse cross: 4000 mm/min
Rapid traverse vertical: 1500 mm/min
Spindle taper: ISO40 / DIN2079
Spindle speed range: 55–3000 rpm
Head swivel: 0–140°
Quill diameter: 90 mm
Quill feed: Manual
