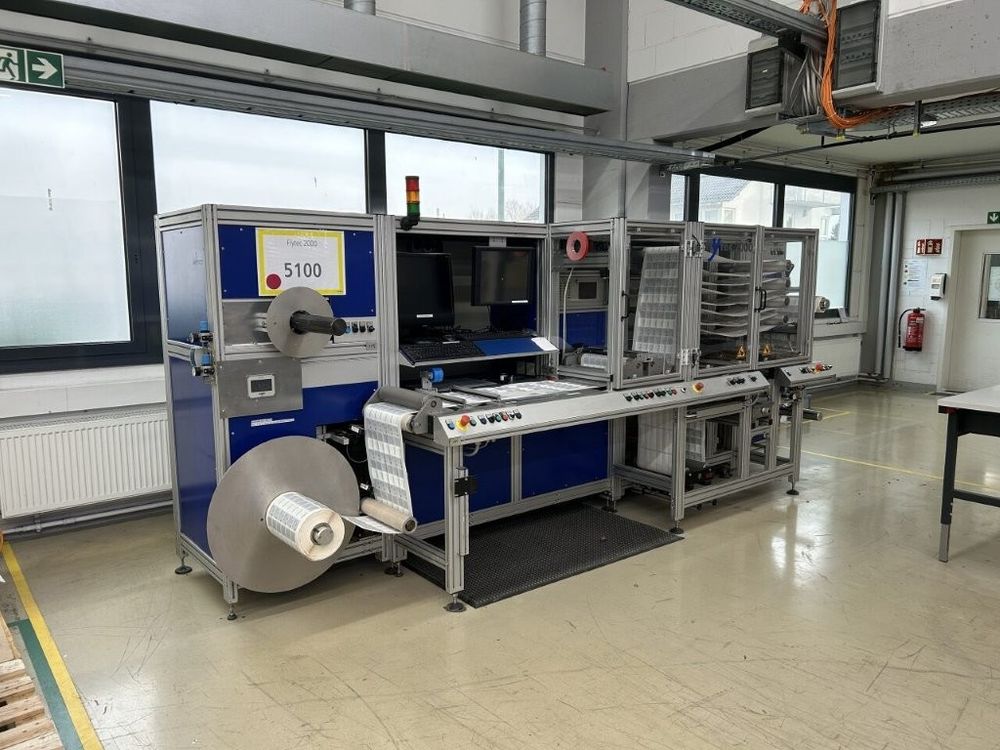

ABG FLYTEC 2000
EUROPE (Western and Northern)
Application: Roll-fed self-adhesive labels
The Flytec 2000 is designed for high-speed inspection, slitting and rewinding of label rolls and is equipped with integrated vision and inkjet technology.
Main Technical Specifications:
• Web width: max. 330 mm
• Max. web speed: 200 m/min
• Max. inspection speed: 150 m/min (100% inspection)
• Unwind roll diameter: max. 700 mm
• Rewind roll diameter: max. 500 mm
• Core diameter: 76 mm (pneumatic expanding shafts)
• Web tension control: 0.5 – 10 kg, continuously adjustable
• Electronic web guiding system (Fife with ultrasonic sensor)
Slitting & Finishing:
• Shear knife slitting unit
• 3 upper and lower knives included
• Fine adjustment in 0.05 mm increments
• Integrated edge trim extraction
• Pneumatic splice unit
• Integrated label and meter counter Inspection System fleyeVision print machine (100% inspection)
• Matrix camera (1380 x 1040 pixels)
• Flash illumination
• Detection of print defects such as missing print, register deviation, stains, missing labels, missing text, matrix waste Inkjet SystemImaje S8 Master 2.2G
• Two nozzles per printhead
• Suitable for marking up to 4 label lanes
• Fully integrated into central machine control
