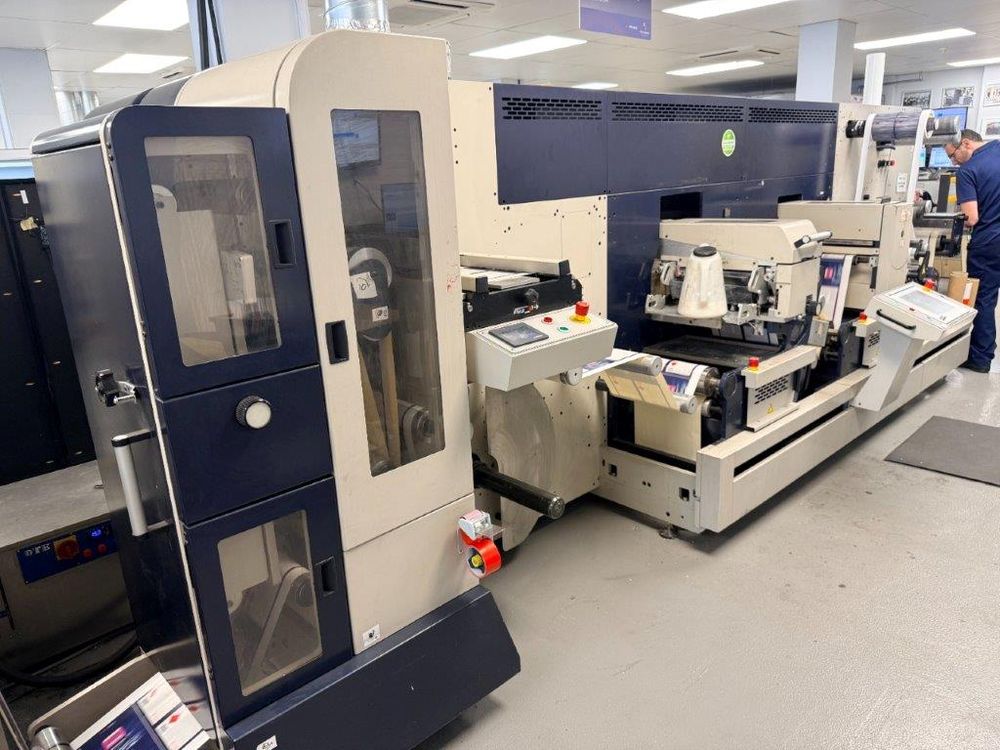

ABG, Screen Truepress Jet L 350 UV + Digicon S3 5 50,8 mm to 322 mm

First installed July 2014
State of the Art : UV Inkjet Technology
Colors : CMYK + White
Dimensions Print system : W 342 cm | D 207 cm | H 201 cm
Required floor space : W 5,40 m | D 4,80 m
Print-Technology : UV-Inkj et-Technology
Printhead : 4 step grayscale, droplet size minimum 3pl
Resolution : 600 x 600 dpi
Web Width100-350 mm
Printing Width : 50,8 mm to 322 mm
Repeat length : 50,8 mm to 2.400 mm
Media Thickness : 0,09-0,35 mm
Printing Speed : Up to 16,1 sqm/min | Up to 50 m/min

Description :
+++ Print Engine: Year of manufacture 2014
Printing Counter: 32,8 Mio. meters printed (status from May 2026)
Main Unit with 5 Colours (CMYK and White)
CMYK inkjet modules 50m/pm
White inkjet module 30m/pm
Unwind with web guide
Vetaphone Corona Treater
Teknek Web Cleaner +++ ABG Digicon S3: Year of manufacture 2014
In-line festoon for non-stop production with a digital press, Unwind for offline use
FMS electronic Web Guide with Ultrasonic Edge Sensor
Full-rotary Flexo Varnish Station
GEW UV Dryer
Hot Air Dryer for water-based varnish applications
Semi-rotary Die Station with re-regisstration
Electronic Dispro System
I-score Automatic
Back Scoring Unit
Waste Rewind with compactor roller
Rewind
Touch Screen HMI +++
