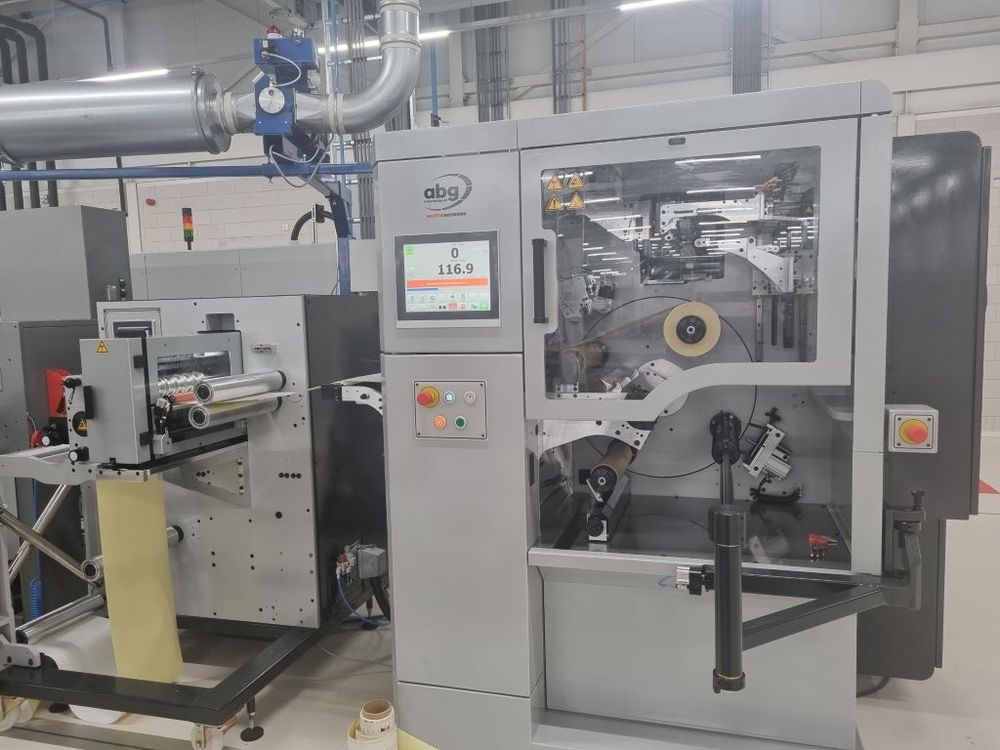

ABG SGTR Glue-Free Vectra 330 330 mm

Machine Configuration:
· 1x Stand-Alone Automatic Sheeting Unit
· 1x ABG SGTR Glue-Free Vectra 330, Year 2022

Key Technical Specifications:
· Web Width: 330 mm (13")
· Modules included:o L/A – Label Applicatoro S/U – Slitting Unito K/B – Knifeboxo R/S – Razor Slittingo T/B – Turn Baro W/G – Web Guideo A/S – Auto Slito Q/C/M – Quick Change Mandrels

Application & Customer Benefits:
This configuration is ideal for high-speed label finishing and in-line or off-line converting of self-adhesive label materials.
The SGTR Glue-Free Vectra system is specifically designed for:
· Efficient label rewinding without glue – ensuring clean, cost-effective and environmentally friendly roll handling
· Precise slitting of printed webs into multiple narrow rolls
· Sheeter functionality for labels or flexible packaging
· Quick changeovers thanks to modular design and quick-change mandrels
· Integration into digital or conventional printing lines

Customer Benefits:
· Reduced material waste and faster setup times
· No glue contamination, perfect for hygienic and pharmaceutical applications
· Versatile use for short and long runs
· User-friendly operation, robust construction and low maintenance needs
· Compact footprint with high productivity

Power & Air Requirements:
SGTR 330 Main Unit:· Electrical: 415 V, 3-phase + Neutral + Earth, 50 Hz, 25 Amps
· Air Supply: 5.5 bar (80 PSI), 113.3 LPM (4 CFM), dry and clean air
· Earth Leakage: >10 mA
· Air Hose: Ø8 mm
Slitting Unit:· Power: Supplied from SGTR
· Air Supply: 5.5 bar (80 PSI), 566.3 LPM (20 CFM), dry and clean air
· Earth Leakage: >10 mA
· Air Hose: Ø8 mm
Dimensions and Weight:· SGTR 330-4: 2225 x 2340 x 2150 mm (H) | 2,000 kg
· Slitting Unit: 1500 x 2030 x 1950 mm (H) | 900 kg
