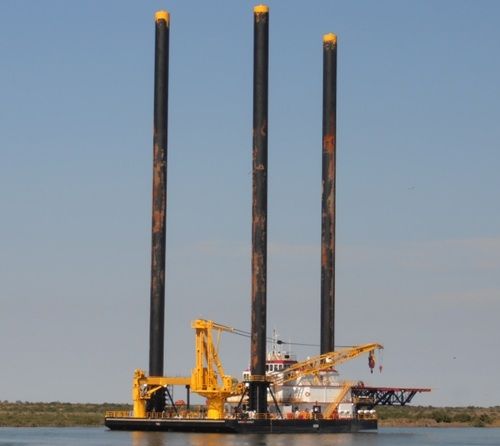

ABS Class Jack-Up Barge Deadweight: 2,051 mt

Vessel Type: Liftboat
Classification: ABS

Beam: 109.9 ft
Clear Deck Area: 6,388.4 sq ft
Maximum Working Depth: 200.13 ft
Maximum Separation: 244.09 ft

Hull Length: 226 ft
Barge Length: 145 ft
Hull Depth: 12 ft 6 in
Draft: 8 ft 10 in
Registered Tonnage: 199 t
International Tonnage: 1,799 t / 539 t

Number of Legs: 3
Leg Length: 265 ft
Leg Diameter: 105 in
Leg Wall Thickness: 1.25 in
Leg Tower Height: 21 ft 4 in
Leg Spacing Triangle: 88 ft x 104 ft

Pad Length: 40 ft 3 in
Pad Width: 21 ft 3 in
Pad Depth: 3 ft 8 in
Pad Loading: 5,200 lbs/ft²
Deck Loading: 450 lbs/ft²

Main Engines: 2 units
Main Engine Power: 1,000 BHP each
Bow Thruster: Yes

Port Crane Capacity: 200 t
Port Crane Boom Type: Lattice
Port Crane Boom Length: 120 ft
Starboard Crane Capacity: 55 t
Starboard Crane Boom Type: Telescoping
Starboard Crane Boom Length: 55 ft / 70 ft / 100 ft

Total Deck Area: 8,850 sq ft
Usable Deck Area: 6,388 sq ft
Maximum Deck Load: 1,100,000 lbs
Traveling Load: 350,000 lbs

Diesel Capacity: 20,400 USG
Potable Water Capacity: 23,400 USG

Total Accommodation Capacity: 45 persons
VIP Cabins: 2
Crew Cabins: 11
Contractor Cabins: 32
Heliport Capacity: 5 tons

Estimated Speed: 5.04 knots
Minimum Working Depth: 10 ft
Maximum Jacking Height: 5 ft
Maximum Sea State (Hard Bottom): 4 ft

Features / Equipment:
Jack-up lifting system
Bow thruster system
Pedestal port crane
Pedestal starboard crane
Fully equipped galley
Fully equipped lounge
Laundry facilities
Heliport
Accommodation facilities
