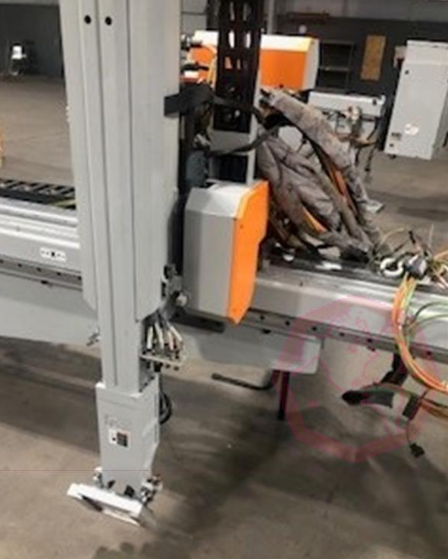

Absolute, ARI MaxCW25-2500 Robot

Size 1400 - 2400
Recommended Usage 1400 - 2400
Number of Axis 3
Rotational Wrist True
Inputs/Outputs 20
Pneumatic Option True
Voltage 460/3/60
X-Servo True
X-Stroke 1840 mm
Y-Servo True
Y-Stroke 2500 mm
Z-Servo True
Z-Stroke 4000 mm
• Riser/Adapter Plate
• 4 Vacuum Circuits
• 2 Gripper Circuits
• 20 Spare Input/Output signals
• Pneumatic “Flip” C-Axis
• 3-Axis Synchronized Movement
• Absolute Encoders (faster robot programming)
• Advanced Vibration Dampening
• Supervisory Safety Circuit (STO)
• Compact Floor Mounted Electrical Cabinet for Easy Maintenance
• Fully unlocked robot pendant
• Large Mold Storage Capacity
• Programs Stored in Cabinet, Not Pendant (data not lost if pendant damaged)
• 26 ft (8 m) Long Pendant Cable for Maneuverability While Programming
• Advanced Mold & Vertical Arm Protection
• Quick Change Universal Mounting Plate on Vertical Arm
• Flexible Orientation Swap for Operator or Non-Operator Part Discharge
• Euromap Adapter for Both 12 & 67 Molding Machines
• Telescoping Vertical Arm for Low Height Clearance
