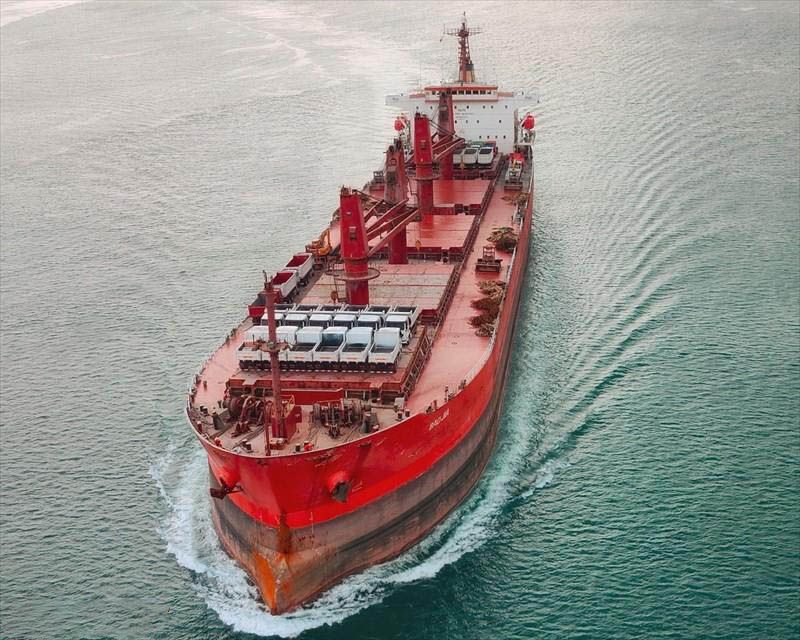

ABT 49,000 BULK CARRIER ABT 49,000

ABT 49,000 BULK CARRIER
1999

Vessel type: Bulk carrier
Flag: Liberia
Class: RINA
Length overall: 189.96 m
Length between perpendiculars: 181.00 m
Beam: 32.20 m
Depth: 16.50 m
Draft: 11.63 m
Deadweight: 48,900 tons
Gross tonnage: 28,073
Net tonnage: 16,065
Deck type: Single decker
Number of holds: 5
Number of hatches: 5
Hatch cover type: Hydraulic folding
Grain capacity total: 61,553.20 m³
Bale capacity total: 59,844.30 m³
Hold 1 grain/bale: 11,330.10 / 11,038.00 m³
Hold 2 grain/bale: 12,788.30 / 12,438.00 m³
Hold 3 grain/bale: 12,801.30 / 12,415.00 m³
Hold 4 grain/bale: 13,168.70 / 12,814.90 m³
Hold 5 grain/bale: 11,464.80 / 11,138.40 m³
Hatch 1 dimensions: 17.60 × 17.00 m
Hatch 2–5 dimensions: 20.00 × 17.00 m
Cranes: 4 × 25 MT SWL electro-hydraulic
Tank top strength hold 1: 19.94 MT/m²
Tank top strength hold 2 & 4: 13.92 MT/m²
Tank top strength hold 3: 24.36 MT/m²
Tank top strength hold 5: 19.79 MT/m²
TPC at full summer draft: 54.48
Main engine: Sulzer 6RTA48T 7,700 kW @ 177 RPM × 1
Service speed: About 12 knots on about 22–24 MT B/L HSFO 380 CST + 0.10 MT LSGO
ECO speed: About 11 knots on about 21–23 MT B/L HSFO 380 CST + 0.10 MT LSGO
Idle port consumption: About 2.5 MT HSFO 380 CST + 0.10 MT LSGO
Working port consumption: About 3.75 MT HSFO 380 CST + 0.10 MT LSGO
Ballast water treatment system: Fitted
