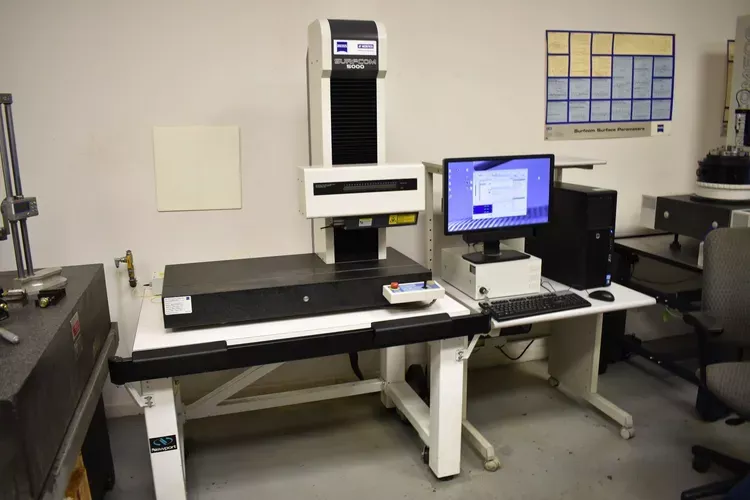

Accretech A-WD-200T

Machine type SURFCOM 5000 DX
Software Acctee 5.16.4.0
PC HP210 Windows 7
Joystick controlled column 500 mm on granite base
Linear motor digital tracing driver 200 mm
Dual beam laser interferometer pickup 13 mm @1X
Dual beam laser interferometer pickup 26 mm @2X
Resolution X-axis 0.54 Å
Resolution Z-axis 0.31 Å
Accuracy X-axis +/- 0.4 μm/200 mm
Accuracy Z-axis +/- 0.206 μm/12 mm
Surface finish / contour analysis software ACCTeePro
Contour analysis & coordinate control features
Surface texture multi-parameter analysis for roughness, waviness, profile
Teaching / playback function
ASCII output file
Nominal tolerancing profile nominal analysis with best-fit (CAD DXF/IGES IO)
Custom reporting & layout DTP
Interface unit with connection cables for surface finish / contour
Calibration set for contour (gage blocks, master sphere calibrator unit)
Calibration Ra specimen for surface finish (E-MC-S24B)
Instruction manuals English
Entry computer system HP Z200 Workstation
CPU Intel Core i3-540 3.06 GHz 4 MB/1333 DC
Graphics ATI FirePro V3800 512 MB
RAM HP 4 GB (2x2 GB) DDR3-1333 ECC
Storage HP 320 GB SATA 7200 1st HDD
NIC Intel Pro 1000 CT GbE
Keyboard & mouse HP USB standard keyboard & laser scroll mouse
