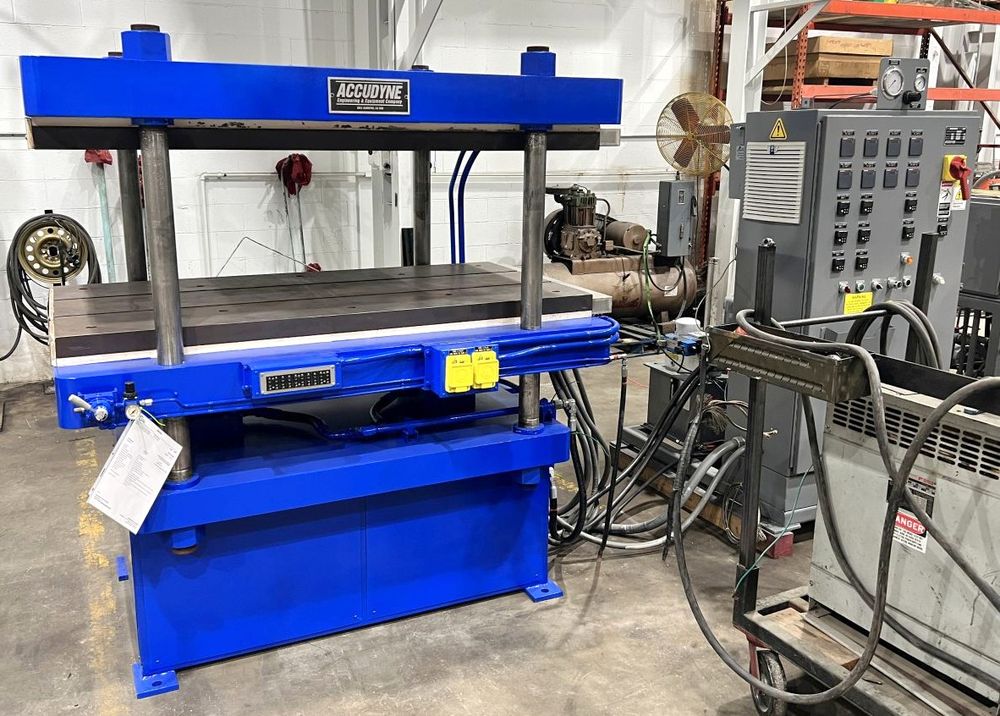

Accudyne Custom Press 100 Ton

Stroke 20 in
Maximum daylight 21.5 in
Bed area 72 in x 36 in heated platens
Overall bed / ram area 72 in x 47 in
Distance between posts 45 in x 39 in
Usable bed area 45 in x 47 in or 72 in x 39 in
Heated platens 72 in x 36 in
Cylinder size (2) 7 in bore
Ram rod size (2) 4.5 in diameter
Four column/post size 3 in diameter
Floor to bed height 47 in (approx.)
Hydraulic unit dimensions 40 in x 53 in x 80 in high (approx.)
Press dimensions 83 in x 66 in x 84 in high (approx.)
Approximate weight 22,000 lbs
Control system Allen-Bradley MicroLogix 1400 controller
Platen zones 12
Motor power 5 HP
Motor voltage 190/230/380/460 V
Motor current 15.2 / 13 / 7.6 / 6.5 A
Electrical full load 100 A
