Accura Apex 140
Ref :
2777221-4-MT
Condition :
Used
Manufacturer :
Accura
Model :
Apex 140
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Comprising of:

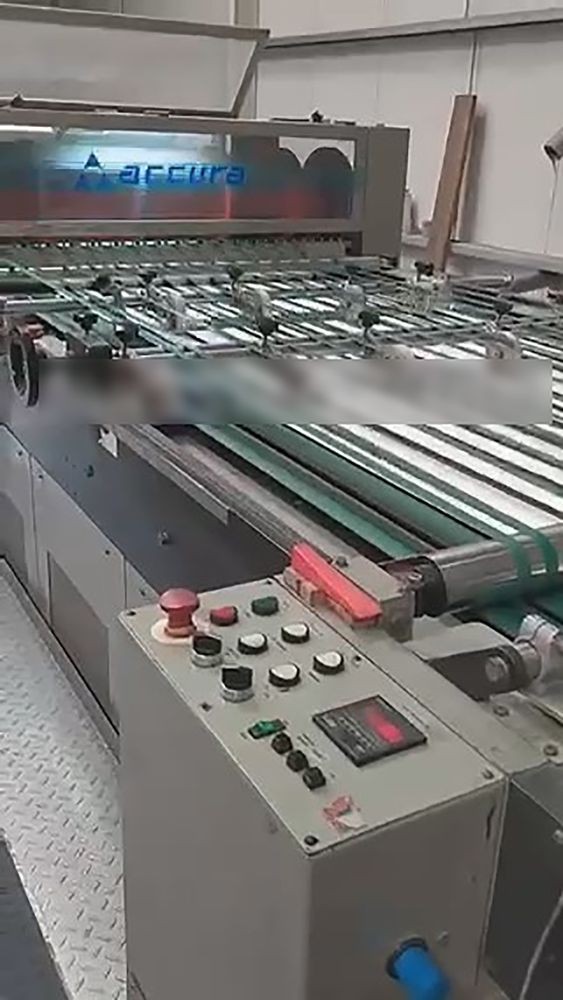

High Speed Sheeting Machine
Model of cutting Paper : The up knife is rotary and the down knife is fixed .
Unwinder rolls : 4
Maximum reel diameter: Using Reelmaster 2-Roll Shaftless 165 cm (65″)
Maximum web width: Using Reelmaster 4-Roll Shaftless 140 cm (55″)
Maximum linear speed: Cutting 1 roll of 200 GSM board 250 m/min.
Maximum cut frequency: Cutting 1 roll of 200 GSM board 400 cuts/min.
Maximum knife load => 45-500 GSM
Sheet length range 40-140cm (16″-55″)
Maximum gross pile height 150 cm (60″)
Maximum gross pile weight 1500
Electrical power load 21 kW
Electrical power supply 220/380 Volts
Approximate dimensions : 18000mm x 4000mm
Gross weight : 11.000kgs
