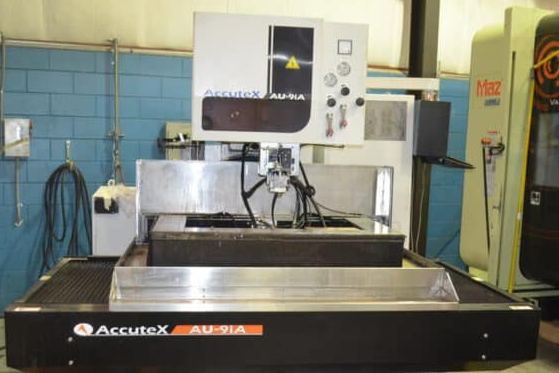

Accutex Au-9i Table Flushing-Type Wire EDM

X-Axis Travel 35.4 in
Y-Axis Travel 23.6 in
Z-Axis Travel 11.8 in
U-Axis Travel 3.9 in
V-Axis Travel 3.9 in
Table Feed Rate 40.0 IPM
Max Taper Angle ±45°
Max Workpiece XYZ 54.2 × 29.9 × 11.6 in
Max Workpiece Weight 4,890 lbs
Wire Diameter 0.006 – 0.013 in
Wire Spool Feed Rate 60 – 787 IPM
Wire Tension 300 – 2,200 grams
Start Hole Diameter 0.020 in
Max Wire Spool Weight 35 lbs
Positioning Accuracy ±0.00012 in
Repeatability XY ±0.00008 in
Total Power Required 15 KVA
Deionized Resin Tank 935 0.4 cu/ft Fiberglass Bottle
Tank Capacity 100 gallons
Floor Space 128 × 126 × 90 in
CNC Control Device 64-Bit Windows Based CE PC
Machine Weight 11,880 lbs

Features/Options/Equipment:
64-Bit Windows Control
Jumbo Wire Feeder
Purchased and Installed New in 2022
