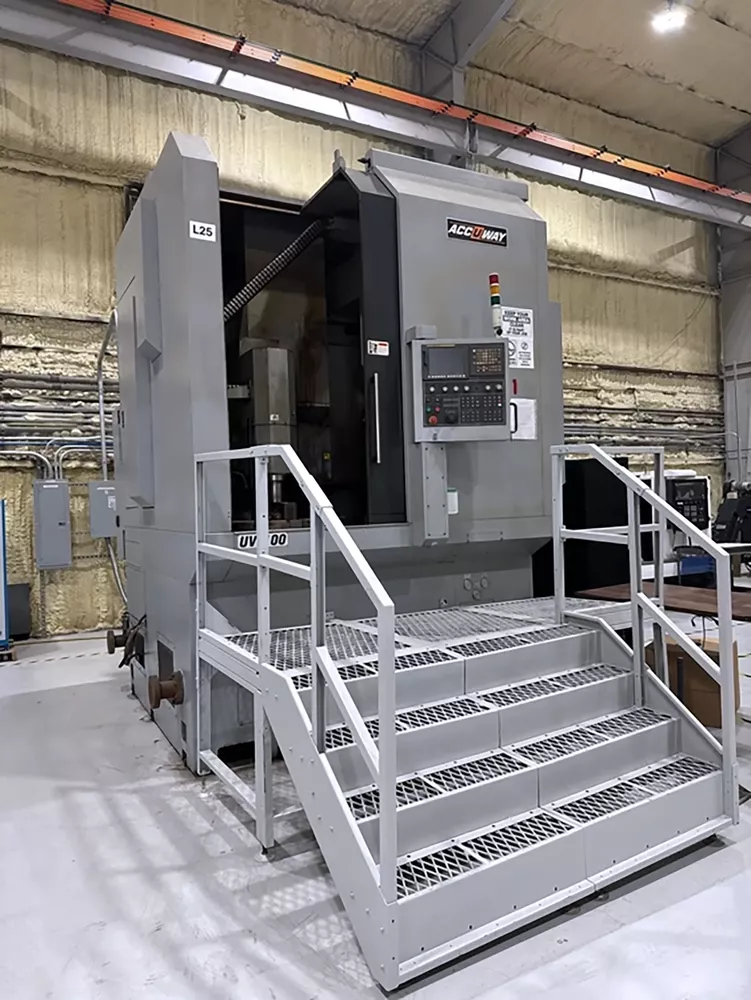

Accuway UV 100 Maximum turning diameter 39.37″

Ref : 2739889-3-MT

Condition : Used

Manufacturer : -

Model : Accuway UV 100

Short Description : Maximum turning diameter 39.37″

Year(s) : 2013

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X axis travel 30.11″
Z axis travel 31.49″
Control Fanuc Oi-TD
Swing over bed 43.30″
Maximum turning diameter 39.37″
Maximum turning length 27.55″
Spindle speed 1200 rpm
Spindle taper BT50
Spindle nose A2-15
Chuck diameter 40″
Turret 12 stations
Machine weight 37,500 lbs
Fanuc Oi-TD control
Auto Strong V-240 40″ 3-jaw chuck
Live tool
12 position ATC
Stainless steel way covers
RJ-45 interface
Heat exchanger for electric cabinet
10.4" colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
Hydraulic chuck and cylinder
Single chain type chip conveyor + chip cart
Tool kit
