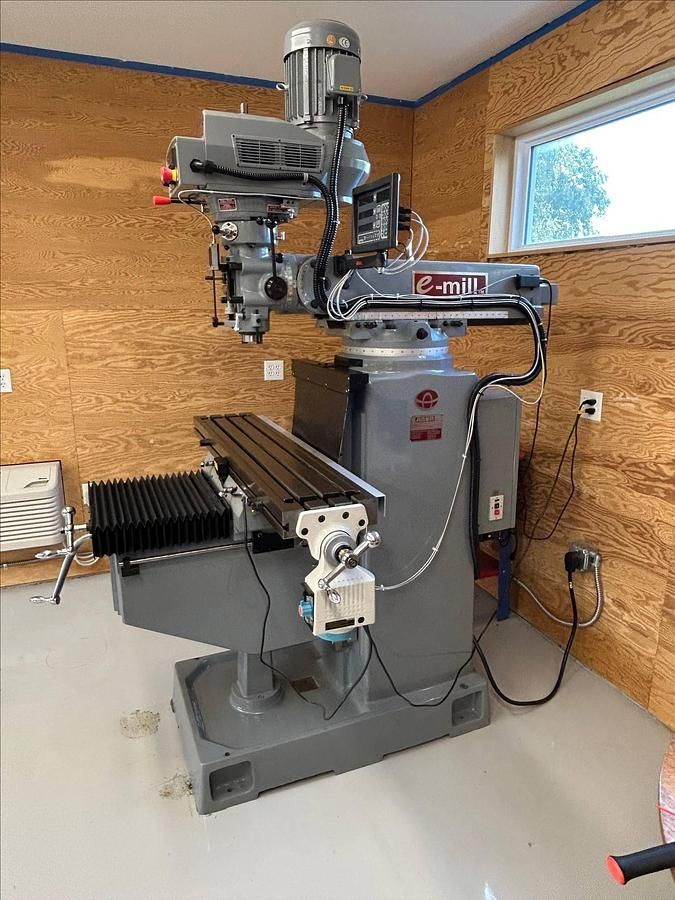

Acer 3VKH Vertical Knee Mill 3VKH 4,500 RPM

X-axis travel 32.5"
Y-axis travel 17"
Z-axis travel 19"
Ram travel 20"
Table size 10" x 50"
T-slots 3 @ 5/8"
Spindle speeds 60-4,500 RPM
Spindle taper R-8
Quill diameter 3-3/8"
Quill travel 5"
Power quill feed 0.0015", 0.003", 0.006"
Main motor 3 HP
Head tilt left-right 90 degrees
Head tilt front-back 45 degrees
Spindle drive Variable
Approximate weight 3,300 LBS
Newall 3-axis DRO
NST#30 taper spindle
Ball screw upgrade on X & Y axis
(2) draw bars
Starrett dial indicator
Starrett spindle square #649-5
SPI precision parallel bars (4 pairs)
NOGA magnetic holding system
MARITOOL BT30 APU13 precision drill chuck with wrench
MARITOOL BT30 20-piece E collet set
MARITOOL BT30 ER32-52 collet chuck tool holder
MARITOOL ER32 collet wrench
Orange OV-100-102 6” x 17.5” single station vise
Numerous cutting tools
3 HP spindle inverter motor
Toshiba inverter control variable speeds
Allen-Bradley electrical components
Precision grinding head housing
Electric brake
Precision spindle with ABEC-7 bearings
Chrome plated and precision ground spindle quill
Precision X,Y axes and knee by hardened & ground square ways to HRC 52
Rigid meehanite GA-50 casting
One-shot lubrication
