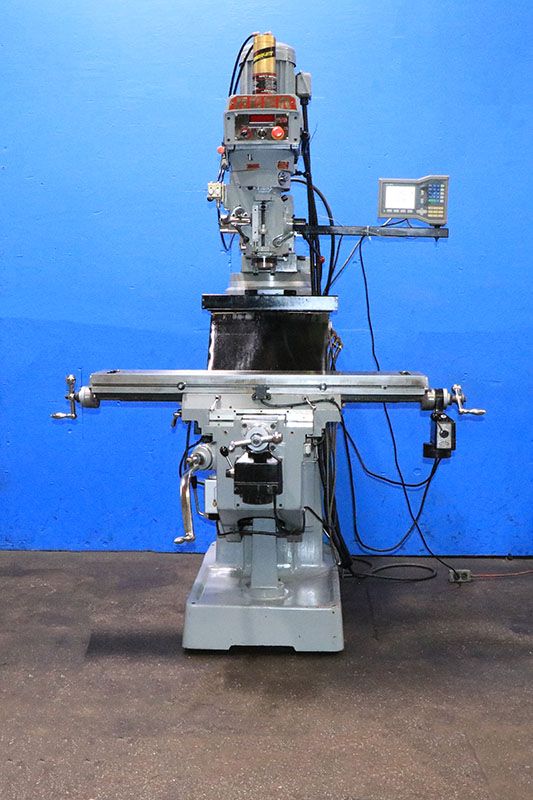

Acer 5VK Vertical 3750 rpm

Table working surface: 10" × 50"
Number of T-slots: 3 (5/8")
Longitudinal travel (X axis, manual): 32.5"
Cross travel (Y axis): 16"
Vertical knee travel: 19"
Quill travel (Z axis): 5"
Ram travel: 20"
Head tilt left/right: 90 degrees
Turret rotation: 360 degrees
Distance spindle nose to table top: 2" – 18"
Quill diameter: 3-3/8"
Quill feed rates: 0.0015, 0.003, 0.006 ipr
Spindle speed range: 0 – 3750 rpm
Spindle taper: #40 NST
Maximum collet capacity: 3/4"
Spindle drive motor power: 5 HP
AC frequency inverter spindle drive
Two-axis digital readout system
Servo power feed longitudinal table travel
Servo power feed cross saddle travel
Torque-Rite air actuated power draw bar
Hardened and ground box ways for X and Y axes
Meehanite casting construction
One-shot lubrication system
Approximate dimensions: 79" × 74" × 90"
Approximate weight: 3500 lbs
