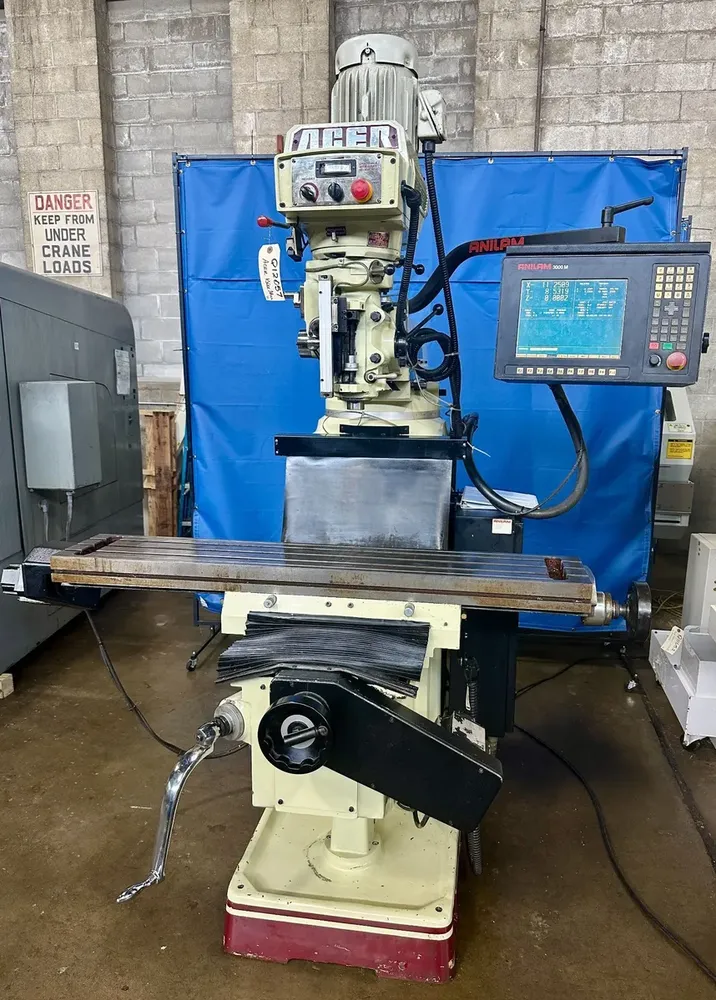

Acer EVS-3VKH-54 CNC Knee Mill Variable

X Axis Travel: 34"
Y Axis Travel: 17"
W Axis Travel (Knee): 19"
Z Axis Travel (Quill): 5"
Ram Travel: 20"

Anilam 3000M 2-Axis CNC Control
Scale Feedback on Quill

Table Size: 50" x 10"
Max Workpiece Weight: 850 lbs

Spindle Taper: R-8
Spindle Speed: 60 – 4,500 RPM
Drive Type: Variable Speed Spindle
Quill Feeds: 0.0015 – 0.006 in/rev
Spindle Power: 3 HP

Head Movement (Right to Left): ±90°
Head Tilt (Front to Back): ±45°

Electrics: 220/3/60
Dimensions: 70" x 66" x 95"
Machine Weight: 3,300 lbs
