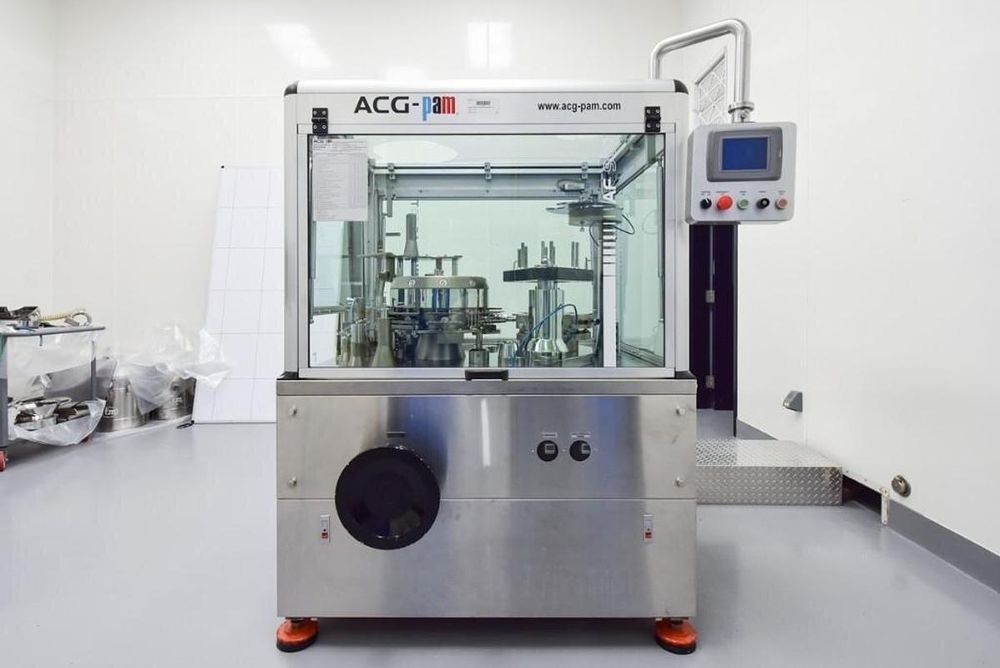

ACG-PAM AF-90T Encapsulation Machine

Volts: 415
Hertz: 50
Phase: 3
Overall Dimensions: 1650mm x 1290mm x 2050mm
Weight: 2350 kgs

Product Description: The AF-90T is a fully automatic capsule
filling machine that can fill a large variety
of powder formulations into hard gelatin capsules.

Product Specifications:
Main Motor: 1.5 kW ( 2 HP) at 1440 rpm.
Vacuum Required (Capsule separation): 1100 LPM at 26° of mercury.
Vacuum Required (Cleaning): 2800 LPM at 4° of mercury
Compressed Air: 300 LPM at 6kg/cm2

Output:
Up to 90,000 capsules/ hour for power filling
Up to 80,000 capsules/ hour for pellet filling
Up to 50,000 capsules for Tablet filling (Single tablet)

Products:
Powders
Pellets
Micro Tablets

Combination Filings Tooling sizes “0”, “0L”, “00”, “1” come with machine No polisher or metal detector Comes with Operations manual

Volts 415
Hertz 50
Phase 3
Weight 2350 kgs
Compressed Air 300 LPM at 6kg/cm2
