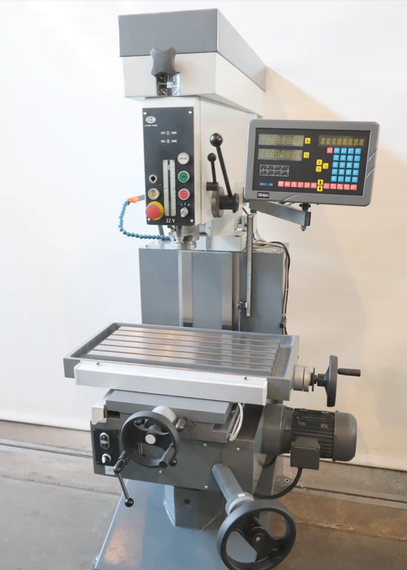

Aciera 22 V 3600 rpm
Ref :
2809347-3-CP
Condition :
Used
Manufacturer :
Aciera
Model :
22 V
Spindle Speed :
3600 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Drilling capacity (steel): 22 mm
Drilling capacity (cast iron): 24 mm
Axis travel X: 330 mm
Axis travel Y: 210 mm
Axis travel Z: 350 mm
Table size: 700 × 370 mm
Clamping surface: 580 × 280 mm
Throat depth: 300 mm
Spindle stroke: 120 mm
Spindle head adjustment: 300 mm
Spindle speed: 275–3600 rpm
Spindle motor: 2 CV
2-axis digital readout
Quick-change device
Motorized table adjustment
Coolant preparation
Work light
Electrical: 380 V, 50 Hz, 3-phase
Machine dimensions: 1100 × 600 × 2100 mm
Machine weight: approx. 990 kg
