1/1
Aciera F 3 2500 rpm
Ref :
2154982-3-MT
Condition :
Used
Manufacturer :
Aciera
Model :
F 3
Spindle Speed :
2500 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
17 Dec. 2023

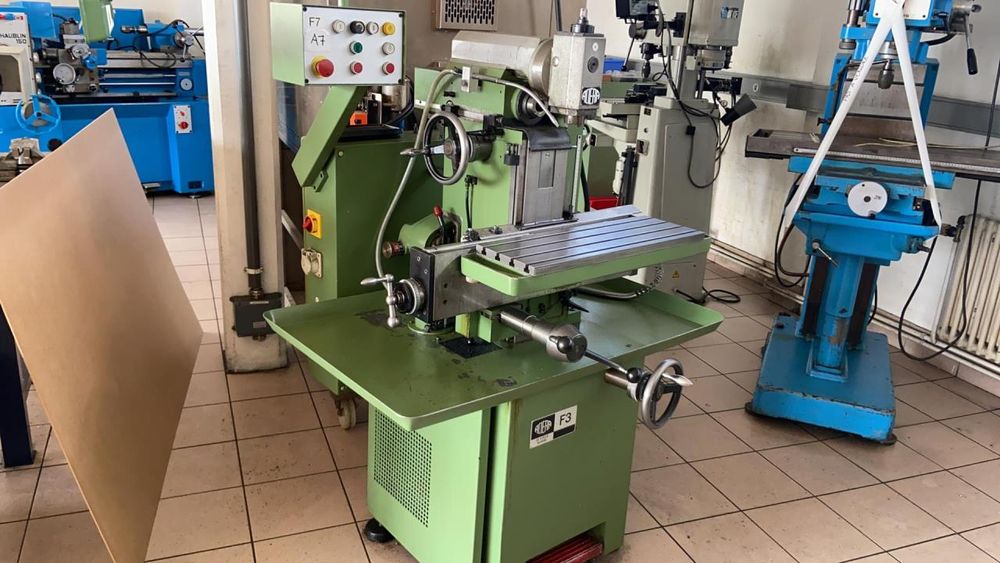

Universal milling machine
ACIERA F 3
Table length
600 mm
Table width
190 mm
Longitudinal travel (X-axis)
300 mm
Transversal travel (y axis)
135 mm
Vertical travel (z axis)
300 mm
Spindle speeds:
number (steps)
8
from
125 rpm
up to
2500 rpm
Taper in spindle CN
40
Feeds steps:
8
longitudinal from
12.0 mm/min
up to
232 mm/min
Voltage 50 Hz 3x
380 Volt
Motor output
2.0 HP
Machine's weight about
620 kg
Overall dimensions machine:
Length
1100 mm
Width
900 mm
Height
1600 mm
