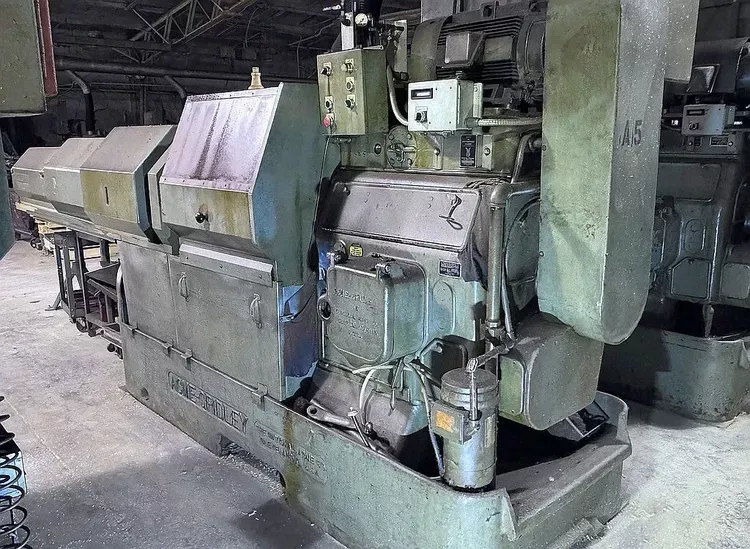

Acme Gridley 1-1/4" RA

ACME GRIDLEY 1-1/4" RA

MAXIMUM COLLET CAPACITY:
ROUND......................................................... 1 1/4"
SQUARE........................................................ 7/8"
HEXAGON....................................................... 1 3/32"
MAXIMUM LENGTH STANDARD:
STOCK FEED.................................................... 7
TURNING....................................................... 6
RANGE OF SPINDLE SPEEDS:
MINIMUM RPM................................................... 302
MAXIMUM RPM................................................... 2370
MOTOR HORSEPOWER.............................................. 20
RPM OF DRIVE PULLEY........................................... 1750
STANDARD THREADING SPEEDS COMPARED WITH WORK SPINDLE SPEEDS:
FAST RIGHT HAND (SLOWER THAN SPINDLE)......................... .353
SLOW RIGHT HAND (SLOWER THAN SPINDLE)......................... .233
LEFT HAND OR BACK OFF (FASTER THAN SPINDLE)................... .543
REAMING AND DIE SLIDE LEVER THROW RATIOS:
BOTTOM HOLE................................................... 2.5 TO 1
TOP HOLE...................................................... 1 TO 1
NET WEIGHT.................................................... 13,100
DIMENSIONS.................................................... 18'5" L X 3'7" W

Equipped with:
Telescopic Polymer bar feed cover
6 position gatling gun bar feed
Voltage: 230/460
