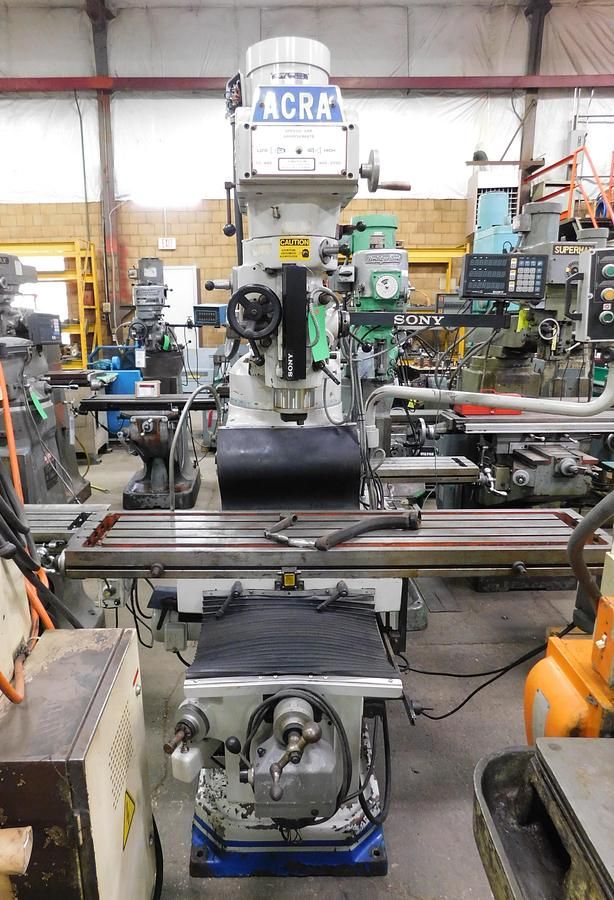

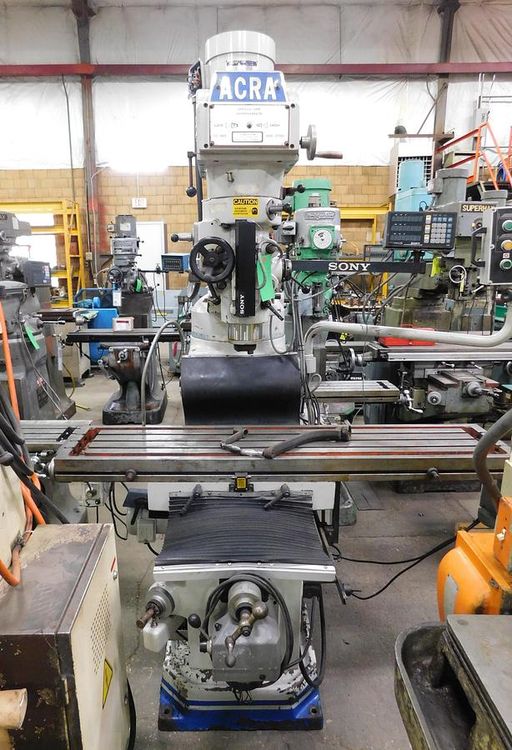

Acra AM5V Vertical 3750 RPM

Ref : 2793203-3-MT

Condition : Used

Manufacturer : Acra

Model : AM5V

Type : Vertical

Spindle Speed : 3750 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Table travel X 42"
Table travel Y 15-1/2"
Knee travel 16"
Sony 3 axis DRO
Automatic lubrication
Servo 150 power feed to X axis
Servo 150 power feed to Y axis
Integrated knee feed
Spindle taper CAT40
Spindle speeds 50–420 RPM
Spindle speeds 420–3750 RPM
Main motor 5 HP
Table size 12-1/2" x 58"
Quill feeds 0.0032
Quill feeds 0.0017
Quill feeds 0.0053
Machine dimensions 6' x 6' x 7'
Machine weight 4000 lbs
Hardened and ground square ways
