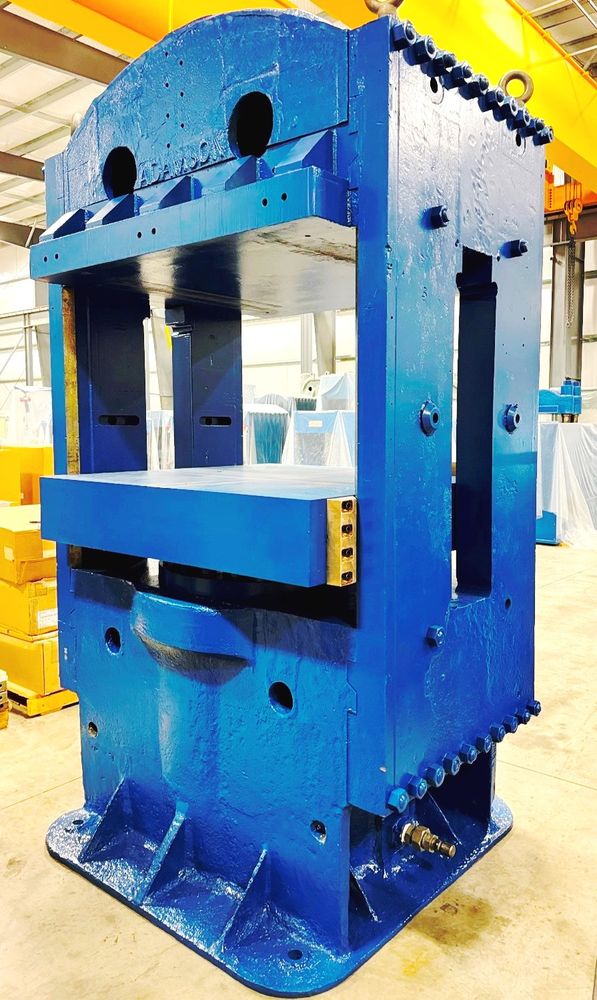

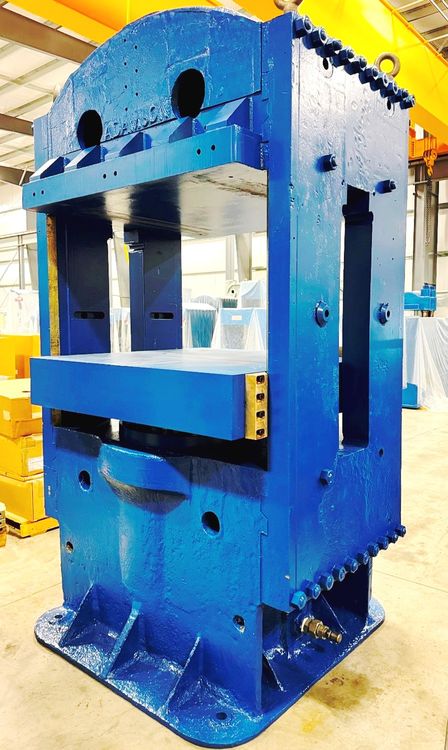

Adamson 56″x52″ Press

1000 Ton Compression Molding Press @ 2480 PSI
Heavy duty construction
32″ Ø ram
26”-28” stroke
5 ½” solid steel (slab) sides
57″ distance between sides
30 ¼” daylight without heating platens
56” l-r x 52” f-b x 10” solid steel bolster guided on all four corners
Steam platens are available separately upon request
57 ½” working height to top of bolster
Press has been rebuilt to new clearances
NEW seal has been installed
Press has been pressure tested for 2 days (16 hrs) @ 2500 PSI
Sandblasted, primed, and painted with anticorrosive blue paint
Overall Dimensions: 68″ l-r x 52 ¼” f-b x 118 ½” H (bare press as shown)
Rebuilt Rubber Compression Molding Presses
