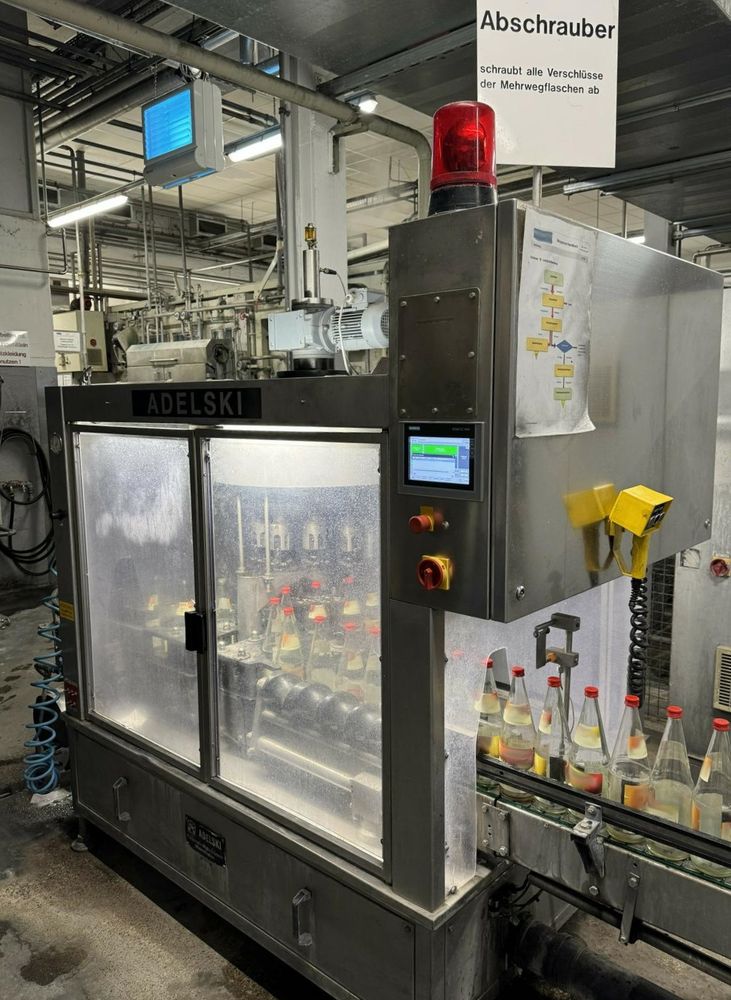

Adelski AEM 2010 Decapper

Direction of flow: right-to-left
Conveyor height: min. 740 mm
Output: 25,000 bottles/hour

Machine drive motor:

Bevel gear motor
2.2 kW
240/400 V
50 Hz

Height adjustment drive motor:

Worm gear motor
0.37 kW
240/400 V
50 Hz

Blower drive motor:

Three-phase motor
1.5 kW
240/400 V
50 Hz

Bottle dimensions

Bottle diameter:
max. 100 mm
min. 40 mm

Bottle height:
max. 350 mm
min. 150 mm

Pneumatic system:
Nominal size 4
Nominal pressure 6.3 bar

Pneumatic cylinders:
Belt tensioning: diameter 40
Column clamping: diameter 100

Extensive mechanical overhaul in 2022 (costing approx. €50,000)

Control system retrofit in 2022 (costing approx. €30,000), comprising:
Simatic
Software, power supply unit, CPU, CPU expansion module
Siemens S7-1200
SM1278 IO-Link
Simatic HMI TP900 Comfort 9" operator panel
Profinet interface
