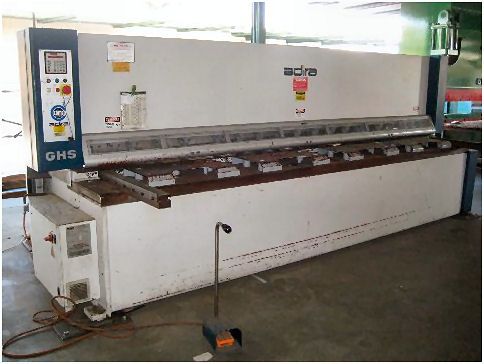

Adira GHS-0540,FOPBG

ADIRA GHS-0540,FOPBG
2004

CUTTING LENGTH ......................... 144"
CAPACITY, MILD STEEL.................... 1/4"
STAINLESS STEEL............... 3/16"
MINIMUM/MAXIMUM STROKE.................. 1.5"/3.6"
BLADE CLEARANCE, ADJUSTABLE............. .002" - .043"
RAKE ANGLE.............................. .28"
BLADE LENGTH............................ 122"
GAP..................................... 13"
NUMBER OF HOLDDOWNS..................... 16

EQUIPPED WIDTH:
40" CAPACITY FRONT OPERATED POWER BACK GUAGE
ADIRAMATIC PLC CONTROL OF BACK GUAGE
KEY LOCK SELECTOR SWITCH FOR OFF/MOTOR START/SINGLE STROKE/
CONTINUOUS STROKE, KNOB FOR INCREASING AND DECREASING STROKE
LENGTH, AND EMERGENCY STOP BUTTON
SHORT LEFT HAND SQUARING ARM
REMOTE ELECTRIC FOOT PEDAL CONTROL
MANUAL BLADE CLEARANCE ADJUSTMENT
FULL LENGTH FINGER GUARD
