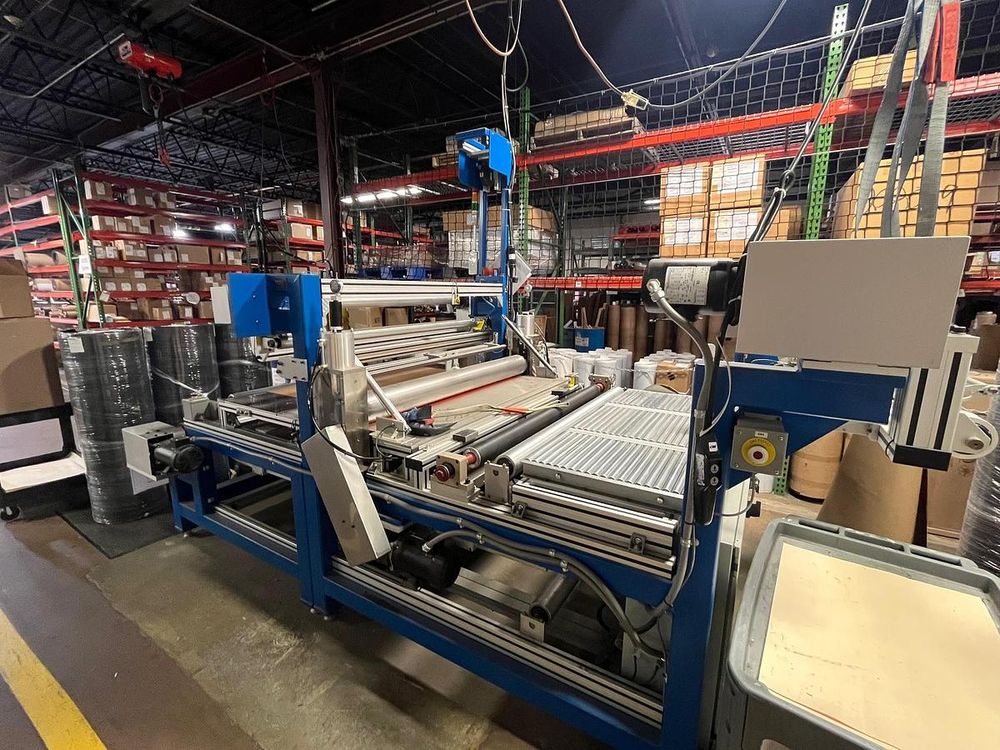

Advent PSA Laminator

60" Wide Pressure Sensitive Adhesive Laminator
This system was designed for laminating a variety of
pressure sensitive adhesives carried on release paper
onto substrates of plastic film, rubber, and foam.
Adhesive material and substrates are unwound from supply rolls,
guided into a set of adjustable laminating rolls,
and re-reeled on a take up roll.
Material can also be discharged onto a flat surface for
shorter cut to length products.

Key Features:
Dual unwinds with Adhesive & Substrate Air Shafts
Edge Guide Sensors for both adhesive and substrate for
precise alignment
Integrated HMI & Gage Display for real-time process monitoring
Cut guides for both adhesive and substrate

Specifications:
Can laminate material up to 60” wide
Overall dimensions are 11’ L x 7’ W x 9’ H
Additional specs on nameplate attached
Applications:
Multi-layer lamination of elastomers, foams, and films
PSA application with accurate edge alignment
Electrical: 208/120v (4w), 3 phase, 30 amps, 60 hertz
Air: 80-120 PSI @ 5 SCFM
Largest Motor: 1 hp
