AET 4.5″ 32:1 Pelletizing Line
AMERICA North (USA-Canada-Mexico)

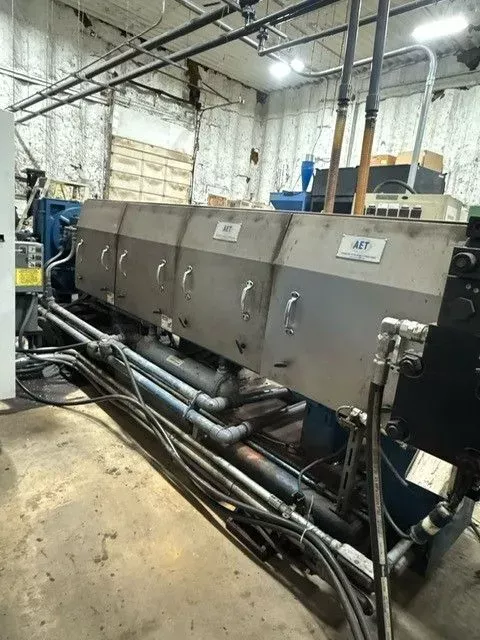

AET Model 45AS32 4.5″ 32:1 L/D Extruder having a
six (6) zone electrically heated, water cooled (closed loop),
and side vented barrel at a nominal 42″ centerline height.
The gearbox is direct driven out the back end by a
250 HP Marathon Blue Max motor with inverter.
The gearbox has a shaft mounted oil pump and heat exchanger.
The extruder has a water-cooled feed throat.
The free-standing temperature control panel has six (6) zones for
the barrel and three (3) zones of temperature controls for
downstream zones.
Inverter is mounted inside the control panel. 480/3/60 600 amps.
Manufactured 11-04-04.
Includes Nordson/Xaloy model EH-60 hydraulic slide plate screen changer
having two (2) nominal 6″ diameter breaker plates,
hydraulics, and accumulator.
Also includes Nordson/Xaloy model WRP-12I water ring pelletizing system.
