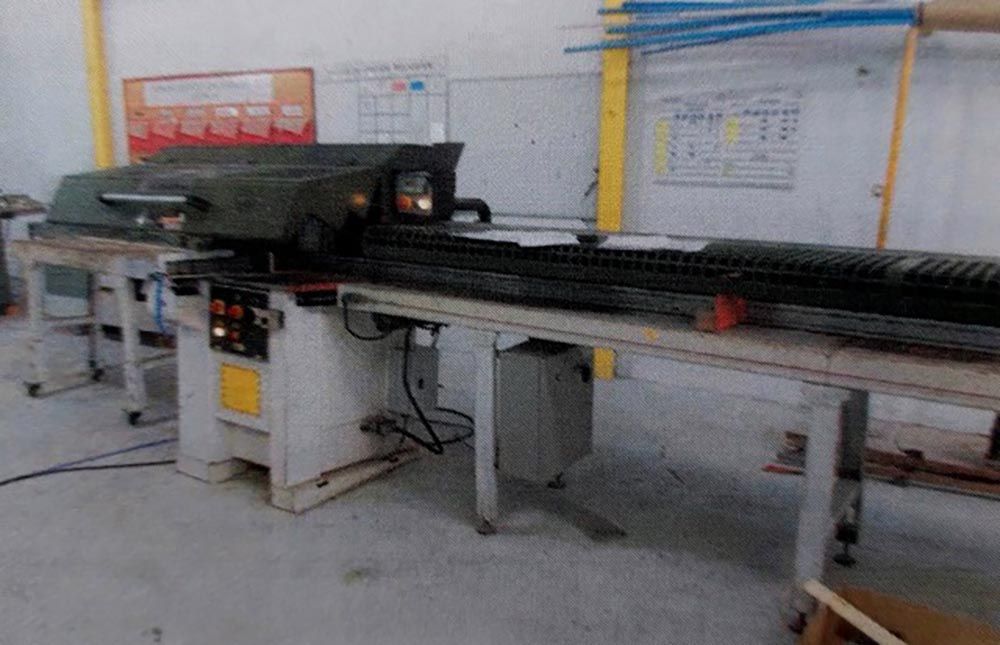

Agazzani T18 PNEUMATIC CIRCULAR CUT-OFF SAW

PNEUMATIC CIRCULAR CUT-OFF SAW WITH INLET & OUTLET TABLES, PUSHER-STOP, SCANNING FROM RIGHT TO LEFT

MAKING CAPACITIES:
- Indicative cross-sections (H-Thickness x Width) with maximum blade
25 x 465 / 50 x 425 / 75 x 380 / 100 x 320 / 125 x 235 / 145 x 110 mm
- Blade speed: 2800 rpm
- Pneumatic lift with adjustable speed (on 2 slides)
13.5 to 375 mm/sec

COMPOSITION OF THE SET:
Up-cut saw:
- Saw blade diameter 450 to 550 mm, bore diameter 30 mm
ideally 36/60/72 teeth, thickness 4.7 mm
- Table height (working height) 85 cm
Infeed tables with digital push-stop:
- Main table tilted, working length 4 m
Working width 35 cm
- Fence height 85 mm
Outfeed table, working length 2 m (on casters)
- Tilted table, working width 44 cm

OTHER FEATURES:
- Main power supply 400 V. Three-phase + E 50 Hz IN 19 A
- Saw motor power 5.5 kW (7.5 hp)
- Pneumatic supply 6-7 bar, consumption 230 Nl/min
- Suction: 2 x Ø 95 mm inlets for hoses
Recommended minimum flow rate 1000 m3/h, minimum speed 28 m/sec
- CE marked with original certificate
Enveloping casing, padlockable disconnect switch,
Emergency stop including cord, time-delay electric strikes for openings.
Apave inspection leading to additional compliance in 2016

Dimensions in working order: x x h. m
Transport dimensions (L x W x H):
Machine: 1.75 x 1.30 x H.1.55 m
Infeed table: 4.60 x 0.90 x H.1.60 m
Outfeed table: 2 x 0.70 x H.1.70 m
Estimated overall weight: 800 kg
Machine supplied with sharpened blade and documentation.
