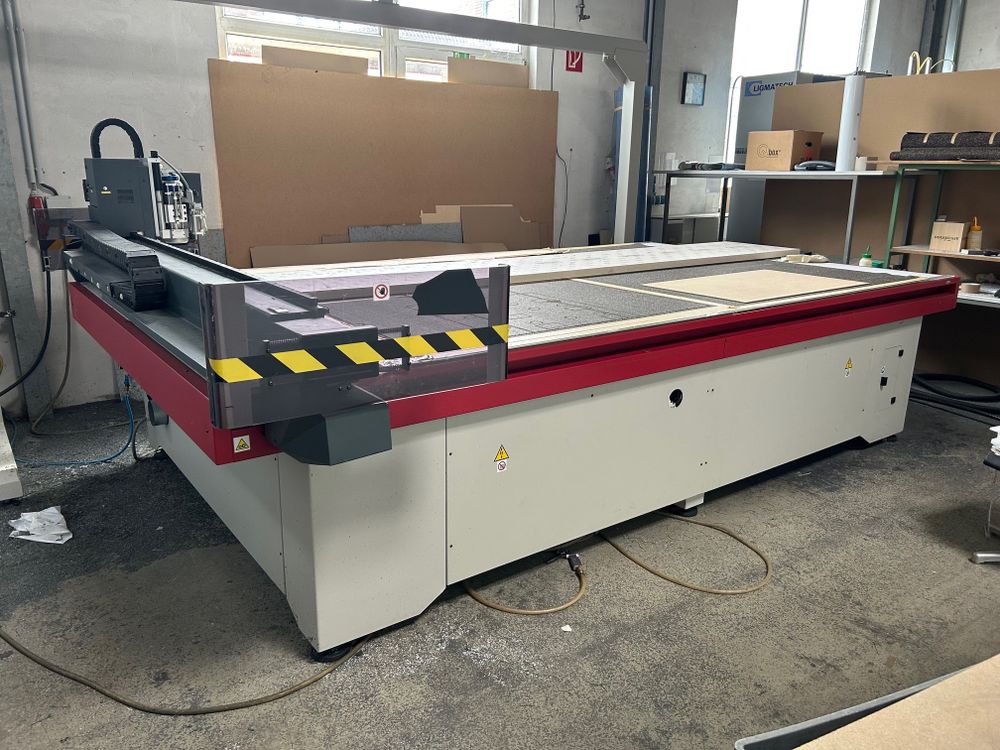

Agfa Acorta HS 3120 HS Cutting plotter

Used machine
Equipment and technical specifications:
automatic cutting plotter with suction sectors on the work surface
automatic cutting table with automatic recognition of print images and reference points
the work surface consists of 40 individual vacuum sectors, which are automatically activated if required
Multi-tool cutting head for cutting, grooves and milling materials up to 50 mm thickness
Multi-batch cutting possible to cut different substrates at the time
automatic tool presetting
Video projection system to optimize material yield
Cutting speed up to 102 m/min, acceleration 1.4 G
Automatic height detection of substrates
Working range 3100 x 2000 mm
Intake sectors in the work area: 40
Cutting speed up to 102 m/min

Tooling program:
Grooving tool, oscillating knife, router
Elitron CAD & CUT (Software) Elipack
