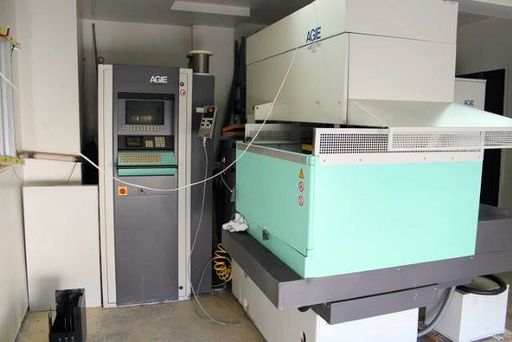

Agie 150HSS

AGIE 150HSS 
1998

X-axis travel: 32"
Y-axis travel: 22"
Z-axis travel: 10"
U-axis travel: 1.18"
V-axis travel: 1.18"

Clamping surface width: 22.15"
Clamping surface depth: 17.5"

Max submerged weight capacity: 440 lbs
Max non-submerged weight capacity: 1,210 lbs
Max taper angle: ±30° @ 0.28"

Wire diameter range (with full spool): 0.004"–0.013"
Approximate spool weight: 35 lbs
Resolution X/Y/U/V: 0.000039"
Resolution Z: 0.0002"
Approximate system weight: 6,270 lbs

Agiematic CF S CNC control
14" color CRT
Multitasking graphics
Flexible parameter memory (99 settings)
RS-232 interface
3.5" floppy disk
Agieplus HSS high-speed surface generator
Average work current: 45 A
Agiejet auto wire threading
Submersible & non-submersible machining
Filtration system with extra filters
Chiller
Transformer
Software manuals
Power on hours: 16,117
